2/8 CHANNEL AUDIO TRANSMITTER/RECEIVER
7
FTA-108S/ITX-108/ITX-102, FRA-108S/IRX-108/IRX-102

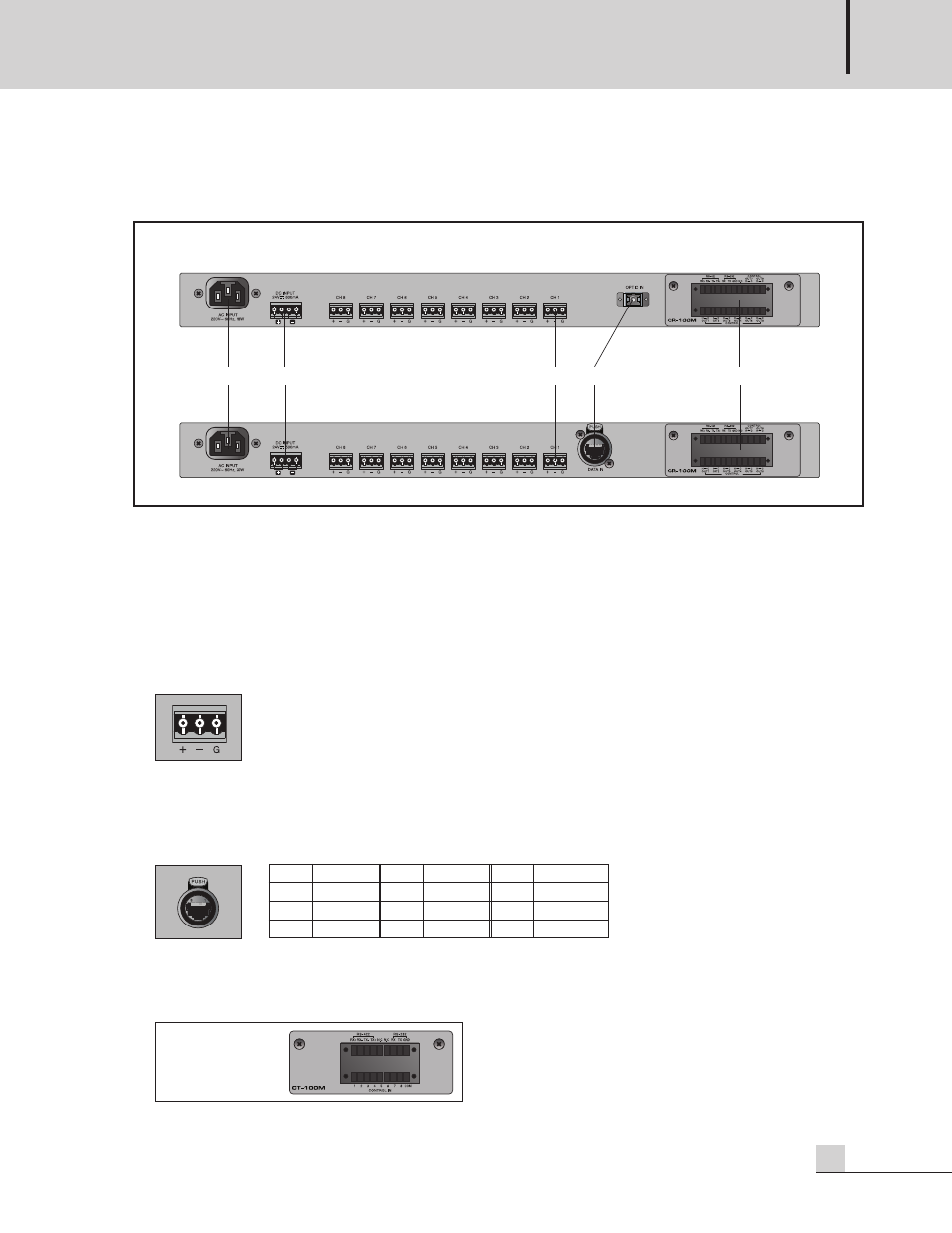

Receiver Rear Panel Receiver Rear Panel
(FRA-108S/IRX-108/IRX-102)
1. AC POWER INPUT TERMINAL
It receives the AC power.
2. DC POWER INPUT TERMINAL
It receives the DC 24V.
3. AUDIO SIGNAL INPUT TERMINAL
Balance audio signal input terminal.
+ : HOT
– : COLD
G : GROUND
4. COMMUNICATION TERMINAL
Terminal for data communication with receiver.
FTA-108S : Optic cable connection
ITX-102/108 : UTP cable connection.
5. COMMUNICATION MODULE CONNECTION SLOT
Communication Module Connection Slot
Slot for CT-100M communication module connection.
※ CT-100M is compatible with transmitters
(FTA-108S/ITX-108/ITX-102).
CR-100M is compatible with receivers
(FRA-108S/IRX-108/IRX-102).
Please check the model name when installing the module.
1 2 3 4 5
FRA-108S
IRX-108
IRX-108/IRX-102
FRA-108S
PIN NAME PIN NAME PIN NAME
1 Tx+ 4 Rx+ 7 DA_OUT+
2 Tx– 5 N.C 8 DA_OUT-
3 Rx– 6 GND
