CT-100M/CR-100M
Features
- This product is the optional module which adds the
control signal transfer function for the ITX/IRX
Series, FTA/FRA-108S.
- Simple Installation
Easy installation is possible because there is a
installation slot in the set.
- Provide the various control signals
It can be applied to several peripherals because it
can transfer the contact point signals of RS-232 and
RS-422.
- Applied Equipment
• CT-100M : FTA-108S, ITX-108, ITX-102
• CR-100M : FRA-108S, IRX-108, IRX-102

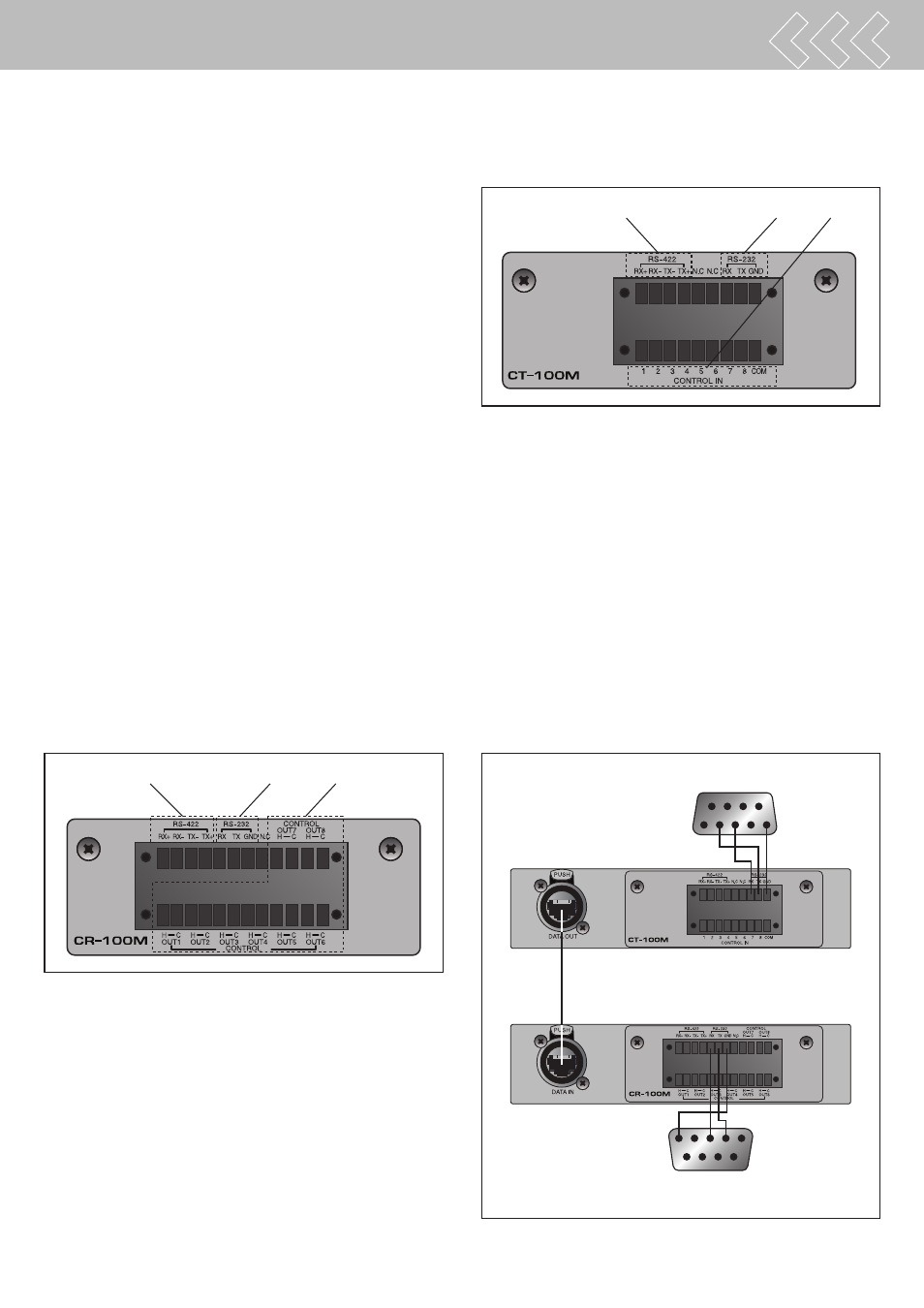

Front Panel (CT-100M)
1. RS-422 Terminal
Input/output terminal of RS-422 signal.
2. RS-232 Terminal
Input/output terminal of RS-232 signal.
3. Contact Point Output Terminal
Contact point output terminal
※ Compatible Equipment:
FTA-108S, ITX-108, ITX-102
Connection Chart (RS-232)
1 2 3
1
Front Panel (CR-100M)
1. RS-422 Terminal
Input/output terminal of RS-422 signal.
2. RS-232 Terminal
Input/output terminal of RS-232 signal.
3. Contact Point Output Terminal
Contact point output terminal
※ Compatible Equipment:
FRA-108S, IRX-108, IRX-102
1 2 3
UTP
or
OPTIC
RX
TX GND
RX TX GND
1 2 3 4 5
1 2 3 4 5
