DANTE AMPLIFIER CONTROLLER
6 DAC-288

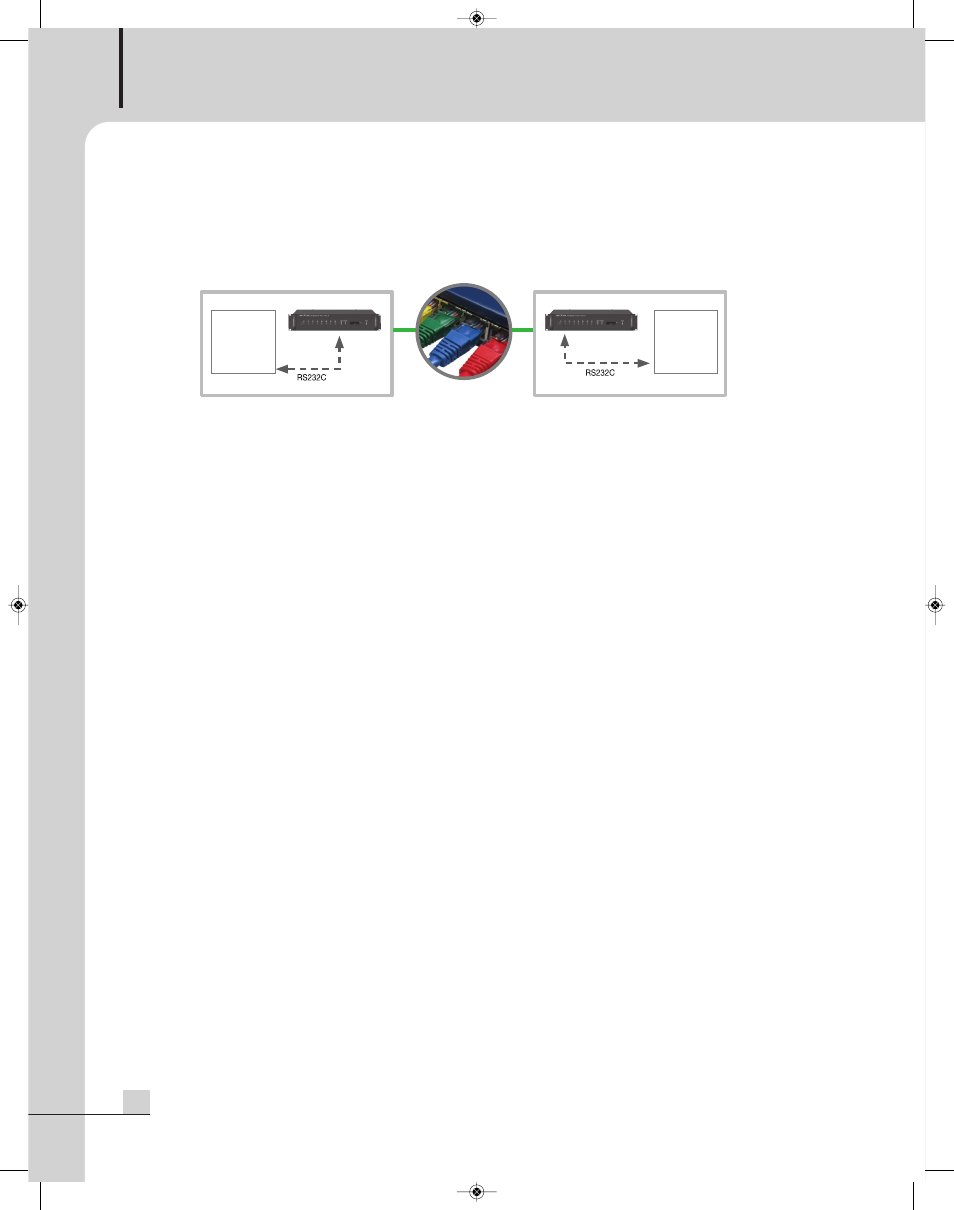

5. RS-232C COMMUNICATION TERMINAL
If inputting a signal into RS-232C terminal of transmitter, the signal is outputted via RS-232C of receiver.
For example, the same signal from receiver is outputted when inputting 'A, B, C, D' into transmitter.
6. NETWORK TERMINAL
It supports 10/100/1000 Base-Tx as network connection terminal(RJ-45)
- PRIMARY PORT : This is a main network terminal and is possible to change the setting of a device.
- SECONDARY : This is auxiliary network terminal and is possible to keep the PRIMARY status.
7. NETWORK STATUS LED
- LIVE : When connecting a device to network normally, green led is off.
- SYNC : When a device is not connected to network or network line and sink are not matched, red led is off.
8. AUDIO OUTPUT (CH1 ~ CH8)
This is an output terminal of audio and consists of 8 channel including balanced outputs(Hot, Cold, GND).
9. LINE/MIC INPUT (CH1 ~ CH2)
This is a line/mic input terminal of audio and consists of 2 channel including balanced inputs(Hot, Cold,
GND)
10. LINE INPUT (CH3 ~CH8)
This is a line input terminal of audio and consists of 6 channel including balanced inputs(Hot, Cold, GND)
11. LINE/MIC
Volume to control audio line/mic input level.
12. PHANTOM POWER ON/OFF SWITCH
Switch for on/off phantom power.
13. AUX INPUT JACK
It is possible to use connecting audio source equipment having 3.5ø output jack with AUX input jack.
- Use of LAN (school, resort , theme park, exhibit, museum)
LAN MAIN POINT
DATA
INPUT
DATA
OUTPUT
