ELECTRICAL FEATURES

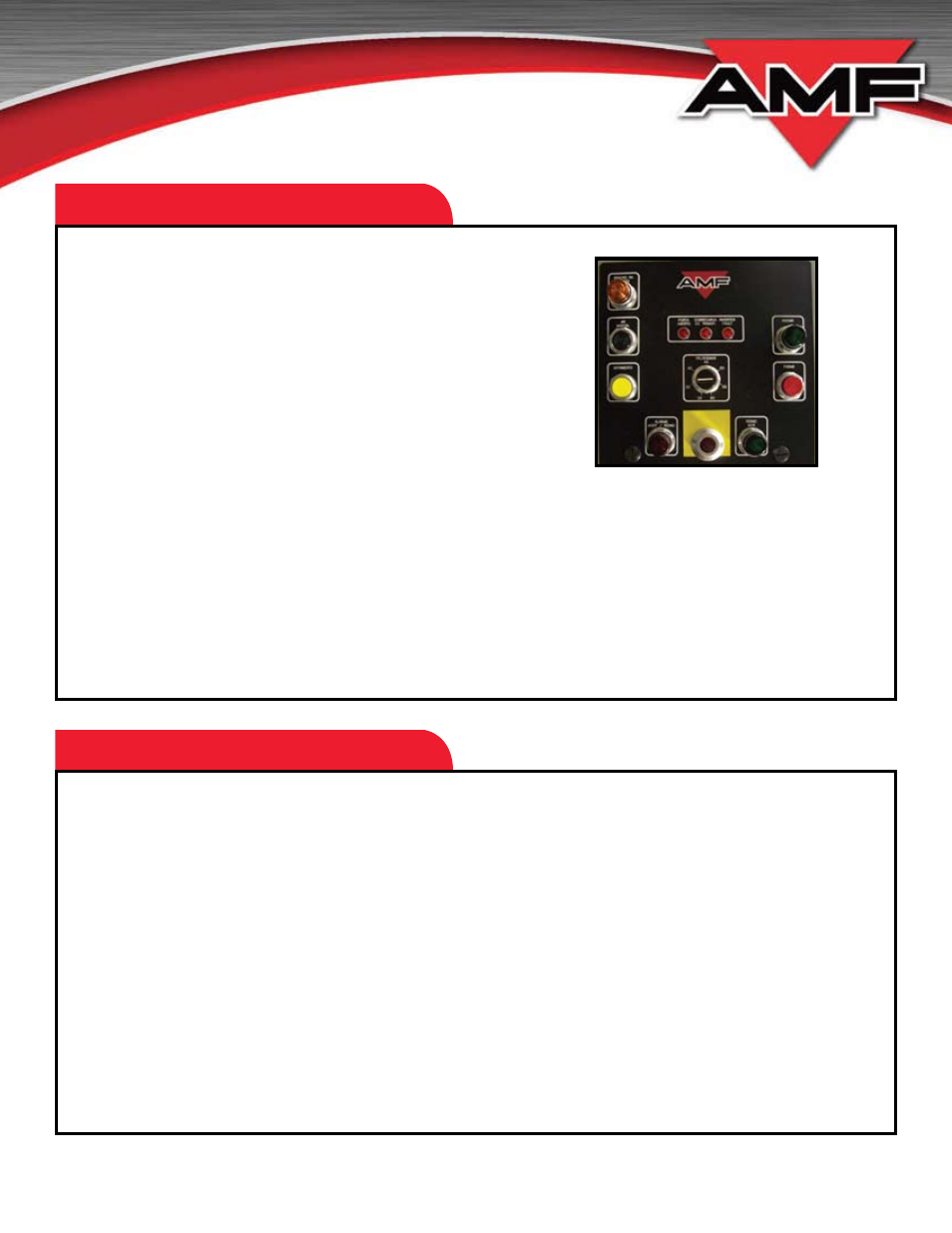

Operator Control Station
• NEMA 12 painted steel operator panel contains the
following:
- Allen Bradley push buttons for the following functions:
- Start
- Stop
- Jog
- Manual air blast
- Alarm, acknowledge, reset
- Emergency stop
- Speed pot
- Speed indicator
• NEMA 12 machine mount painted steel electrical enclosure
including:
- Main disconnect switch
- Allen Bradley MicroLogix 1100 Modular hardware programmable logic controller with Ethernet
communication and online edition
- Allen Bradley PowerFlex AC inverter 3 HP with brake resistor
- Incremental encoder for scoop position
• 110V outlet and power for closer and labeler
• Sensor for bag detection
• Double loaf detector
• Interlocks on all doors
SPECIFICATIONS
Throughput range:
35 - 60 loaves per minute
Electrical requirements:
Main Power - 6 KVA
Control Power - 24 VDC/120 VAC
Air Requirements - 6 SCFM @ 80 PSIG
Loaf size range:
Length: 8” (203 mm) - 16” (406 mm)
Width: 3-5/8” (92 mm) - 5-1/2” (140 mm)
Height: 3” (76 mm) - 6” (152 mm)
Approximate shipping weight:
2,500 lb. (1134 kg)
Approximate dimensions:
104” x 127” x 60”
(2642 mm x 3226 mm x 1524 mm)
