Text mode
Original mode

Software Utilities

Enable or
Disable

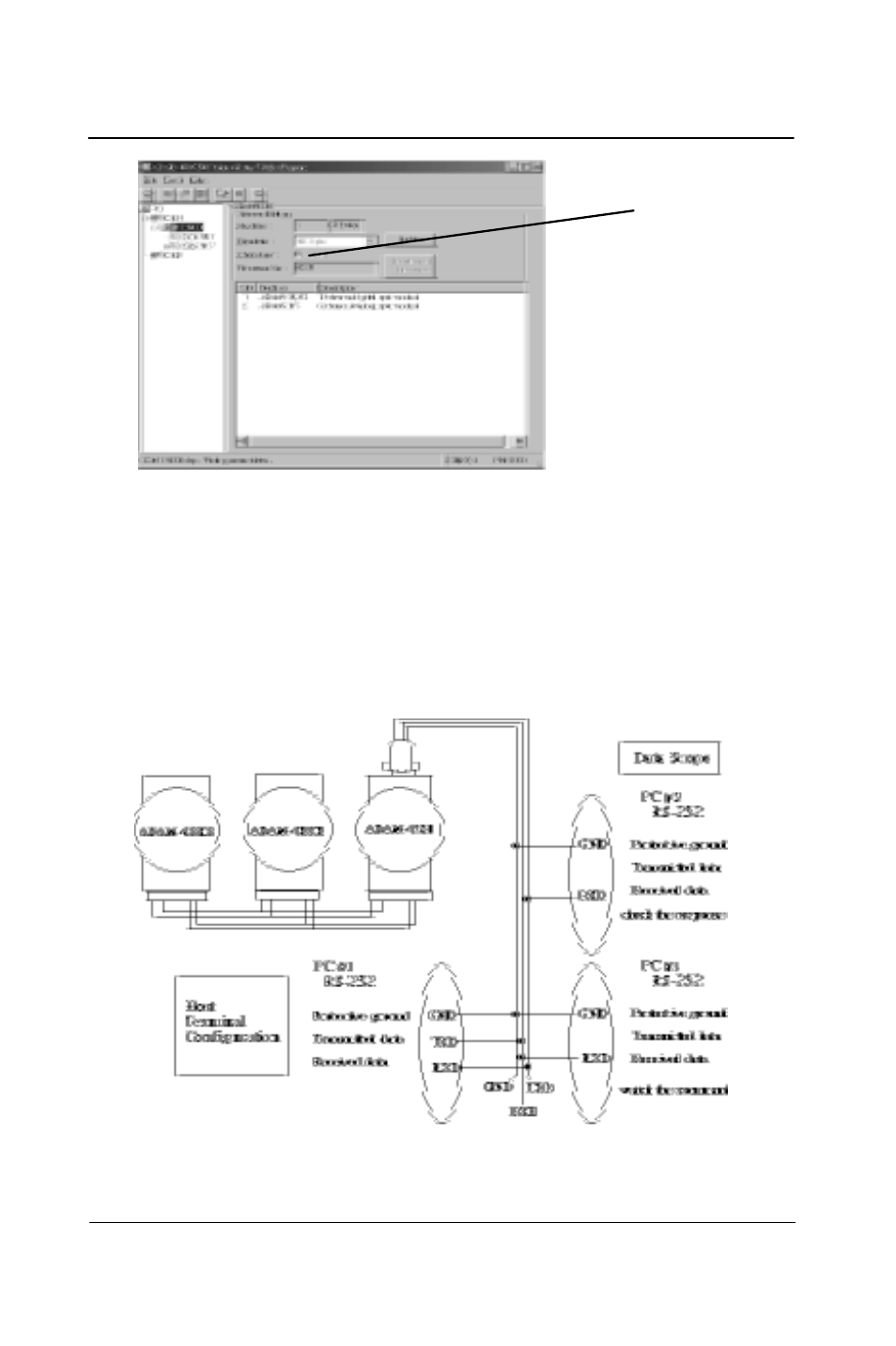

Figure 5-4 Checksum function enabled

5.1.6 Data Scope

Data Scope enables you to monitor the issue of commands and the
responses on another connected PC within your system. The follow-
ing example illustrates the working connection for the Data Scope
function:

Figure 5-5 The connection for Data Scope function

5-8

ADAM-5000
