6
ANC-1 SETUP AND USE
Ambient Noise Input Connections
Two plug-in barrier-strip connectors on the ANC-1 connect the ambient sensing sources to the device. One or two microphones or line-level
sources may be connected (gain adjusted accordingly in the Vocia software interface). Both connections may provide phantom power,
switchable from software (default: off). Multiple microphones may be mixed before connecting to the ANC-1.

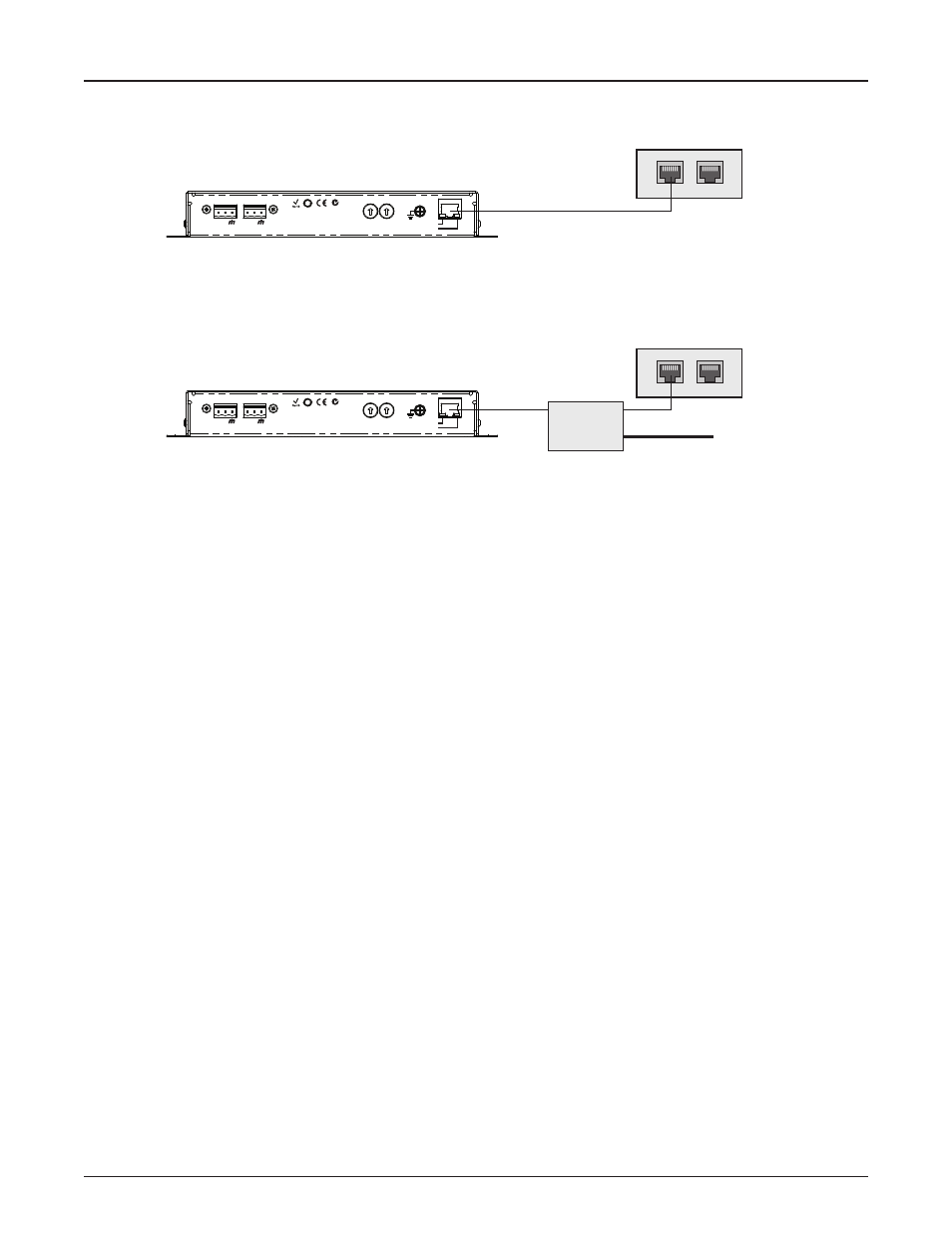

ANC-1
Ethernet switch
with PoE
ANC-1
Ethernet switch
without PoE
AC Power
PoE
injector
Device ID
LSB MSB - + - +
N24138
10
ANC-1
YEL:in use/conductor
CobraNet ®
PoE IEEE 802.3af Class 2
GRN:link/activity
GND
Input 1 Input 2
Ambient Sense Inputs (mic/line)
Device ID
LSB MSB - + - +
N24138
10
ANC-1
YEL:in use/conductor
CobraNet ®
PoE IEEE 802.3af
Class 2
GRN:link/activity
GND
Input 1 Input 2
Ambient Sense Inputs (mic/line)
