PCE-5120 User Manual
94

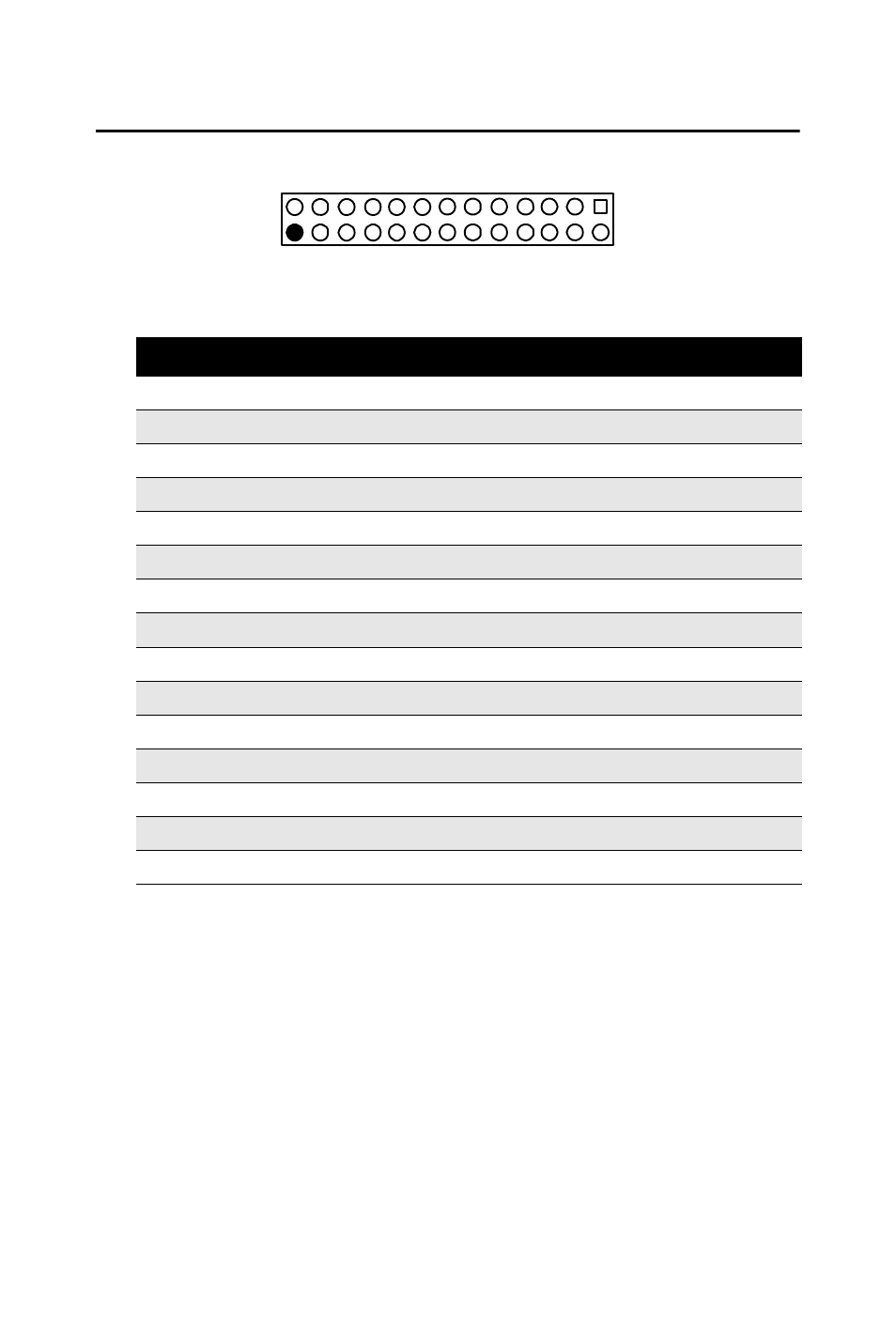

B.3 Parallel Port Connector (LPT1)
Table B.3: Parallel port connector (LPT1)
Pin
Signal
Pin
Signal
1
STROBE*
14
AUTOFD*
2
D0
15
ERR
3
D1
16
INIT*
4
D2
17
SLCTINI*
5
D3
18
GND
6
D4
19
GND
7
D5
20
GND
8
D6
21
GND
9
D7
22
GND
10
ACK*
23
GND
11
BUSY
24
GND
12
PE
25
GND
13
SLCT
26
N/C
* low active
15
26
13
2
25
12
1
14
