Specification
Item\Model CRX-104PVAD CTX-104PVAD/DC CTX-104PVAD/AC
Signal Power/Video/Audio/Data
Communication Type RF Modulation / RF Demodulation
Transmission Distance Output Level: 110dBm; up to 1 Km (Using RG-11 coaxial cable)
Impedance F connector: 75 Ohm; BNC connector: 75 Ohm
Video / Audio Video: 1 Vp-p 75 Ohm; Audio: 3 Vp-p, 100K (Max.)
RS-485 Simplex transmission; Baud rate: 2400-38400 bps
Input Power AC 110V / 220V ±10% AC50V-80V AC50V-80V
Output Power AC80V DC 12V/4A AC24V/2A or
DC24V/2A (Optional)
Surge Protection
DC Breakdown Voltage: 350V ± 15% (@ rising voltage 100V/s)
Impulse Breakdown Voltage: ≦ 700V (@ rising voltage 1KV/μs)
Insulation Resistance: ≧ 10000MΩ
Indicator Red: Power indicator Green: Video/Data indicator
Environmental Temperature: -10 ℃～60℃; Humidity: 0～95 ％ (Non-Condensing)
Dimension (L x W x H) 230 x 145 x 44 mm 160 x100 x 65 mm
Weight 2.6Kg 0.85 Kg
Transmission distance vs. Cable impedance & Cable attenuation
The formula below shows interactive factors between current and transmission distance. You are able to
calculate the power transmission distance when it is applied to the physical installation site.
I xΩ
Ω Ω Ωx L < 40 (For AC power Speed Dome); i.e. The value of I xΩ Ω Ω Ωx L must be less than 40.
I xΩ
Ω Ω Ωx L < 80 (For DC power Speed Dome); i.e. The value of I xΩ Ω Ω Ωx L must be less than 80.
I= Ampere (Speed dome requests current)
Ω Ω Ω Ω=Ohm per meter (Maximum DC loop resistance of coaxial cable )
L= Power transmission distance
The formula below shows video transmission distance. You are able to calculate the video transmission
distance when it is applied to the physical installation site.
A x L < 30; i.e. the value of A x L must be less than 30.
A = Attenuation per meter of coaxial cable @ 60M Hz frequency.
L= Video transmission distance

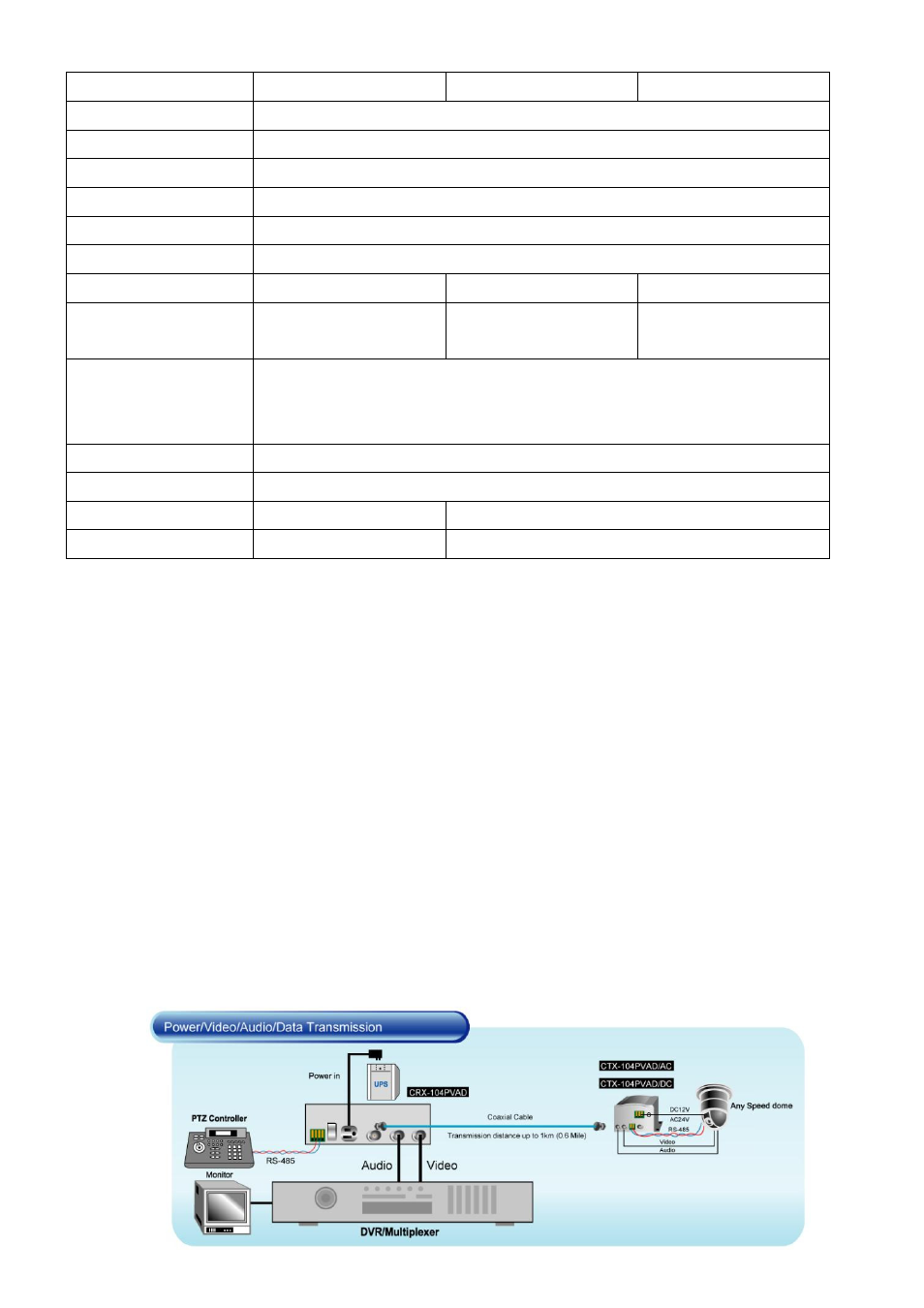

Product Application Diagram
