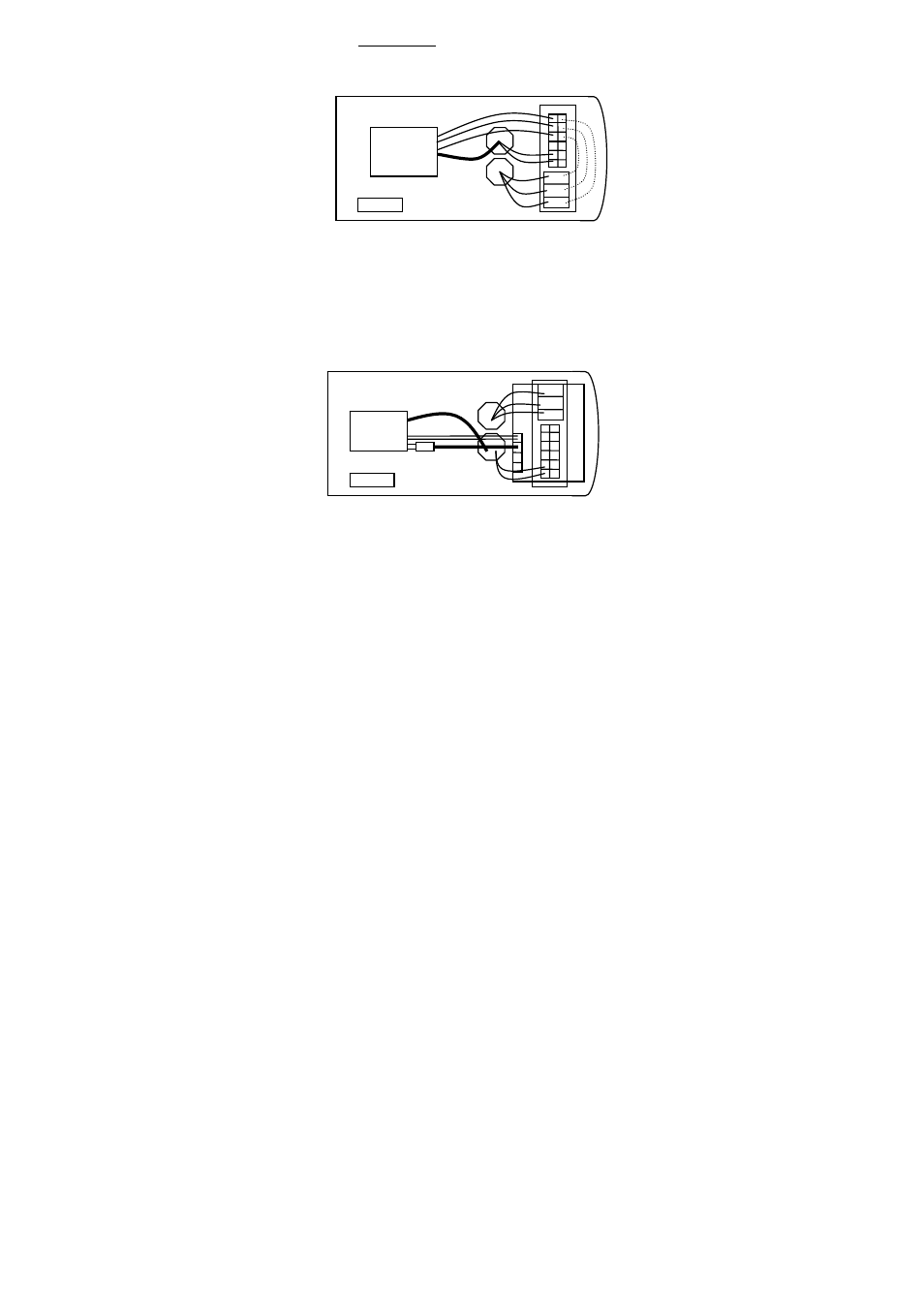

2.4. Connections
TV 8493
1: Connection for tamper switch
2: Connection 230VAC supply
3: Connection BNC Video
4: Connection 230VDC camera
Note:For video and supply cable please use a
combined cable (diameter max. 7 mm, min. 5 mm).
Only one round cable should be used for one cable
gland.
2.4.1. TV 8494 / TV8495
1: Connection for tamper switch (TV8494)
2: Connection for 230VAC supply
3: Connection BNC Video
4: Connection 12VDC camera plug / 2-wire
PE
-
+
camera
12V
2
1
3
4
-
+
PE
camera
230V
2
1
4
3
