11
ALARM
GND
OUT
IN
RESET

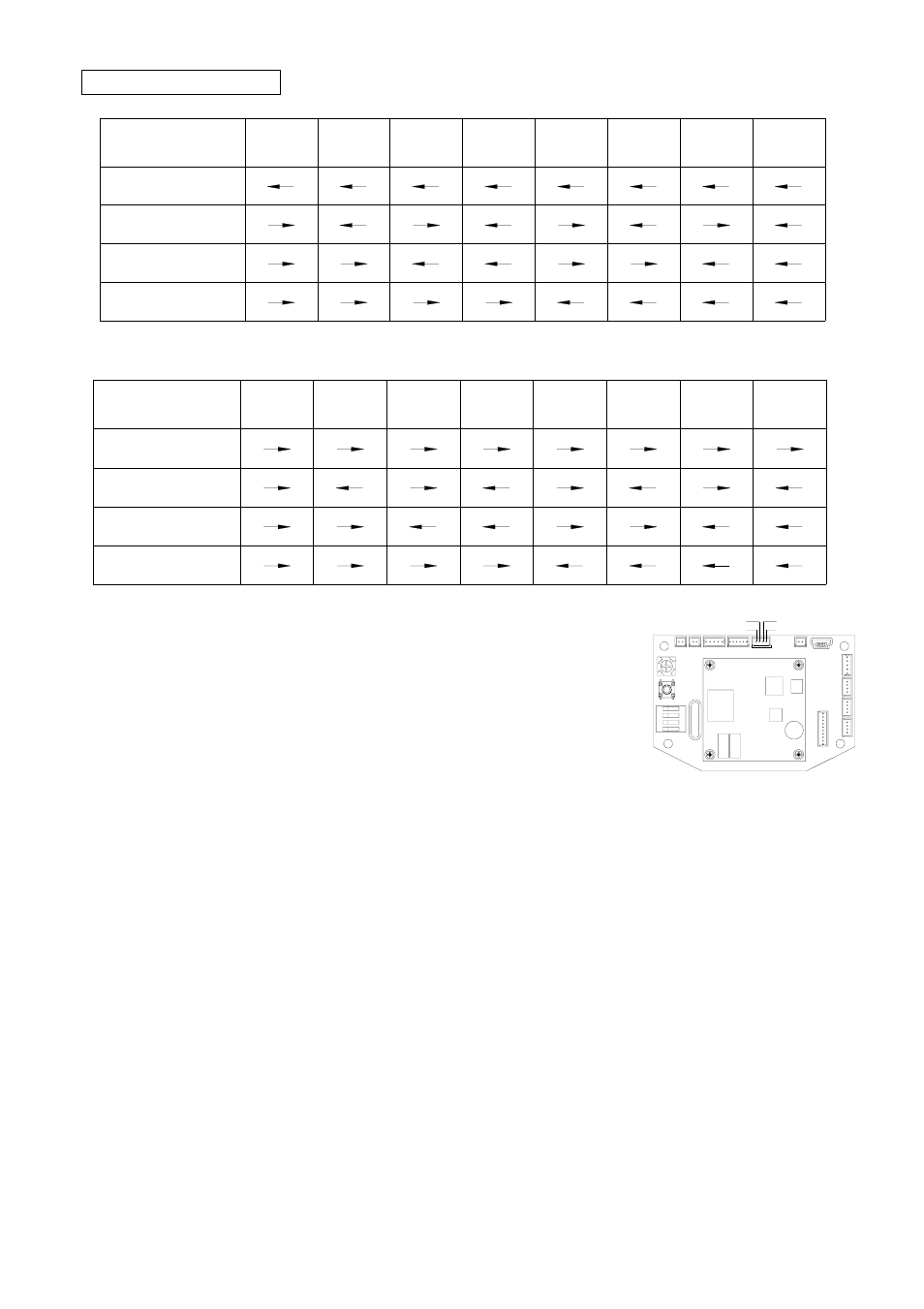

DELAY TIME SET UP
D E L A Y T I M E 1 s e c 5 s e c 1 0 s e c 2 0 s e c 3 0 s e c 4 0 s e c 5 0 s e c 1 m i n
1
2
3
4
2
3
4
2 m i n 2 . 5 m i n 3 m i n 3 . 5 m i n 4 m i n 4 . 5 m i n 5 m i n D E L A Y T I M E 1 . 5 m i n
1
ALARM：
ALARM IN (INPUT)：This is an alarm input which can be
programmed in the menu system to Normally Open or Normally Closed.
ALARM RESET (INPUT)：This pin connects to an alarm-clear device for clearing an alarm.
ALARM OUT (OUTPUT)：This is an alarm-output trigger. Connect this to external devices such
as buzzers or lights.
GND: Ground Contact.
Video output terminal (BNC)：
This connector is used to connect with the VIDEO IN connector of monitor.
RESET：Recover to factory default.
DC 12V：A DC 12V inlet that connects to an external power supply.
ETHERNET 10/100 Connector: (LAN)
This is a standard RJ-45 connector for 10/100 Mbps Ethernet networks.
SD CARD Slot: This is used for system software updating and archiving / accessing critical
images
