4. Network Configuration
4.1 Cable Connections
Please follow the instructions below to connect your ipxserv to a computer or a network and to
choose a proper RJ-45 cable configuration for connections.
Physical specifications of the RJ-45 cable for Ethernet
Wire Type Cat. 5 or above
Connector Type
RJ-45
Max. Cable Length 100 m
Hub Wiring Configuration
Straight through or Cross Over
PC Wiring Configuration Straight through or Cross Over

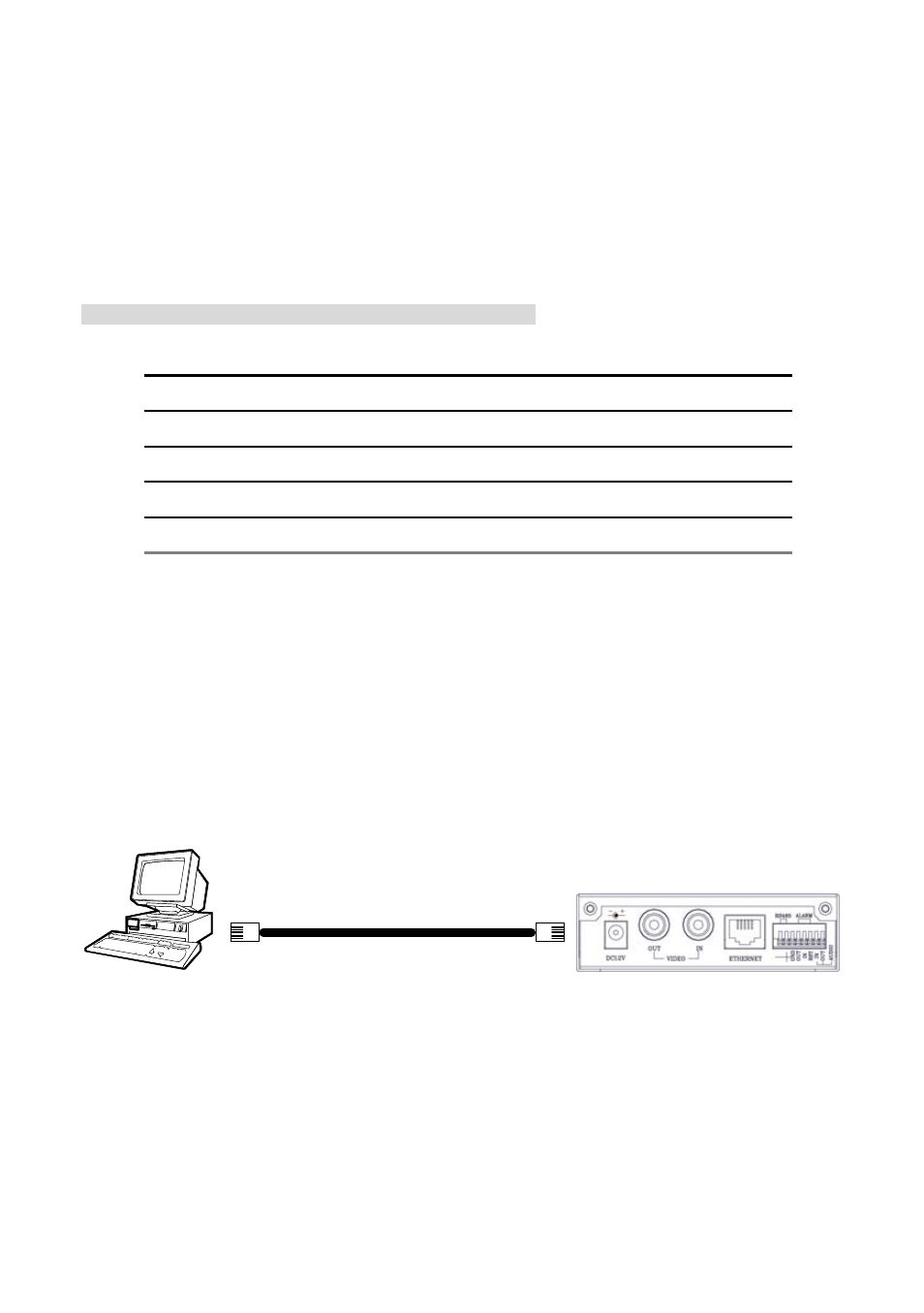

4.1.1 Connect to a computer
Use a cable to connect directly to a computer.
RJ-45
CROSSOVER CABLE
CROSSOVER CABLE PIN CONFIGURATION
LAN CAMERA
TO PC LAN CARD
Normal or crossover cable
NOTE: When connecting the PC and the ipxserv, the PC and the Video Server must be
assigned IPs, which must be in the same class type as your network address.
