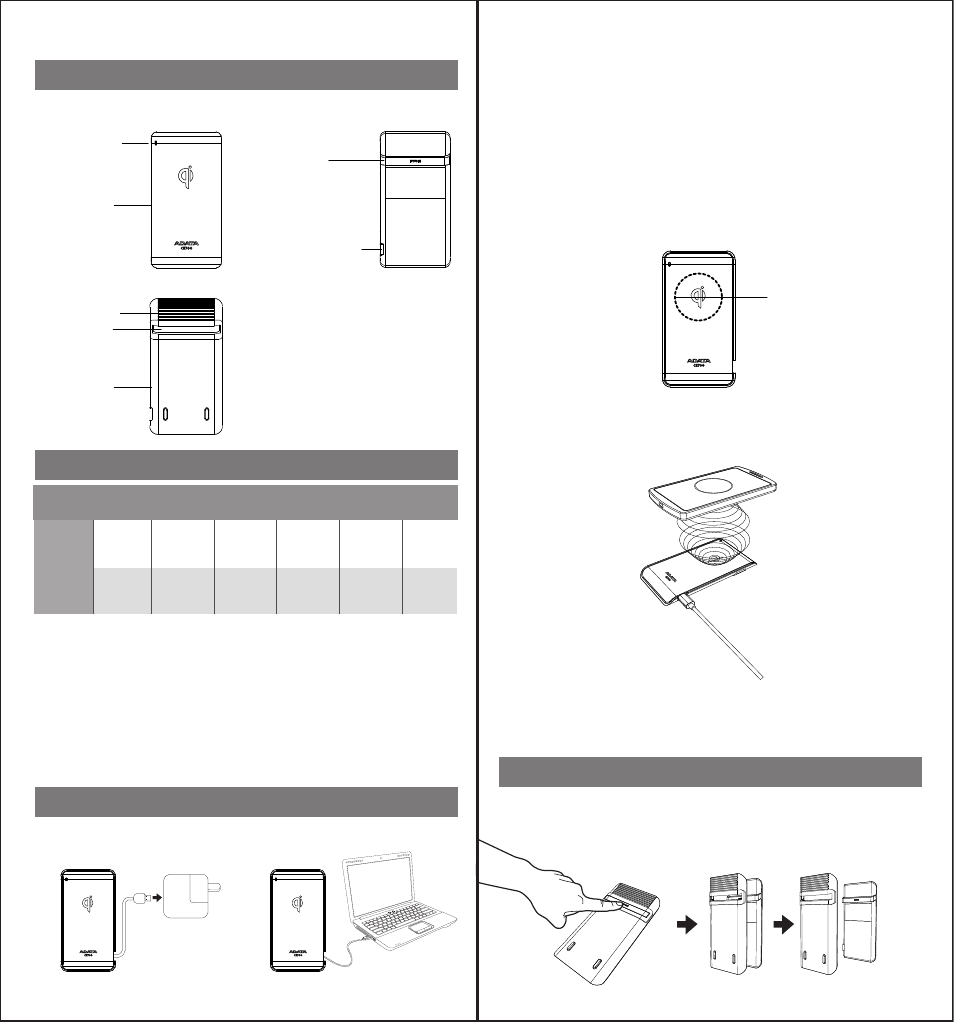

CE700 User Guide
1. Product Description
2. LED Indicators
3. Flat charge mode
4. Upright charging mode
A. Upper cover-charging pad
A. Input power: Connect the USB cable to the CE700 and then plug
it into a power source.
B. CE700 wireless charging pad (Tx) / Phone (Rx) alignment
C. Begin wireless charging
B. Lower Cover
Front: Back:
LED Indicator
Upper cover
Push bar
MicroUSB Port
Anti-slip mat
Rubber slot
Lower cover
CE700 LED Light display
Status
LED
Standby Charging Charging
complete
Charge
failure
Low
charging
level
Foreign
object
detection
Unlit
Flashing
green
Green Red Yellow
Flashing
red
NOTE 2-1: A red light on the LED display of the CE700 indicates a
charging failure. Make sure the charging zone (Tx) / Phone (Rx) are
correctly aligned.
NOTE 2-2: When the LED displays a yellow light, it indicates the CE700
is in a low-power charge mode. Either the input power is insufficient, or
the charging zone (Tx) / Phone (Rx) alignment is offset, so that the
charging time will be longer than normal. Use sufficient amount of power
and re-align the phone with the stand’s charging zone.
NOTE 2-3: When the LED indicator flashes red, it means that there is a
metallic foreign body (such as a coin) between the phone (Rx) and the
charging pad (Tx). Remove all foreign objects before use.
NOTE 3-1: For optimum performance, use the USB cable that came
packaged with the CE700.
NOTE 3-2: The CE700 supports use with a USB plug power supply. Use
an existing appropriate USB plug, or connect to a computer USB slot to
draw power. The Rx coil of the phone itself will have an upper limit for
charging speed, and differences in phone battery capacity will affect
charging. Also, the alignment of the Tx and Rx induction zones, and also
the type of power source will affect charging speed.
NOTE 3-3: It is recommended to use at least DC 5V, 1.5A plug to ensure
maximum charge effectiveness.
After placing the phone, the phone's display will show that it is charging,
and the CE700 LED will start flashing green. If the LED light is not green,
refer to section B to check the status and corrective action needed.
i. Confirm the CE700 (Tx) wireless charging induction zone by
referring to the image below. The circle indicates the optimum
charging zone.
A. Setting the CE700 into upright mode
i. Step A: On the back side of the CE700, press the bar that reads
"PUSH" through the rubber slot, so that the upper and lower
covers separate.
ii. Confirm the phone (Rx) wireless charging induction zone by
referring to the phone’s user manual.
iii. Place the phone’s induction zone (Rx) within the CE700
effective induction zone (Tx).
43mm
Rx
