Acura Embedded AcuPanel 12 User Manual
Page 4

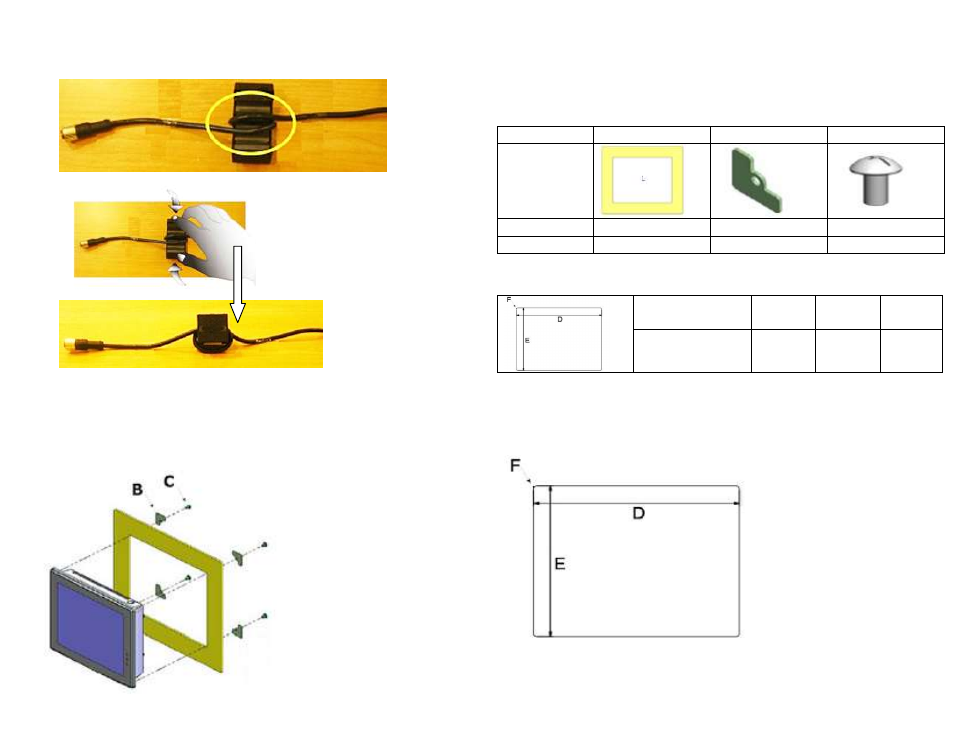

4. Take the Adaptor cable one turn round to the ferrite core
5. Close the ferrite core firmly by your finger.
6. To do so, It has much less interference passing to the computer.
7. Mounting (Option)
Please follow the instruction below for panel mounting.
6
Parts Table
ITEM
A
B
C
PARTS
QTY
1
4
4
SPEC
Rubber
M6
L15
Cabinet (Cut-out) Dimension (mm)
ITEM
D
E
F
AcuPanel 12
300
232
4-R5
8. Cut-out Drawing
Cut-out Drawing
7
