MKCP1613/1624/3213/3224
1U rackmount Matrix Cat6 IP KVM Switch

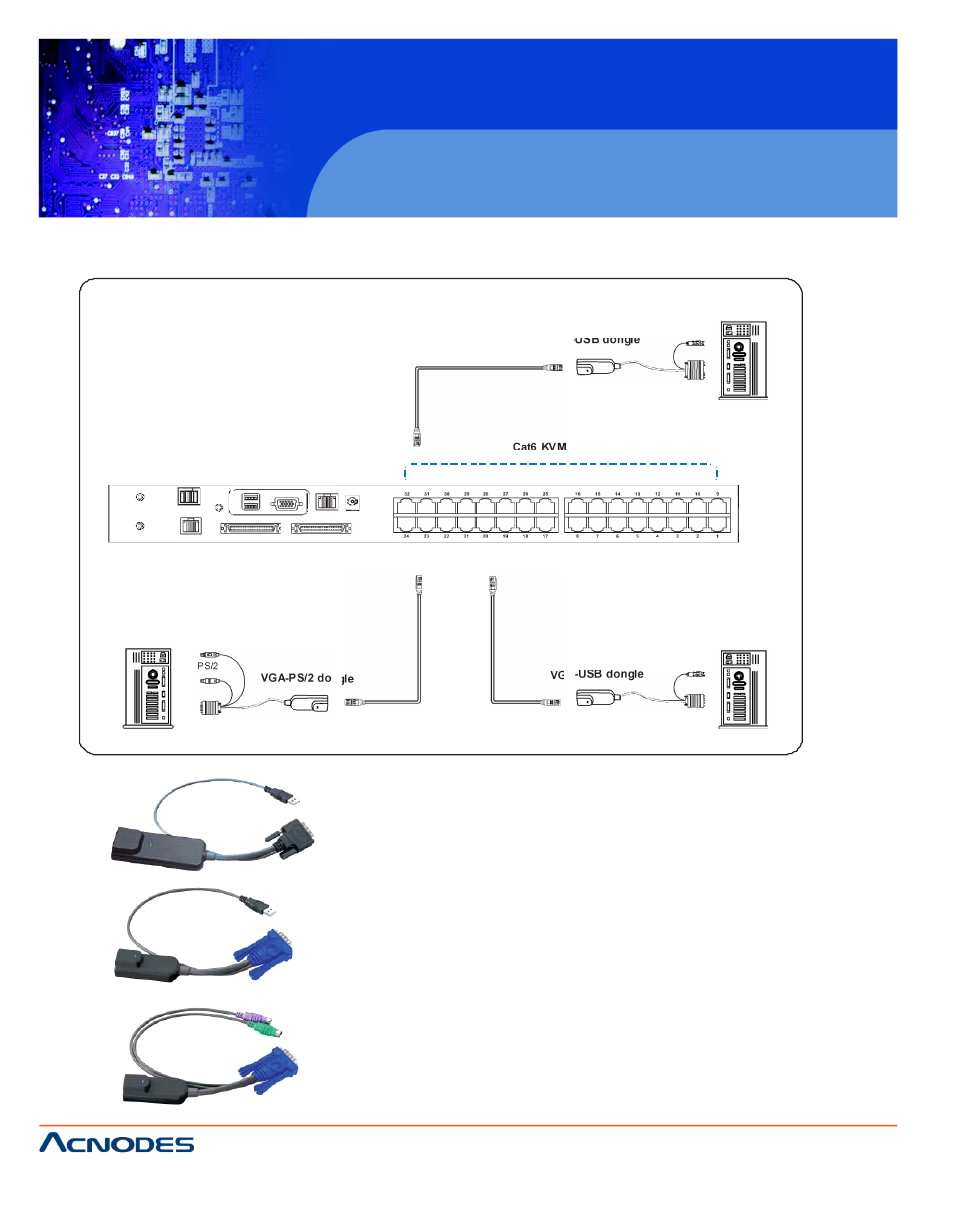

< 1.2 > KVM port & Cat6 dongle connection
USB Servers
CAT 5 / 6 cable
max. 40 meters
DG-100SD
DVI-USB dongle
US B
DV I-D
Cat6 KVM port
PS/2 Servers
USB Servers
P S/2
DG-100
VGA-PS/2 dongle
DG-100S
VGA-USB dongle
US B
CAT 5 / 6 cable
V GA
max. 40 meters
VG A
DVI-USB dongle
¦
To connect DVI-D connector to the com puter’s video card
¦
To connect USB c onnector to the computer’s USB port
VGA-USB dongle
¦
To connect DB-15 connector to the computer’s video card
¦
To connect USB c onnector to the computer’s USB port
VGA-PS/2 dongle
¦
To connect DB-15 connector to the computer’s video card
¦
To connect PS/2 keyboard connector to the com puter’s keyboard port
¦
To connect PS/2 mouse connector to the computer’s mouse port
