176
FSAF24-SR(-S) US
Proportional, Spring Return, 24 V, 2 to 10 VDC or 4 to 20 mA control signal
Operation at 250°F for limited time per UL555S testing
Accessories (AF series accessories may be employed)
IND-AF2 Damper position indicator
K4 US Universal clamp for 3/8” to 3/4” shafts
K4-1 US Universal clamp for up to 1.05” dia. jackshafts
K4-H Universal clamp for hexshafts 3/8” to 5/8”
KH-AF Crank arm for up to 3/4” round shaft (Series 2)
KH-AF-1 Crank arm for up to 1.05” jackshaft (Series 2)
KH-AFV V-bolt kit for KH-AF and KH-AF-1
Tool-01 10 mm wrench
SGA24 Min. and/or max. positioner in NEMA 4 housing
SGF24 Min. and/or max. positioner for flush panel mounting
ZG-R01 500 Ω resistor for 0 to 20 mA control signal
ZDB-AF2 US Angle of rotation limiter
ZG-100 Universal mounting bracket
ZG-101 Universal mounting bracket
ZG-102 Multiple actuator mounting bracket
ZG-103 Universal mounting bracket
ZG-104 Universal mounting bracket
ZG-106 Mounting bracket for Honeywell ® Mod IV replacement or new
crank arm type installations
ZG-107 Mounting bracket for Honeywell ® Mod III or Johnson ® Series
100 replacement or new crank arm type installations
ZG-108 Mounting bracket for Barber Colman ® MA 3../4.., Honeywell ®
Mod III or IV or Johnson ® Series 100 replacement or new
crank arm type installations
ZG-AF Crank arm adaptor kit for AF/NF
ZG-AF108 Crank arm adaptor kit for AF/NF
ZS-100 Weather shield (metal)
ZS-150 Weather shield (polycarbonate)
ZS-260 Explosion-proof housing
ZS-300 NEMA 4X housing
For an overview of how to apply the accessories, see Belimo Mechanical Accessories and refer to the Belimo
Mounting Methods Guide.
NOTE: When using FSAF24-SR(-S) US actuators, only use accessories listed on this page.
Typical Specification
Proportional smoke, and combination fi re and smoke dampers, shall be controlled by
Belimo FSAF24-SR actuators. The control signal shall provide proportional damper
control in response to a 2 to 10 VDC or, with the addition of a 500
Ω resistor, a 4 to
20 mA control input from an electronic controller or positioner. The actuators must be
designed so that they may be used for either clockwise or counter clockwise fail-safe
operation. Actuator shall open damper in <75 seconds per UL555S and shall spring
closed in under 20 seconds. Actuators shall be UL Approved, have a 5-year warranty,
and be manufactured under ISO 9001 International Quality Control Standards.
Actuators shall be as manufactured by Belimo. Actuators with auxiliary switches
must be constructed to meet the requirement for double insulation so an electrical
ground connection is not required to meet agency listings.
Replacement Application
The number one “equal or better” requirement for use as a replacement for obsolete
defective motors is the UL555S listing of the Belimo actuator with the damper for the
application. The local authority having jurisdiction sets the requirements since UL
has stated that they do not regulate replacements.

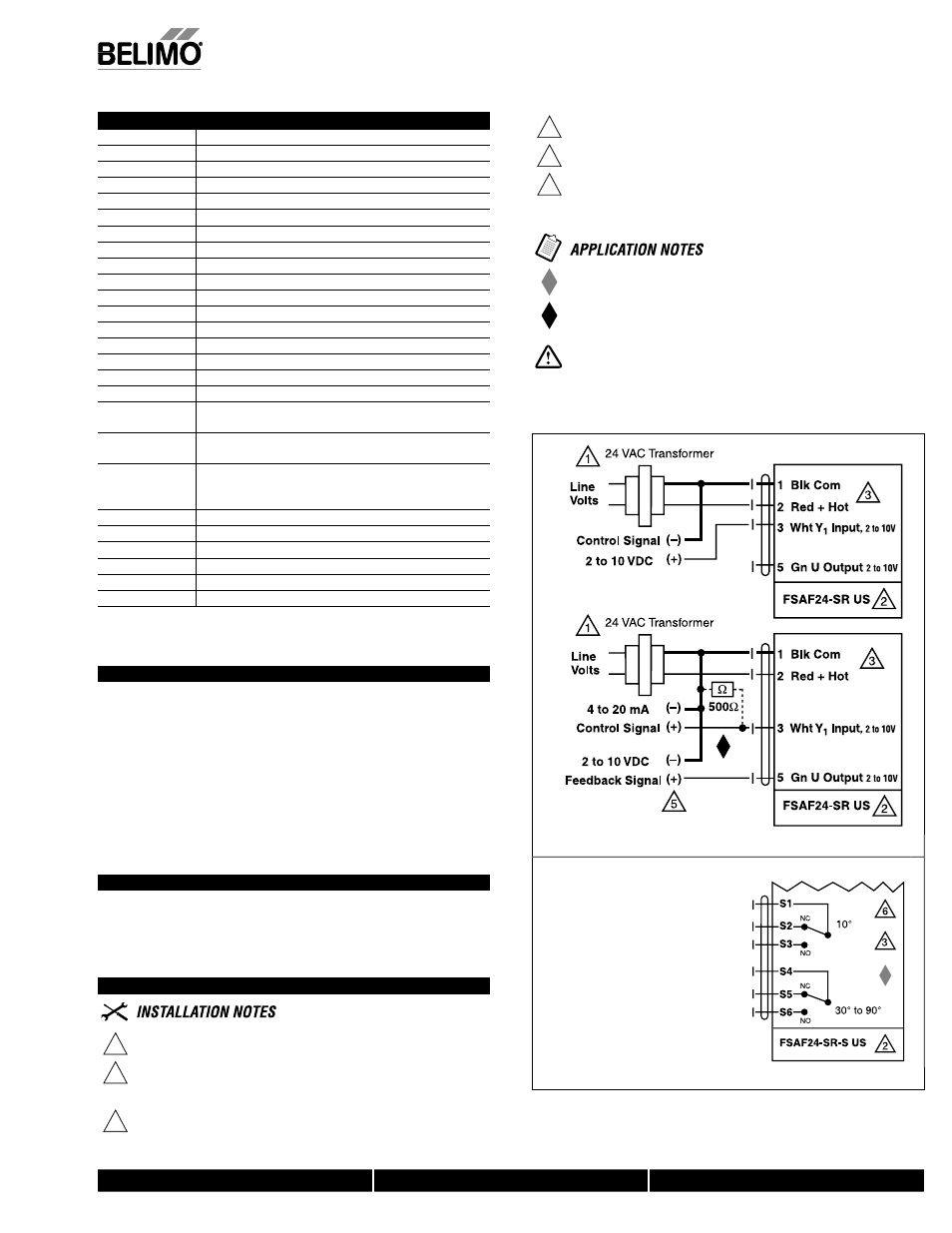

Wiring Diagrams
1 Provide overload protection and disconnect as required.
2
CAUTION Equipment Damage!
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
3 Actuator may also be powered by 24 VDC.
4 No ground connection required. Double insulated.
5 Only connect common to neg. (–) leg of control circuits.
6
For end position indication, interlock control, fan startup, etc.,
FSAF24-SR-S US incorporates two built-in auxiliary switches:
2 x SPDT, 7A resistive, 2.5A inductive 120/250 VAC, UL Approved, one
switch is fi xed at 10°, one is adjustable 30° to 90°.
Meets UL requirements without the need of an electrical ground
connection.
The ZG-R01 500 Ω resistor converts the 4 to 20 mA control signal to
2 to 10 VDC.
WARNING Live Electrical Components! G
During installation, testing, servicing and troubleshooting of this product, it may be
necessary to work with live electrical components. Have a qualifi ed licensed electrician or other
individual who has been properly trained in handling live electrical components perform these
tasks. Failure to follow all electrical safety precautions when exposed to live electrical compo-
nents could result in death or serious injury.
W
188_08
Proportional control
W
572_08
Auxiliary switch
