FSAF230(-S) US
On/Off, Spring Return, 250°F [121°C] for Half Hour, 75 Seconds
Accessories (AF series accessories may be employed)
IND-AF2 Damper position indicator
K4 US Universal clamp for 3/8” to 3/4” shafts
K4-1 US Universal clamp for up to 1.05” dia. jackshafts
K4-H Universal clamp for hexshafts 3/8” to 5/8”
KH-AF Crank arm for up to 3/4” round shaft (Series 2)
KH-AF-1 Crank arm for up to 1.05” jackshaft (Series 2)
KH-AFV V-bolt kit for KH-AF and KH-AF-1
Tool-01 10 mm wrench
ZDB-AF2 US Angle of rotation limiter
ZG-100 Universal mounting bracket
ZG-101 Universal mounting bracket
ZG-102 Multiple actuator mounting bracket
ZG-103 Universal mounting bracket
ZG-104 Universal mounting bracket
ZG-106 Mounting bracket for Honeywell ® Mod IV replacement or new
crank arm type installations
ZG-107 Mounting bracket for Honeywell ® Mod III or Johnson ® Series
100 replacement or new crank arm type installations
ZG-108 Mounting bracket for Barber Colman ® MA 3../4.., Honeywell ®
Mod III or IV or Johnson ® Series 100 replacement or new
crank arm type installations
ZG-AF Crank arm adaptor kit for AF/NF
ZG-AF108 Crank arm adaptor kit for AF/NF
ZS-100 Weather shield (metal)
ZS-150 Weather shield (polycarbonate)
ZS-300 NEMA 4X housing
22965-00001 12mm form fit square shaft adaptor
For an overview of how to apply the accessories, see Belimo Mechanical Accessories and refer to the Belimo
Mounting Methods Guide.
NOTE: When using FSAFxx (-S) US actuators, only use accessories listed on this page.
Typical Specification
Large combination fi re and smoke dampers are to be operated by Belimo FSAF
series actuators. Manufacturer shall provide 5 year warranty.
Actuators shall draw no more than 12VA at 230V or 10 VA at 24V.
Where auxiliary switches are required for signaling, starting fans, or position indica-
tion, -S model actuators, damper blade, or proximity switches shall be provided.
Smaller dampers shall employ Belimo FSLF or FSNF actuators per damper manufac-
turer recommendations.

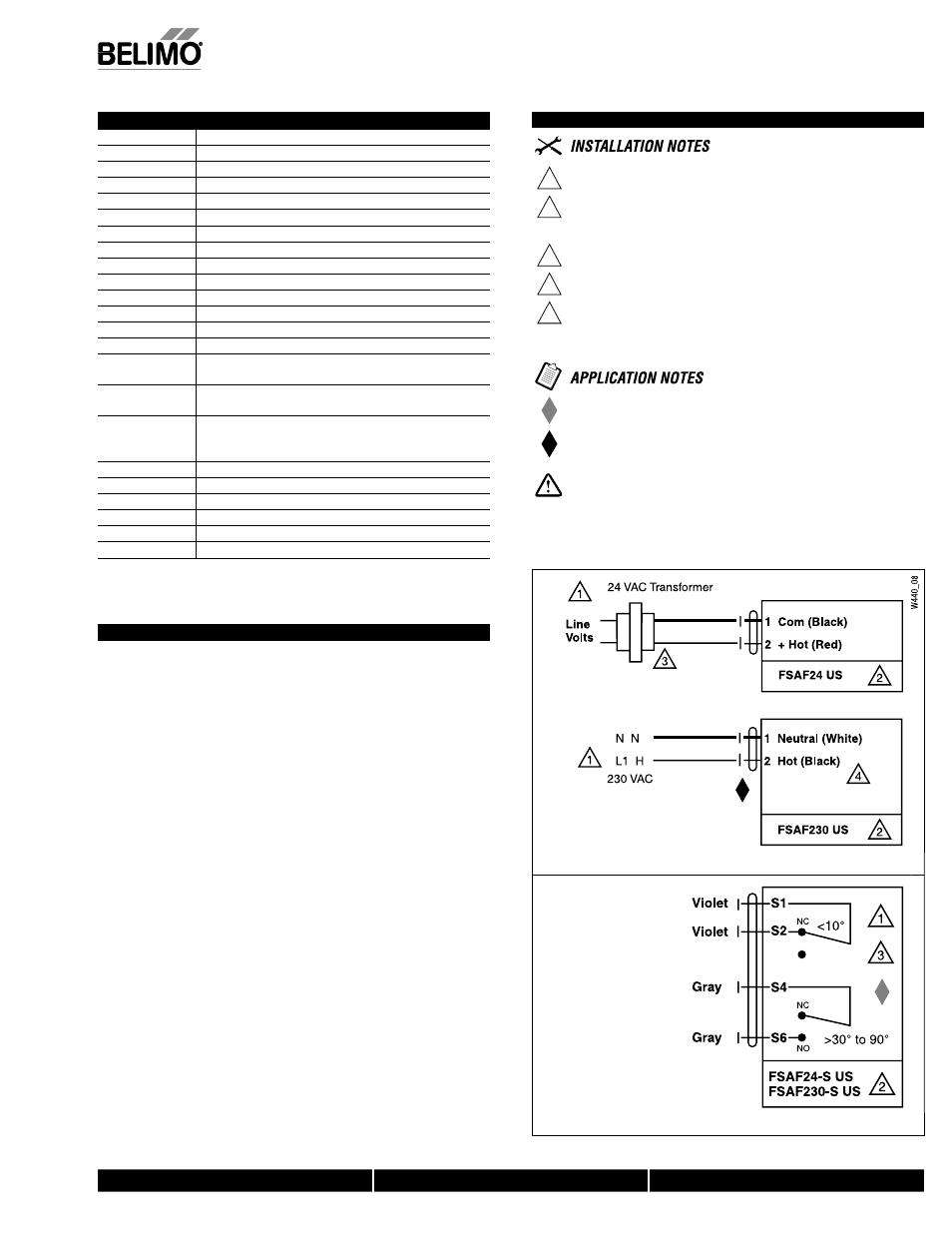

Wiring Diagrams
1 Provide overload protection and disconnect as required.
2
CAUTION Equipment Damage!
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
3 Actuator may also be powered by 24 VDC.
4 No ground connection required. Double insulated.
5
For end position indication, interlock control, fan startup, etc., the
FSAF230-S US incorporates two built-in auxiliary switches: 2 x SPST, 7A
resistive, 2.5 inductive @120/250 VAC, UL Approved, one switch is fi xed at
10°, one is adjustable from 30° to 90°.
Meets UL requirements without the need of an electrical ground
connection.
Meets cULus or UL and CSA Standard requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components! G
During installation, testing, servicing and troubleshooting of this product, it may be
necessary to work with live electrical components. Have a qualifi ed licensed electrician or other
individual who has been properly trained in handling live electrical components perform these
tasks. Failure to follow all electrical safety precautions when exposed to live electrical compo-
nents could result in death or serious injury.
