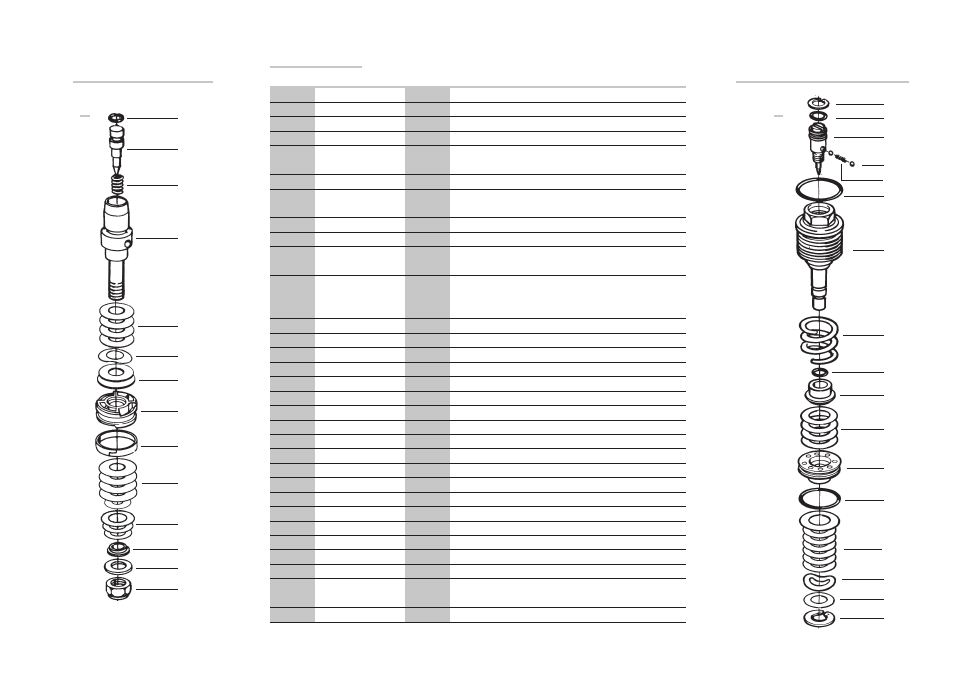

Compression adjuster

Rebound adjuster

Spare parts

Pos.

Part No.

Pcs.

Description

Type/remarks

3:21

00438-31

2

O-ring

3:22

02356-03

2

Rebound needle

3:23

02322-01

2

Spring

3:24

02320-03

2

Piston holder

3:25

00610-18

1/leg

Shims

00530-18

3/leg

Shims

3:26

01149-01

2/leg

Wave washer

3:27

00520-22

1/leg

Shims

3:27

00525-19

1/leg

Shims

3:28

02335-01

1/leg

Piston

3:29

01447-02

1/leg

Piston ring

3:30

00184-21

4/leg

Shims

00185-12

1/leg

Shims

3:31

00184-18

1/leg

Shims

00184-16

1/leg

Shims

00184-14

1/leg

Shims

3:32

00641-04

1/leg

Washer

3:33

00153-01

4

Washer

3:34

00430-05

2

Nut M8

3:35

01473-02

2

Circlip

3:36

00338-53

2

O-ring

3:37

01242-01

2

Adjustment needle

3:38

00884-04

4

Ball

3:39

01248-01

2

Spring

3:40

00438-02

2

O-ring

3:41

02413-01

2

Base valve

3:42

04107-02

2

Spring

3:43

00438-52

2

O-ring

3:44

02414-01

2

Poppet valve

3:45

00184-14

4/leg

Shims

3:46

02415-01

1/leg

Poppet valve seat

3:47

00438-03

2

O-ring

3:48

00520-23

1/leg

Shims

3:49

04105-02

1/leg

Wave washer

3:50

00530-23

1/leg

Shims

00530-18

6/leg

Shims

3:51

05009-12

2

Circlip

3

4

21

22

23

24

25

26

27

28

29

30

31

32

34

33

44

36

37

38
39
40

41

42

43

45

46

47

50

48

51

35

49
