When two or more modules are installed
together, an integrated module filler strip
(IFILLER/S) is recommended. Contact your
Wolf dealer for information on accessories.
IMPORTANT NOTE: Review specific
installation instructions for product to product
capabilities.
W O L F F RY E R M O D U L E
M A N UA L D R A I N O U T L E T
IMPORTANT NOTE: The fryer module must be
installed in a base cabinet that allows access to
the manual drain valve for draining the oil. A
heat-resistant bucket must be positioned under
the drain outlet to accept the oil. The bucket
must be able to hold 7.6 L. Refer to the Instal-
lation Specifications illustration on
page 7 for location of the manual drain outlet.
M U LT I P L E C O O K TO P I N S T A L L A T I O N
IMPORTANT NOTE: If the fryer module is to
be used with a combination of additional
cooktop units or modules with a filler strip,
the cut-out width is calculated by adding the
corresponding units' cut-out dimensions plus
32 mm for each additional unit.
When multiple units are installed side by side,
each unit must have its own separate recom-
mended electrical circuit.
64 mm
min
FRONT OF COUNTERTOP
489
mm
CUT-OUT
DEPTH
743 mm
TWO MODULES WIDTH
1130 mm THREE MODULES WIDTH OR
1124 mm / 762 mm COOKTOP AND ONE MODULE
1518 mm FOUR MODULES WIDTH OR
1511 mm / 762 mm COOKTOP AND TWO MODULES OR
1276 mm / 914 mm COOKTOP AND ONE MODULE
356
mm
CUT-OUT
WIDTH

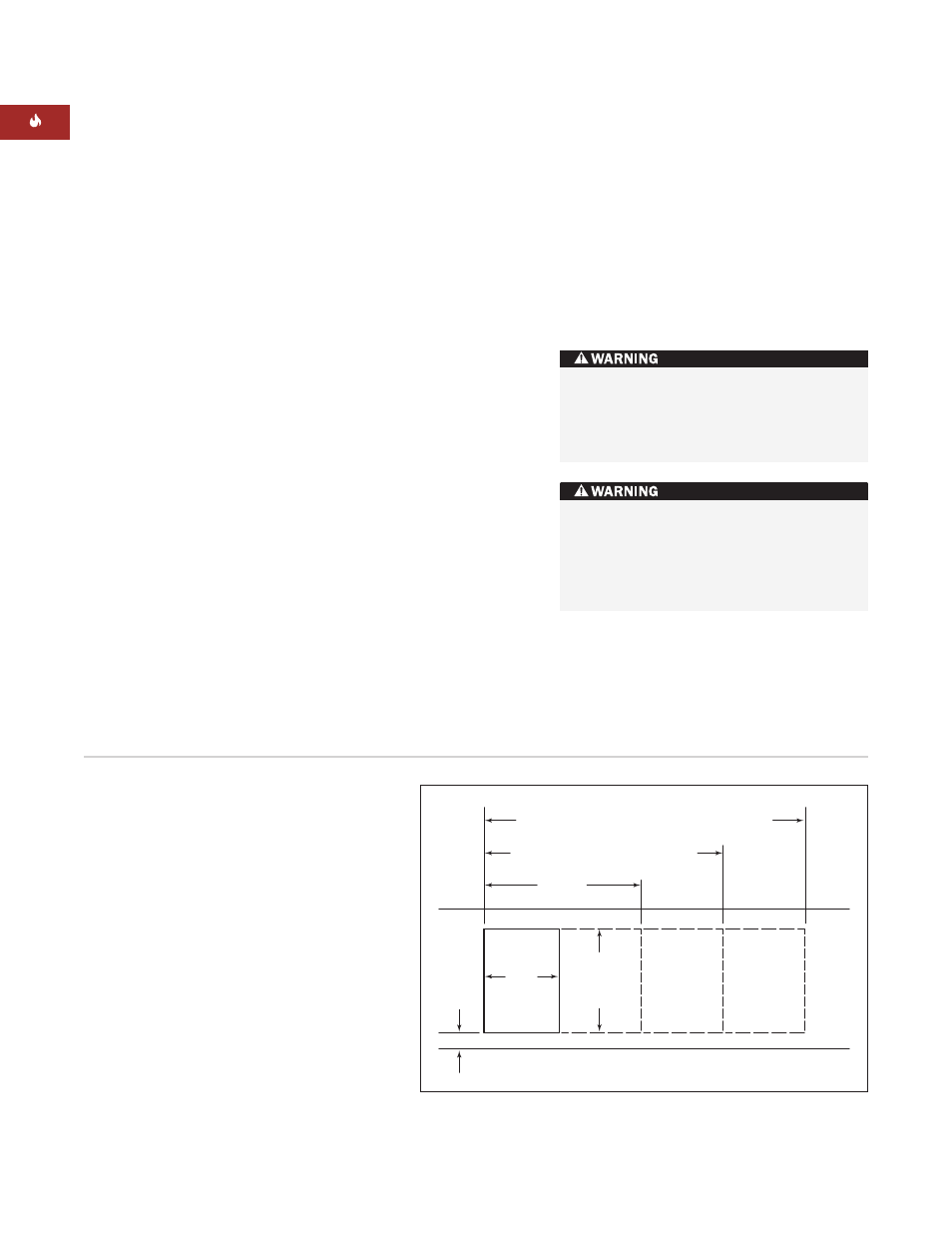

Countertop cut-out dimensions for installation of multiple cooktops
This fryer module must be installed at
least 381 mm away from any open-flame
cooking device. The open flame may
cause ignition of oil.
This fryer module must be installed at
least 381 mm away from a Wolf steamer
module, as contact between water and
hot oil may cause burns from steam and
hot oil.
