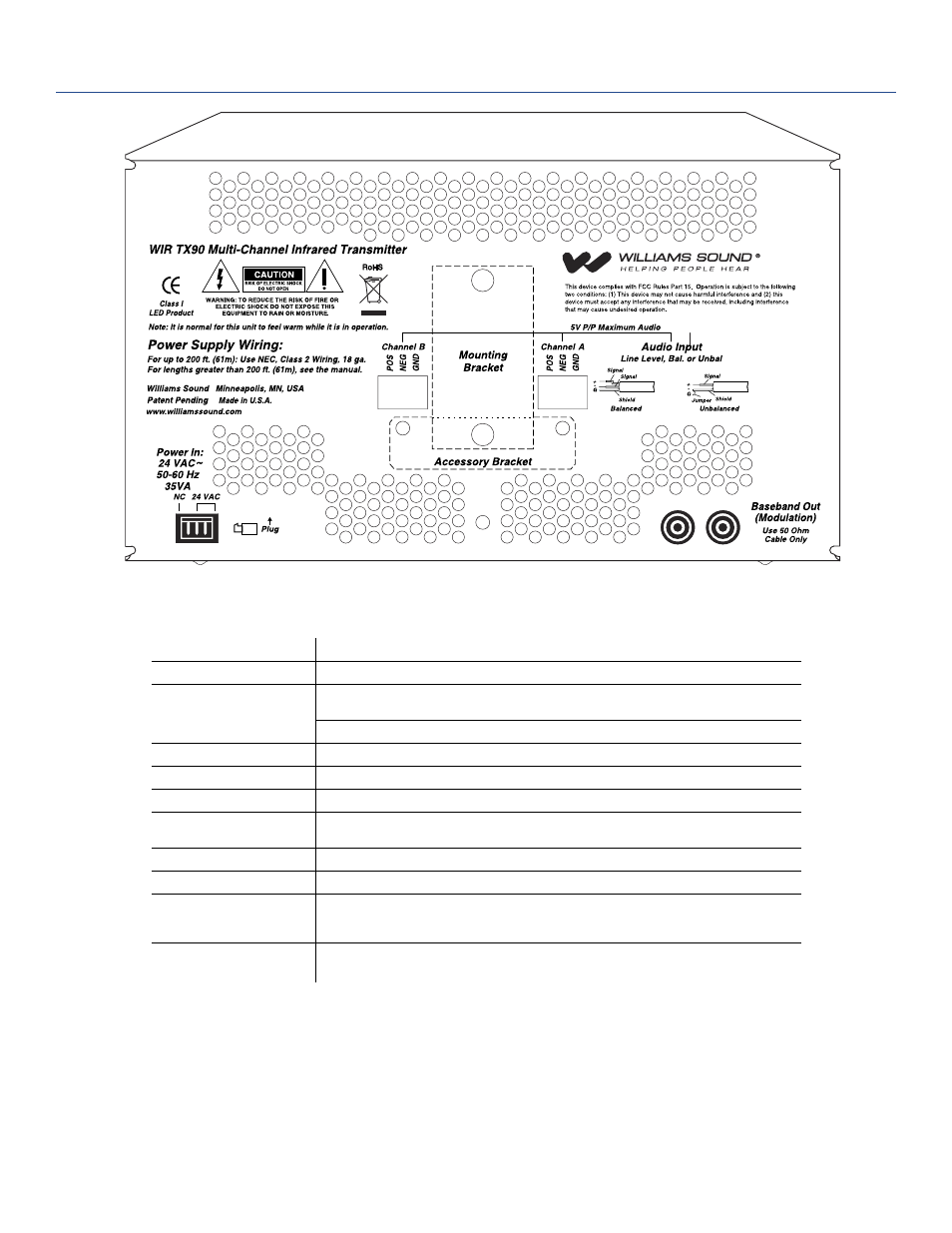

Fig 2:  TX90 Rear View

Power Input: 3-Pin Molex, 24 VAC, 50-60 Hz, 35 VA

Audio Input Connector: CH A and CH B, 3 wire Phoenix

Input Level: Balanced or unbalanced, 316 mVRMS (-10dBV) nominal, 5.7k input impedance; max input (over

volume range)

-21 to +7 dBV.

Baseband Output: BNC, 50 Ω, for use with TX9 only

Baseband Cable: RG 58 Coax, BNC connectors, maximum 1000’ (300m) length

Operating Requirements: 0-50º C (+32°F to 122°F) ambient temperature, non-condensing, non-corrosive atmosphere

Mounting Kits: Wall or Ceiling Mount: BKT 024 Omnidirectional mount;

Optional: Tripod Stands: SS-11 or SS-6

Warranty: 5 years on transmitter, 90 days on accessories

Approvals: CE, FCC, RoHS, WEEE

Compatible Receivers: WIR RX22-4 Four-Channel Receiver

WIR RX15-2 Two-Channel Receiver
WIR RX18 Two-Channel Receiver

Notes: Specifications:  Single end input, volume & tone controls at mid point, 1 kHz, 

“Music” Preset

NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!

SoundPlus® Infrared Transmitter
