Dimensions, Weight: 11.25” W x 6.25” H x 2.125” D (28.6 cm x 15.9 cm x 5.4 cm), 1.8 lbs (0.8 kg)
Color: Black with white legends, black acrylic lens (Available in white)
Power Supply: Wall Transformer, 24 VAC, 50-60 Hz, 35 VA, 3-pin MOLEX Connector
North America: TFP 010, UL/CSA
Europe: TFP 027-01, 2-pin Schuko plug, CE
UK: TFP 027-02, 3-pin UK plug, CE
Power Cable: NEC Class 2 wiring, two-conductor, 18 ga., 200’ (61m) max. length
Modulation: FM Wideband, +50kHz deviation max., 50uS pre-emphasis
Carrier Frequency: Channel A: Selectable, 2.3/2.8 MHz,
Channel B: Selectable, 3.3/3.8 MHz
Emitter IR Power: 3.5 watts
Coverage Area: 28,000 sq. ft. (2600 sq. m) in single channel mode when using the RX22-4 Receiver
18,000 sq. ft (1700 sq. m) in two channel mode when using the RX22-4 Receiver
11,000 sq. ft (1000 sq. m) in four channel mode when using the RX22-4 Receiver
3,500 sq. ft (325 sq. m) in single channel mode when using the RX15-2 Receiver
3,063 sq. ft (285 sq. m) in single channel mode when using the RX18 Receiver
(See coverage area diagrams)
Signal-to-Noise Ratio: >75 dB, +3dB
Frequency Response: 80 to 15,000 Hz, electrical response
Total Harmonic Distortion: Less than .2%, electrical response at 1kHz
Compression: Music preset 1:1, Voice preset 1.5:1, Hearing Assist preset 2:1
Auto Carrier Shut-Off: 20 minute timer shuts off carrier when no audio is present
WIR TX90 Transmitter:
Power Indicator: Red LED
Audio Volume Level
Controls:
CHA and CHB Input Level, press to select, 28 dB adjustable range
Audio Indicators: CHA and CHB Audio Level, yellow LED, flash
Carrier LEDs: 2 green LED carrier “on” indicators
Phones Output: 3.5mm TRS headphone jack. CH A tip, CH B ring on jack, 32 ohm headphone (min)
Application Preset: Music, Voice, Hearing Assist. Frequency response; Music: Flat; Voice: Mid-range boost; Hearing Assist:
High frequency boost
Tone Control: Press to select, 21 dB adjustable range (1 kHz between low boost/hi-cut and low cut/hi boost).

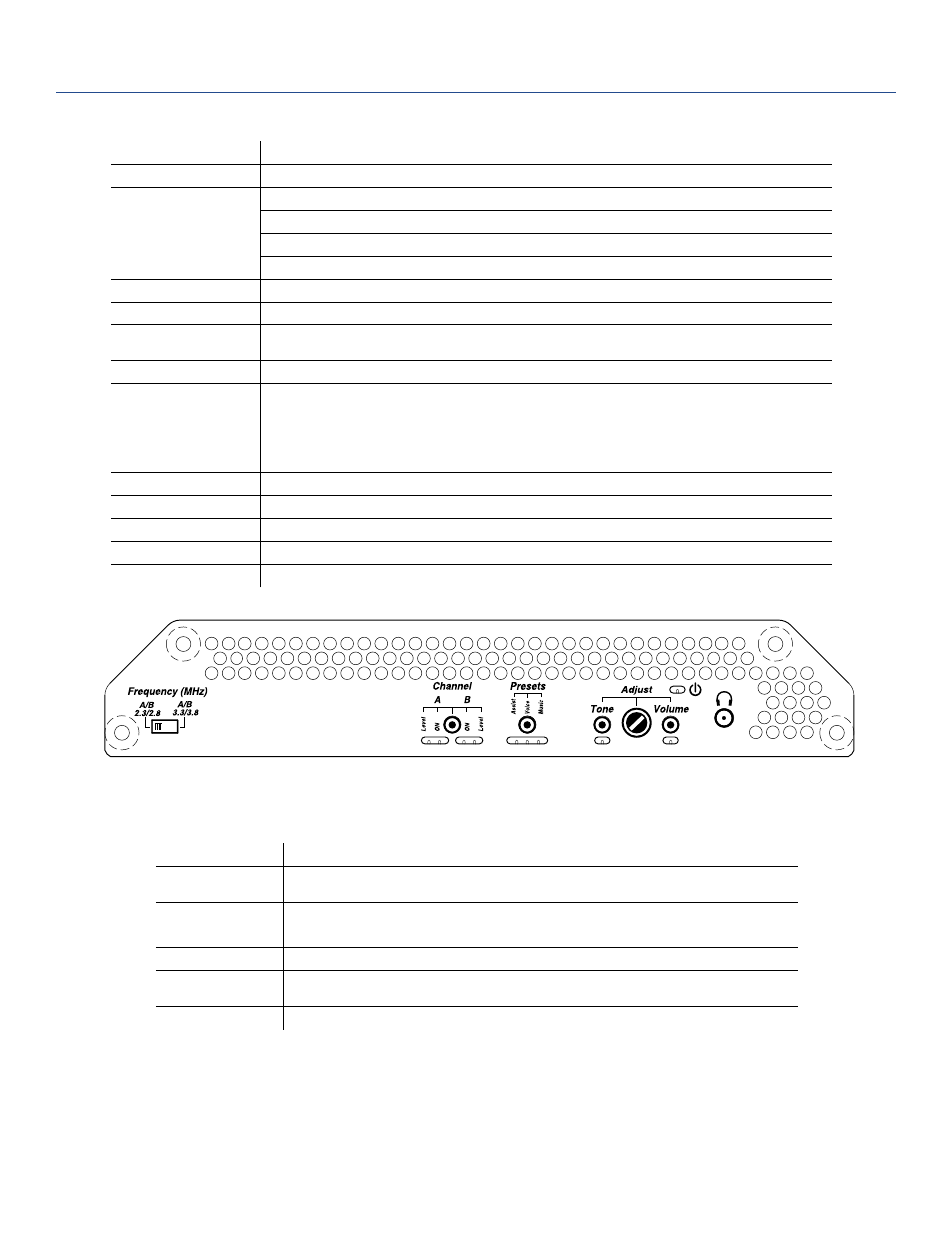

Fig. 1: TX90 Bottom View:
