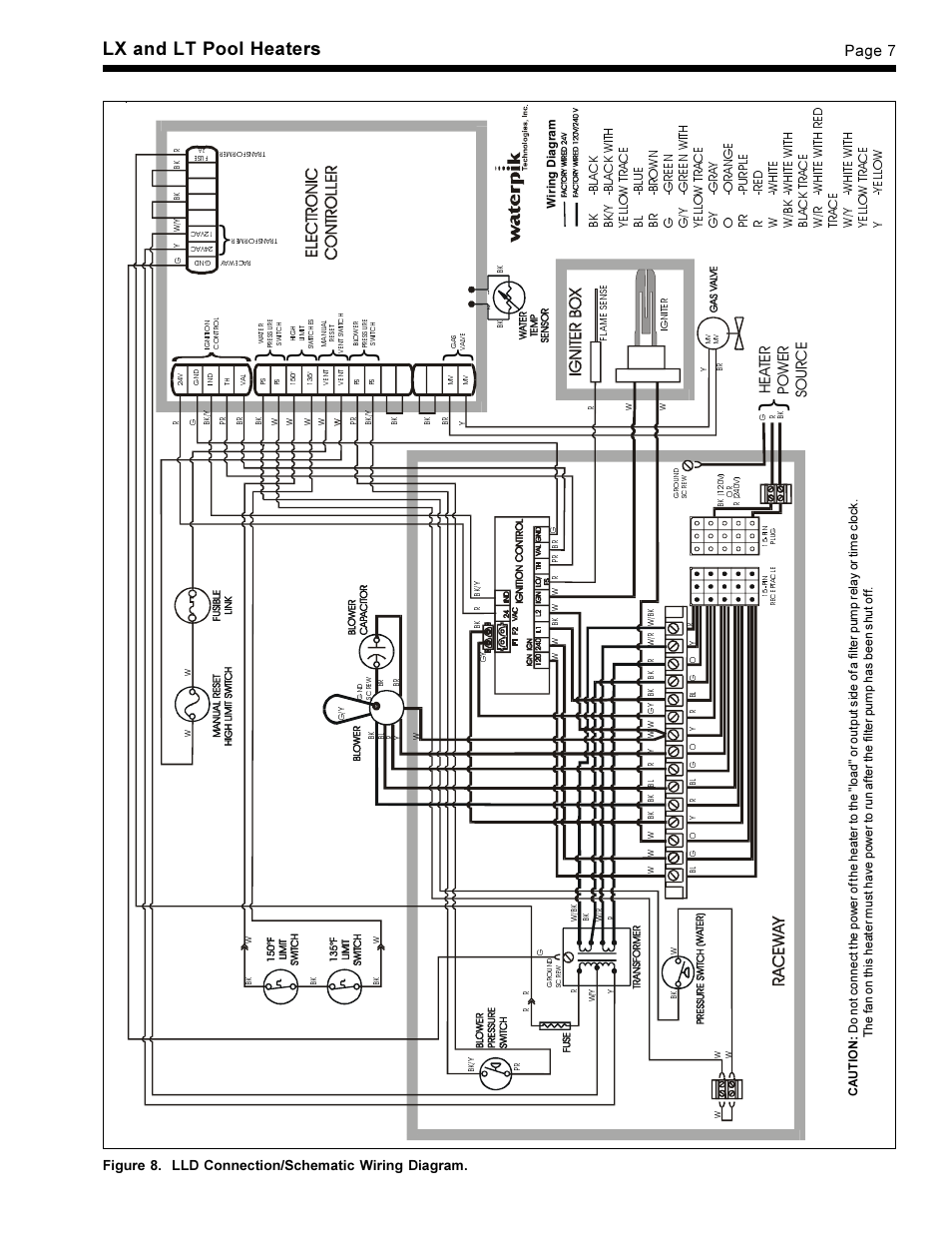

Lx and lt pool heaters, Page 7, Figure 8. lld connection/schematic wiring diagram – Waterpik Technologies pool/spa heater User Manual

Lx and lt pool heaters, Page 7, Figure 8. lld connection/schematic wiring diagram | Waterpik Technologies pool/spa heater User Manual | Page 9 / 32
