Pro Hood Liner Installation 12

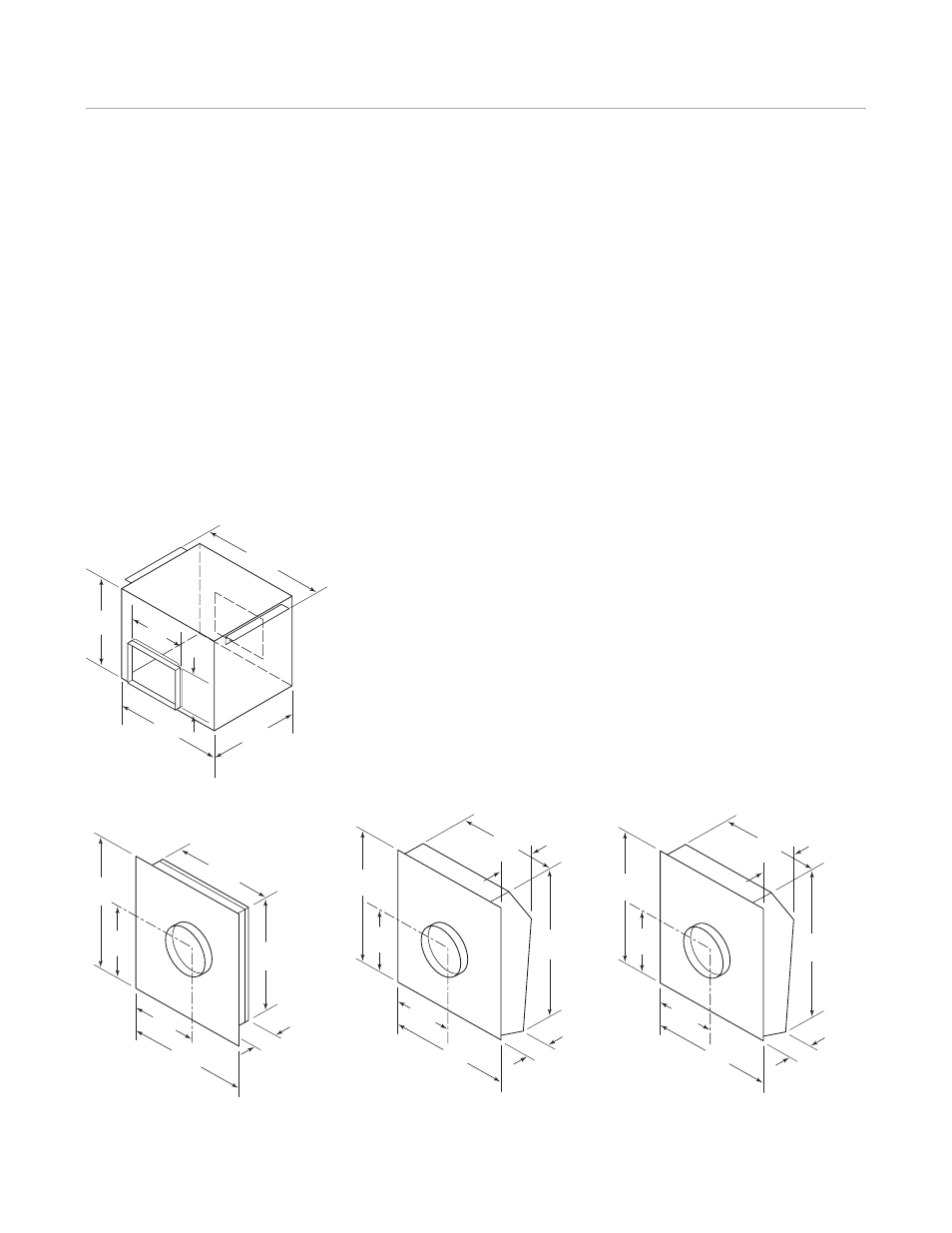

IN-LINE AND REMOTE BLOWER DIMENSIONS
18"
(457)
22"
(559)
24 7/8 "
(632)
12"
(305)
18"
(457)
8"
(203)
1100 CFM in-line blower.
900 CFM remote blower. 1500 CFM remote blower. 1200 CFM remote blower.
24 1/2 "
(622)
15 1/2 "
(394)
28 1/4 "
(718)
20 3/4 "
(527)
24 3/4 "
(629)
14"
(356)
4 3/4 "
(121)
10" (254)
DIAMETER
14 3/4 "
(375)
29 1/2 "
(749)
29 1/2 "
(749)
18" (457)
22"
(559)
10 1/8 "
(257)
7 1/4 "
(184)
10"
(254)
10" (254)
DIAMETER
14 3/4 "
(375)
29 1/2 "
(749)
29 1/2 "
(749)
21" (533)
25"
(635)
10 3/8 "
(264)
7 1/4 "
(184)
10"
(254)
10" (254)
DIAMETER
In-Line and Remote Blowers
BLOWER INSTALLATION
IMPORTANT NOTE: Refer to specific installation instruc-
tions provided with each blower assembly for additional
mounting and wiring instructions.
Locate the blower so that the length of the duct run and
number of elbows and transitions are kept to a minimum.
The duct run should be no longer than 50' (15 m) . Remote
blowers should be located between wall studs or roof
rafters. Avoid pipes, wires and other ductwork.
Allow enough space for transitions needed between the
blower and connecting ductwork. For best performance,
locate transitions nearest the blower.
Refer to the illustrations below for overall dimensions of
Wolf in-line and remote blowers. Installation instructions
shipped with each Wolf ventilation product provide
detailed specifications. These instructions can also be
found on our website, wolfappliance.com/specs.
