Pro Hood Liner Installation 11
wolfappliance.com/specs
Internal Blower
BLOWER INSTALLATION
IMPORTANT NOTE: Refer to specific installation instruc-
tions provided with each blower assembly for additional
mounting and wiring instructions.
1) Engage the blower mounting tab into the hood liner top
plate mounting slot. Make sure the blower tab and
mounting slot are aligned properly front to back.
2) Secure the blower with the weld stud at the front of the
blower and hood liner top plate and the nut (included
with blower). Verify that the blower discharge aligns
with the top plate discharge cut-out of the hood liner.
3) Once the hood liner installation is complete, plug the
blower power cord(s) into receptacle(s) located near
the center of the hood liner shell. Use the clips on the
interior of the hood liner to secure excess power cord.
IMPORTANT NOTE: Before turning electrical power on to
the ventilation hood liner, make sure the blower is off.
MOUNTING
SLOT
TOP / BACK
PLATE
WELD STUD
BLOWER
HOUSING
NUT
MOUNTING
TAB

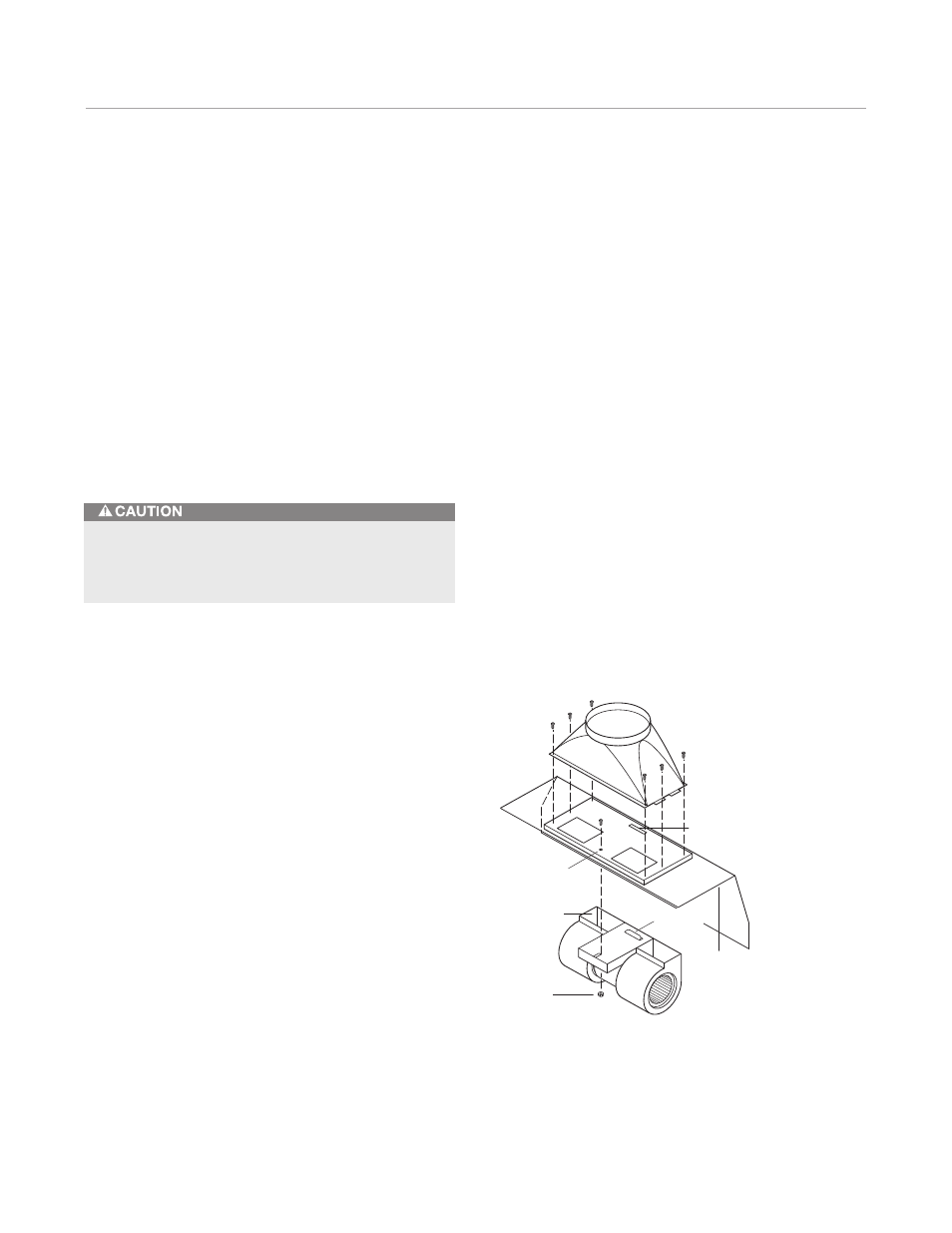

Internal blower assembly.
Blower Assemblies
Pro ventilation hoods are shipped without the blower
assembly. Internal, in-line and remote blowers are avail-
able through your authorized Wolf dealer. For local dealer
information, visit the find a showroom section of our
website, wolfappliance.com.
The blower will vary in size and is dictated by the cooking
surface, the volume of air that needs to be moved and the
length of the duct run. Refer to ventilation recommenda-
tions in the Wolf design guide.
IMPORTANT NOTE: Use wire connectors or wire nuts
approved by UL or C/UL.
To reduce the risk of fire and electric shock, install this
ventilation hood liner only with a blower manufactured
by Wolf.
