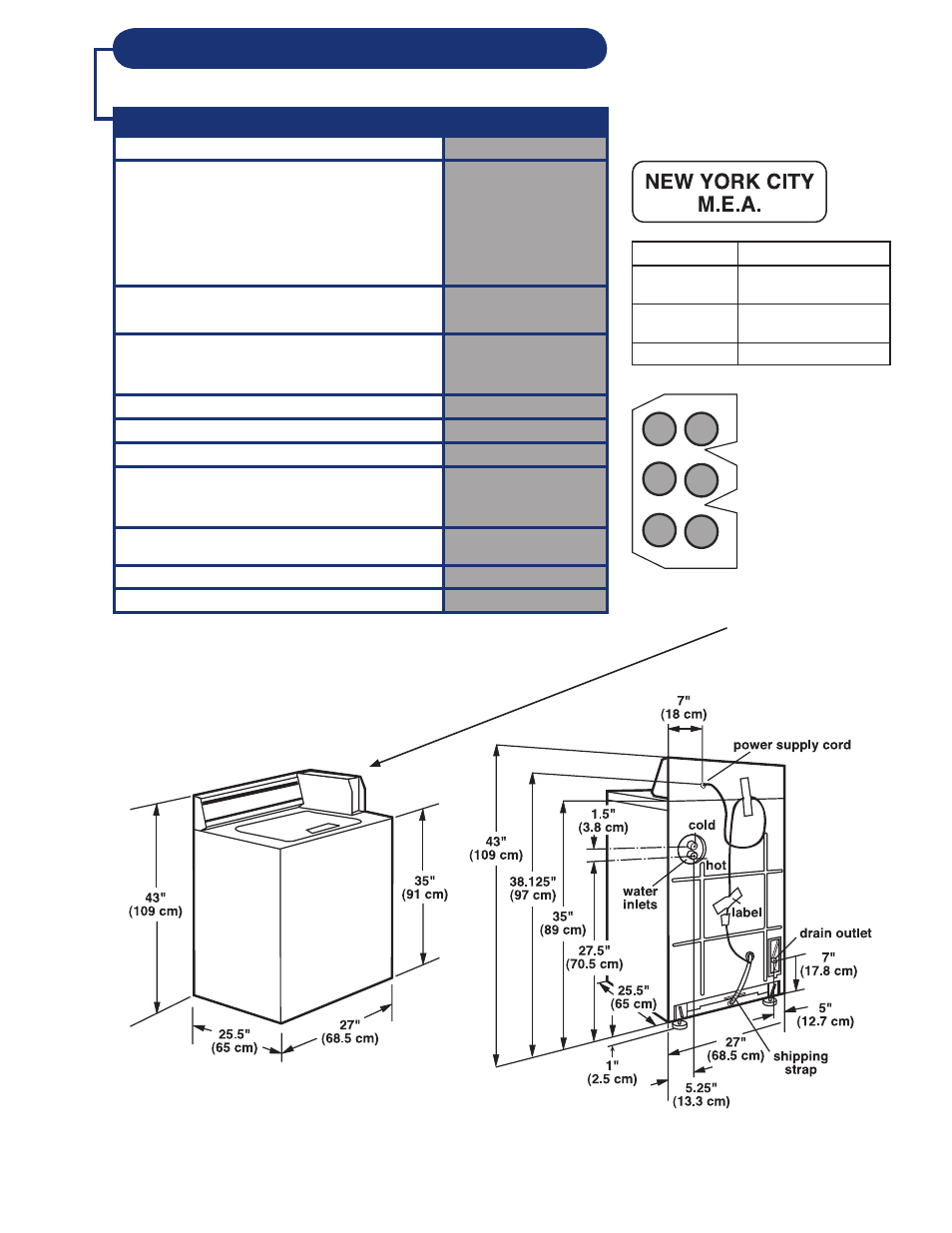

WASHER FRONT VIEW WASHER BACK VIEW
WASHER SPECIFICATIONS
MODEL NUMBER CAM2762TQ
GENERAL INFORMATION
Accepts the following payment systems: Coin Slide, Retrofit Coin
Drop, Retrofit Card Reader, and OPL Push-to-Start
Stainless steel look push button console, hidden lid switch, porce-
lain finish top and lid, galvanized, extra thick front panel, side and
back panels, improved meter case, front panel lock blank factory
installed. Commercial-Grade, color-coded water inlet hoses with
brass couplings and rubber drain hose included
High Efficiency Deep Rinse,
Electronic Temperature Control,
Super Capacity
3.2 Cu. Ft. Basket,
High and Low
Water Level Settings,
2007 Federal
Energy Compliant
MOTOR
120-Volt 1 ⁄
2
‑HP Direct‑Drive with Built‑In Overload Protector
Two-Speed Advantage
with True Gentle Wash
High Speed Spin Only!
AGITATION STROKES PER MINUTE/AMPERAGE 180 SPM/High
(5.0 Amps No Load)
120 SPM/Low
(5.0 Amps No Load)
MAXIMUM RATED CURRENT 9.8 Amps (120‑Volt)
MOTOR RPM 1725 High, 1140 Low
SPIN RPM 640 High
ELECTRICAL REQUIREMENTS
Subject to Local Codes
120‑Volt, 60 Hz., A.C.
Standard 15 Amps Breaker/Fuse
Branch Circuit for Each Washer
DIMENSIONS
See Illustration Below
43" H (at Metercase Top), 35" H
(at Lid), 27" W, 25.5" D
SHIPPING WEIGHT (EST.) 184 Lbs.
BASKET VOLUME 3.2 Cu. Ft. (18 Lbs. UL)
Energy information is available online at www.whirlpoolcommerciallaundry.com/products.
PIN FUNCTION
5 to neutral Remote cycle start with
remote relay closure
1 to 4 Changes state every
30 seconds
3 to 6 Cycle Counter
E‑Z Wiring Harness Feature
Connector for connection to money
acceptors (located under top cover)
5
1 4
3 6
COMMERCIAL WASHER SPECIFICATIONS
