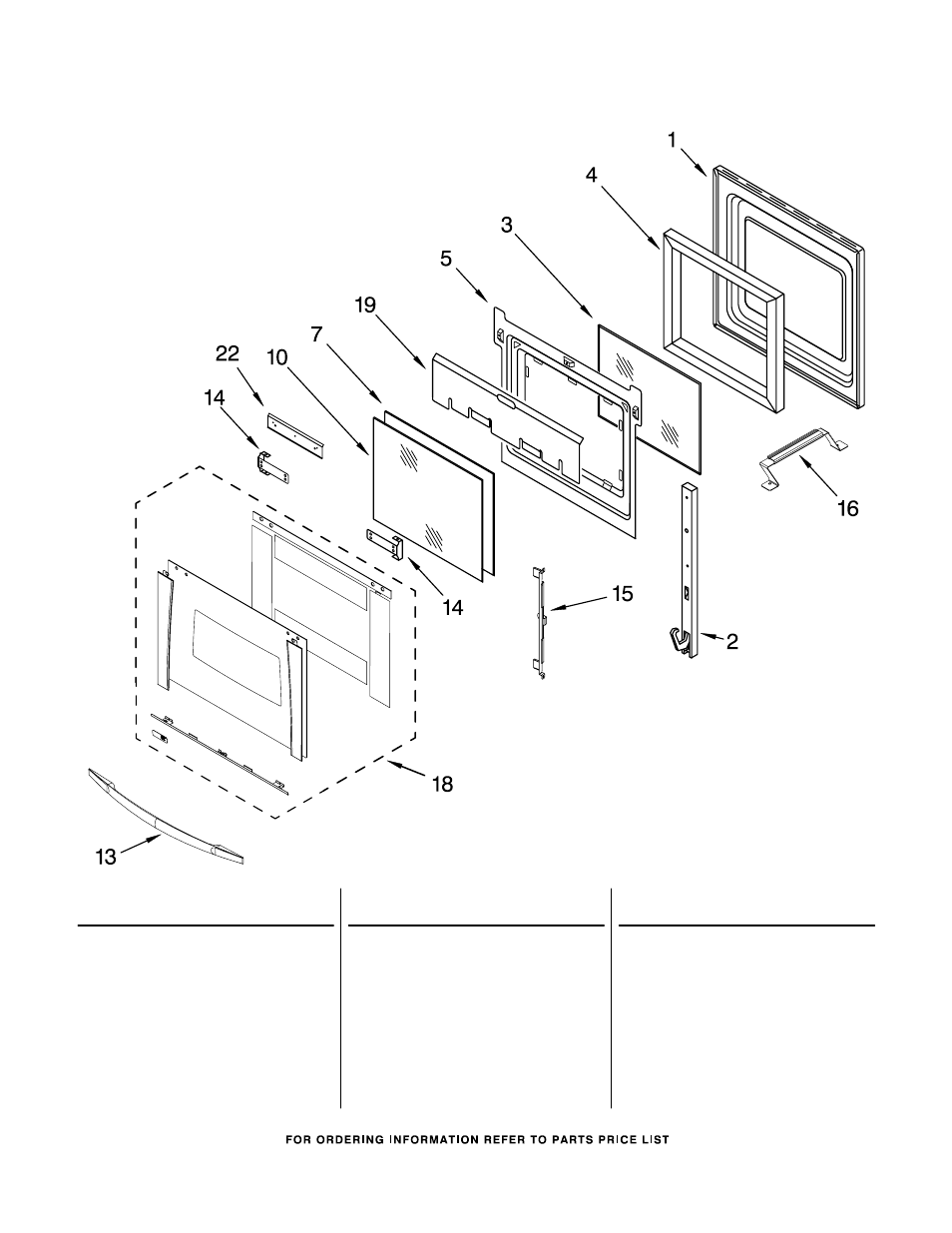

OVEN DOOR PARTS
4
For Models:GMC275PRB00, GMC275PRQ00, GMC275PRT00, GMC275PRS00
(Black) (White) (Biscuit) (S.Steel)
8186314
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
8303699 Door Liner
2
Hinge, Door
8300575 Right Hand
8300576 Left Hand
3
4449253 Glass, Inner
4
4451721 Insulation, Door
5
4457131 Retainer, Glass
4449809 Screw
7
9759224 Glass, Inner
4449809 Screw
10
9759227 Glass, Inner
13
Door Handle
8302810 Black Model
8302811 White Model
8302812 Biscuit Model
8303163 S.Steel
14
8303166 Bracket,Handle
4451040 Screw
3400832 Screw
15
9759229 Bracket(2nd Glass)
16
9759230 Bracket(3rd Glass)
18
Assy.,Door Glass
8303299 Black Model
8303305 White Model
8303309 Biscuit Model
8303287 S.Steel Model
19
4457102 Shield, Heat
4449809 Screw
22
4457113 Shield, Heat (Btm)
3400832 Screw
