- 7 -
www.vivotek.com
Installation

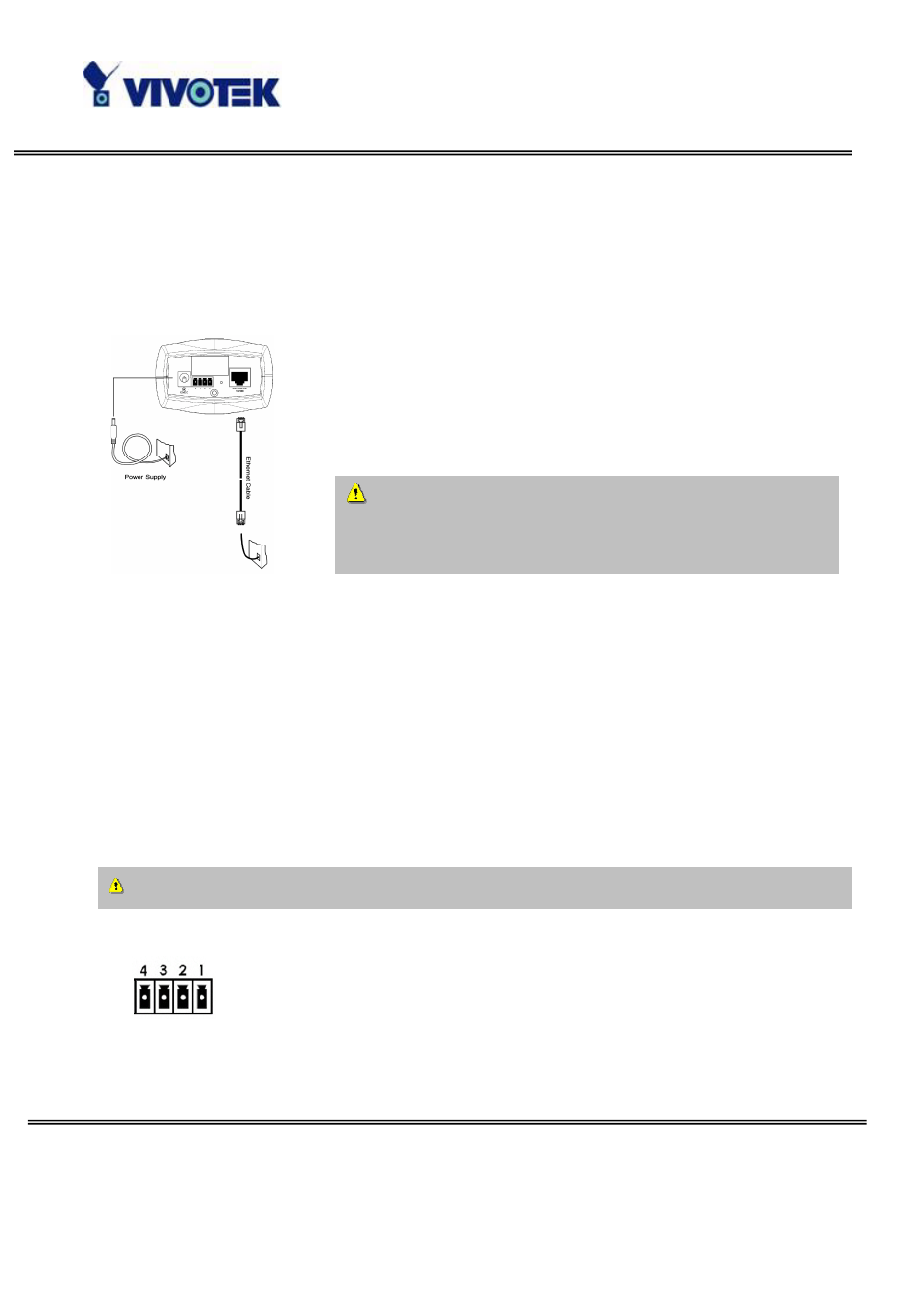

Hardware installation
Please verify that your product package contains all the
accessories listed in the foregoing Package Contents.
Depending on the user’s application, an Ethernet cable
may be needed. The Ethernet cable should meet the specs
of UTP Category 5 and not exceed 100 meters in length.
Upon powering up, the device runs through a self-test procedure and the front LEDs will
blink between green and red a few times. If self-test passes, the LED will be green and
the Network Camera will standby for getting IP address. After getting IP Address, the LED
will blink green every second. If self-test fails the red LED will blink several times. Refer
to Appendix A for troubleshooting.
The Network Camera provides a general I/O terminal block with one digital input and one
relay switch for device control. Pin 1 and pin 2 can be connected to an external sensor
device and the state of voltage will be monitored from the initial state 'LOW'. The relay
switch of pin 3 and pin 4 can be used to turn on or off the external device.
1 DI- INPUT (Initial state of DI is low)
2 DI+ INPUT (Max. 50mA, 12VDC)
3 SW_COMMON OUTPUT (open from SW_OPEN at initial state)
(close with SW_OPEN when set DO to ON)
4 SW_NOPEN OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC
Connect the power adapter jack to the Network
Camera before plugging in to the power socket. This will
reduce the risk of accidental electric shock.
Consult with the dealer of the peripherals for correct installation.
