User's Manual - 61

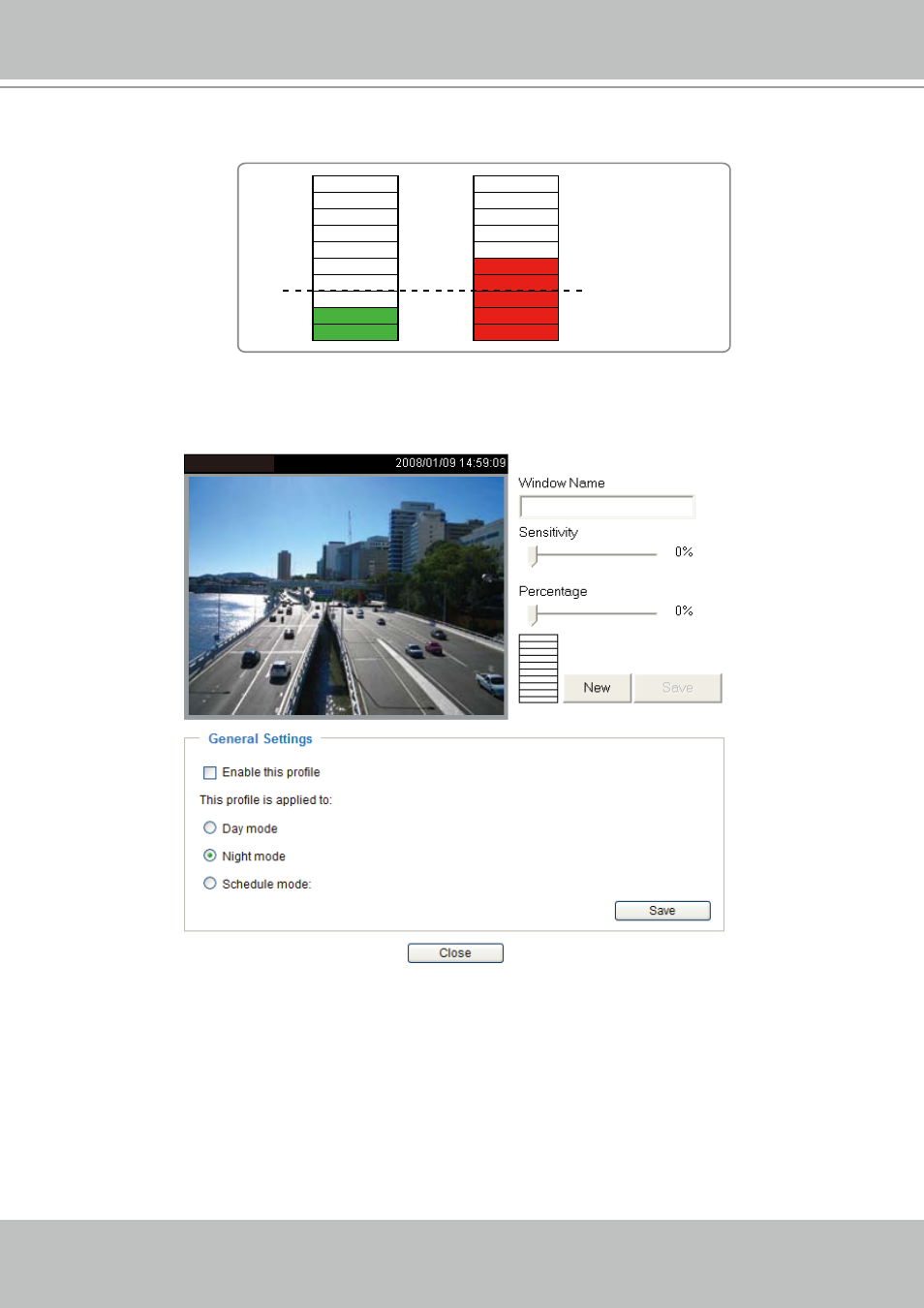

A green bar indicates that even though motions are detected, the event will not be triggered because the
image variations are still falling under the defined threshold.
If you want to configure another motion detection setting for day/night/schedule mode, please click
Profile to open Motion Detection Profile Settings page as below� A total of three motion detection
windows can be configured on this page, too.
Please follow the steps beolw to setup a profile:
1� Create a new motion detection window�
2� Check Enable this profile�
3. Select the applied mode: Day mode, Night mode, or schedule mode. Please manually enter a range of
time if you choose Schedule mode�
4� Click Save to take effect and then click Close to quit the page�
This motion detection window will also show up on the Event Settings page. You can go to Application >
Event Settings > Trigger to choose it as a trigger source� Please refer to page 69 for detailed information�
Percentage = 30%
Video(TCP-AV)
