United States Stove Company 6035 - Manual (Page 13)

USSC 13
24” Min.
Flashing
Rain Cap or Termination Cap
Storm Collar
Wall Thimble
Fresh Air Intake
(Optional 60FAK)
With 90 Degree
Elbow or Hood
(Pest Gaurd, 3/8”
Mesh Maximum)
Clean Out Cover
Tee
Wall Thimble
6” Min.
Non Combustible Hearth Plate
Support Bracket
Every 5 Feet 1” Min.
Keep Attic
Insulation Away
From Pipe

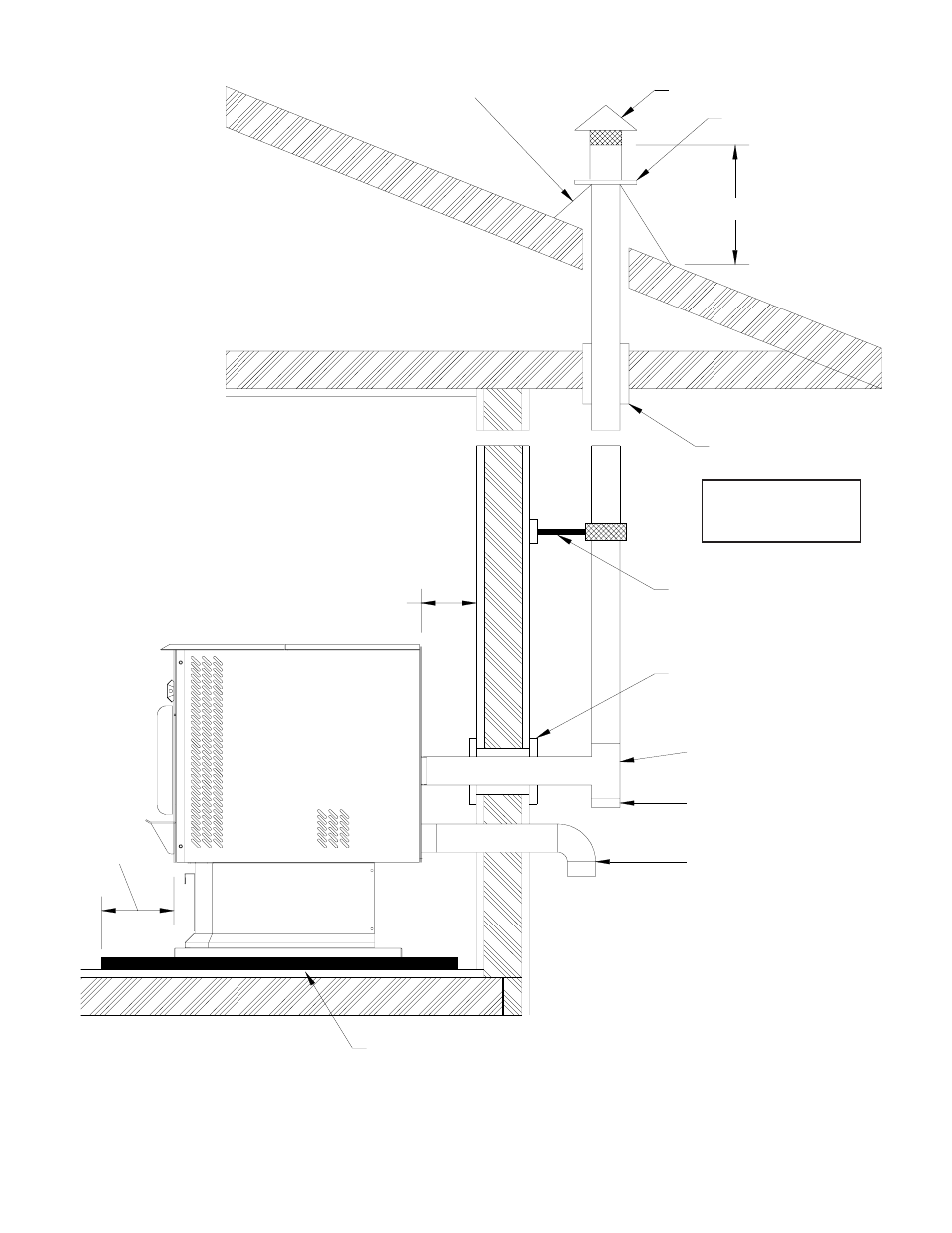

THROUGH THE WALL, VERTICAL PIPE INSTALLATION WITH TERMINATION
THROUGH THE ROOF
The Hearth Pad is not required under the unit if the floor is noncombustible but is required 6 inches (152mm) beyond the
front of the unit and 6 inches (152mm) beyond each side of the door.
NOTE:
Vertical Pipe must be
4” PL Above 6’
