ALCOVE INSTALLATION REQUIREMENTS
The American Harvest is approved for the standard alcove height of 52 inches, or for a reduced alcove height with a
minimum of 19 inches from the top of the stove (clearance for opening top lids). The maximum alcove depth is 48 inches
and the listed clearances are a minimum of 6” on the left side, 2” on the right side and 9” to the rear. The 19” clearance is
only needed for opening the back lid. If the front lid protrudes out of the opening, a 1” clearance is all that is required.

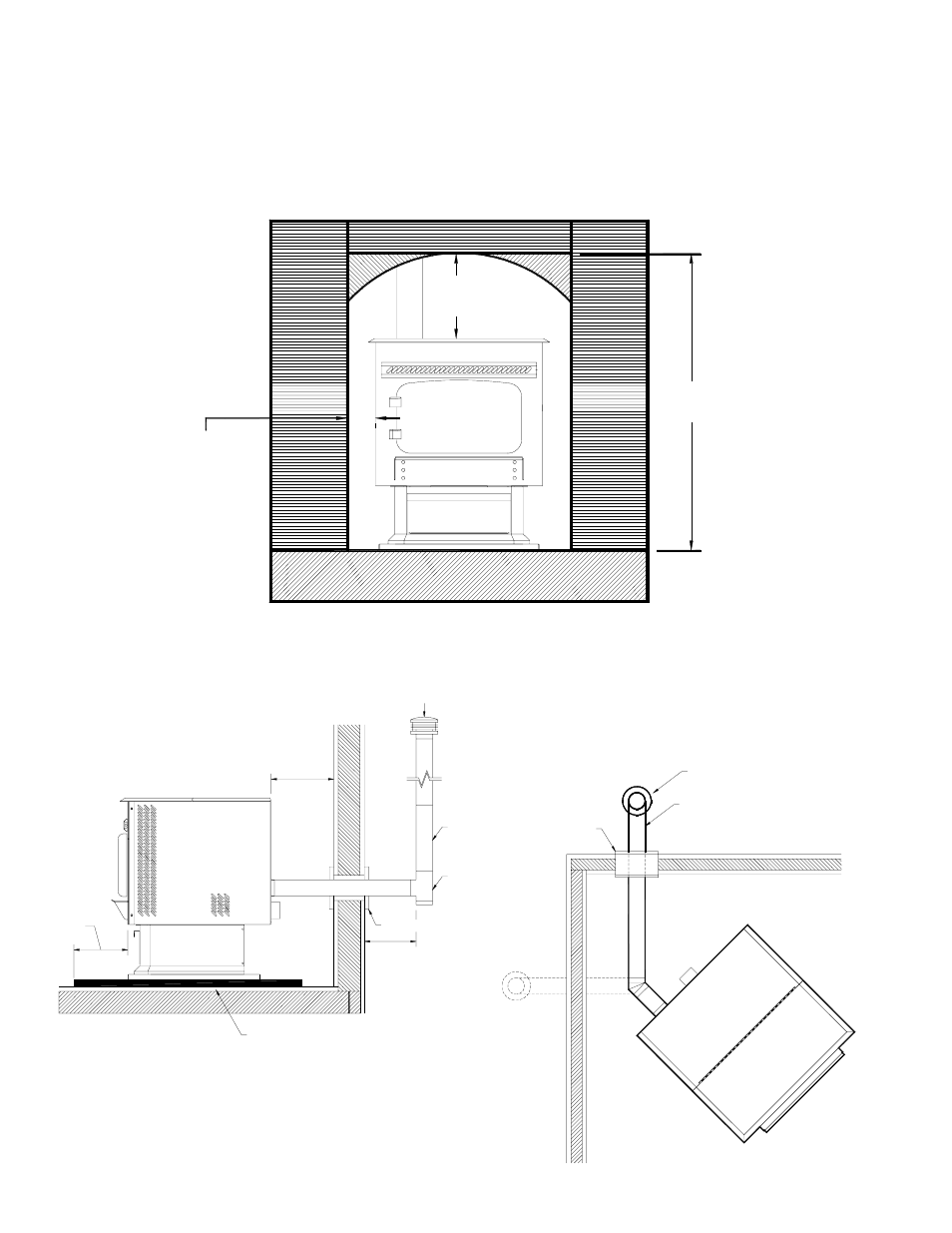

ALCOVE CLEARANCE RECOMMENDATIONS
ALCOVE-THROUGH THE WALL INSTALLATION REQUIREMENTS
The stove is approved for horizontal exhaust, however, we recommend that the exhaust goes vertically for five feet, or above
the eaves of the house. This will help draw smoke out of the stove in the event of a power failure.
2” Min. on Right Side;
6” Min. on Left Side
52” Min.
9” min.
6” min.
12” min.
Wall Thimble
2 ft. Horizontal Pipe
Wall Thimble
Type “PL” Vent
Optional
Direction
Termination Cap
Corner Installation
Outside Wall Termination
Non Combustible
Hearth Pad
Termination Cap
Clean-out
Tee
4’ Minimum
Vertical Pipe
See statement
above.
