4
Keep the chimney connection as short as possible. The
heater must have its own chimney flue. Do not connect
any other appliance to the same flue. If there is no chim-
ney where you wish to place the heater, you can use a UL
Listed Type 103 HT, Solid Fuel, Factory Built Chimney.
Place the heater on solid masonry or solid concrete.
When the heater is used on a combustible floor, use a
non-combustible floor protector having a thermal con-
ductivity of K=0.45 BTU in./ft. 2 hr.deg. F. with 28 gauge
sheet metal or a UL Listed Floor Protector. Have the floor
protector with the specified dimensions.
Check Figures 2, 3, & 4. You should have at least the
clearances shown from the heater and the connector pipe
to combustible surfaces. If you have a solid brick or stone
wall behind your heater, you can place the heater as close
as you wish to the wall. If the wall is only faced with brick
or stone, treat it as a combustible wall.
LOCATING THE ROOM HEATER
as a loCation is seleCteD, KeeP the FolloWinG in minD:

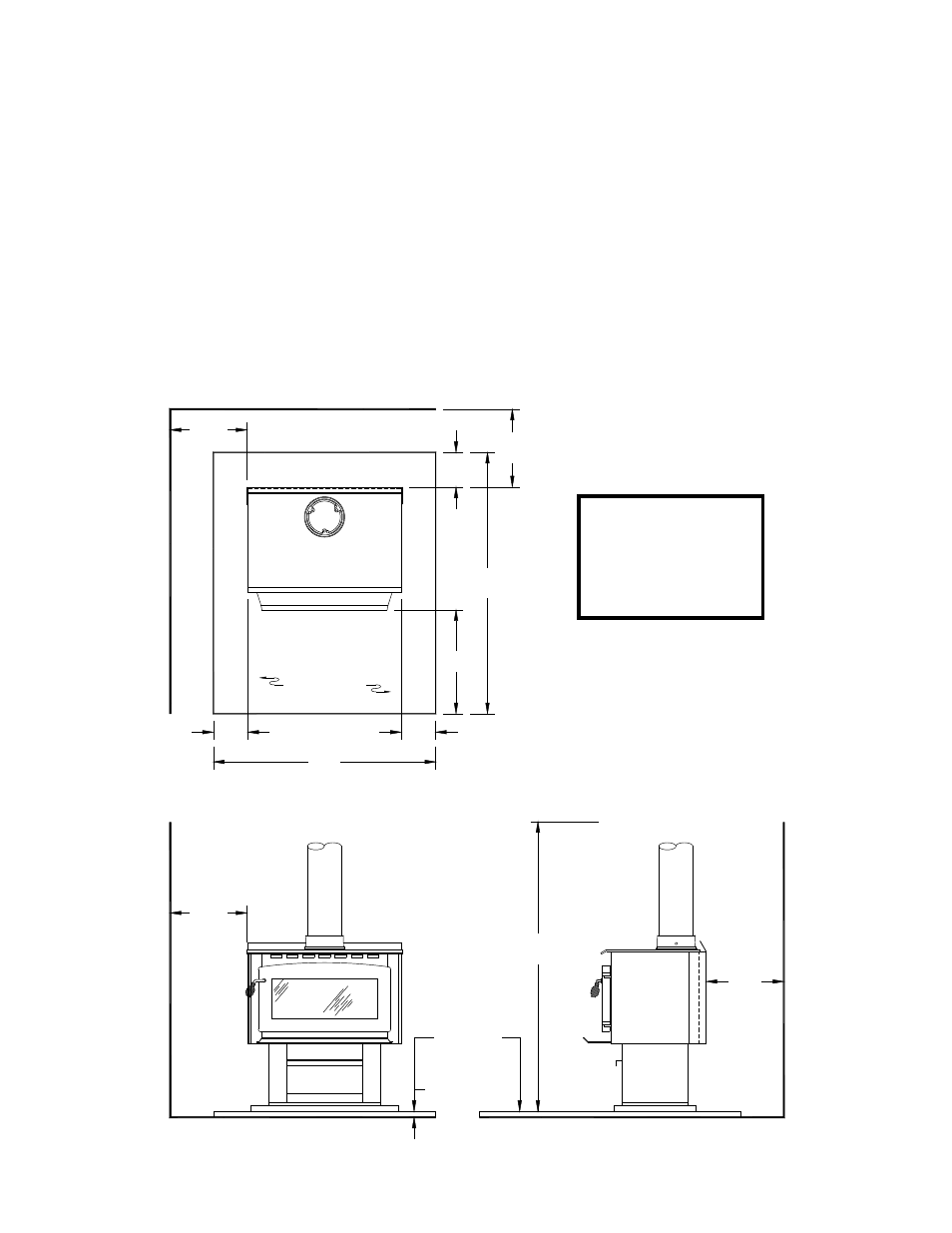

MINIMUM CLEARANCE TO COMBUSTIBLE WALLS
38⅝
26
24
6
18
6 6
45 / 5
16
BACK WALL
SIDE W
ALL
SIDE W
ALL
26
¼
FLOOR
PROTECTOR
7’
CEILING
24 SIDE W
ALL
FLOOR
PROTECTOR
TOP VIEW
(FIGURE 2)
FRONT VIEW
(FIGURE 3)
SIDE VIEW
(FIGURE 4)
MINIMUM CLEARANCES FOR CORNER
INSTALLATION IS 18 INCHES FROM
THE CORNERS OF THE HEATER TO
THE NEAREST WALL.
CAUTION
KEEP FURNISHINGS
AND OTHER COM-
BUSTIBLE MATERIALS
AWAY FROM THE
HEATER
