Quantum Atlas II - Manual (Page 5)

Atlas II
Jumper Settings

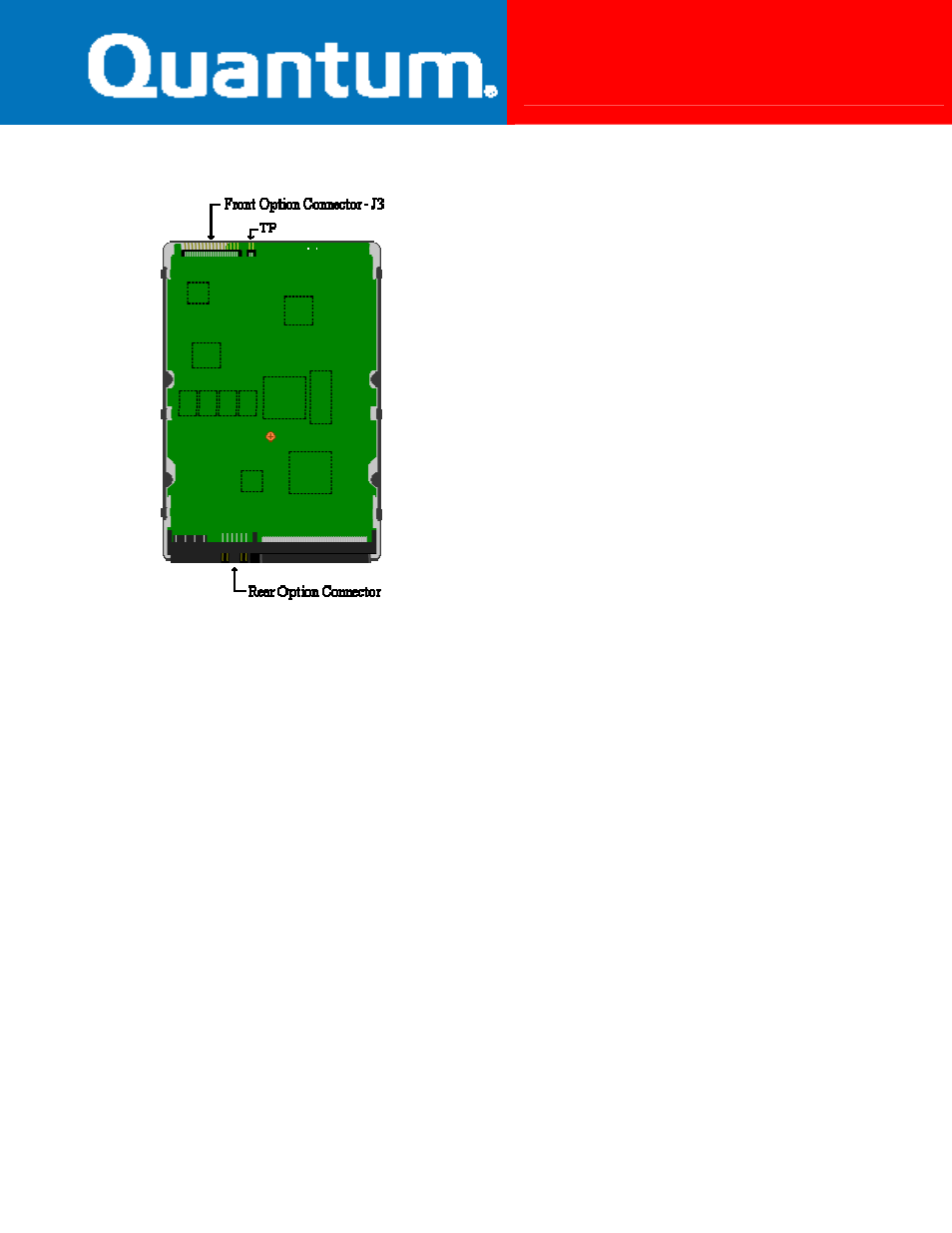

68-pin Jumper Settings
Jumper Settings
The following describes the jumper options and settings available on the Maxtor® Atlas™ II disk drive. Maxtor Atlas II was
developed by Quantum Corporation prior to its merger with Maxtor.
Termination Enable (TE)
Enable termination TE jumper on
Disable termination TE jumper off
Note: Termination enable available on SE version only.
Termination Power (TP)
Enable termination power TP jumper on
Disable termination power TP jumper off
SCSI ID (A3, A2, A1, A0)
Set drive SCSI ID See ID settings table below
Delay Spin (DS)
Enable spin delay
Disable spin delay
SP jumper off
SP jumper on
5 of 8
