Page 36: Ethernet -5
Chapter 3
I/O Information
© National Instruments Corporation
3-5
Ethernet
Figure 3-4 shows the location and pinouts for the Ethernet connector on the
NI PXI-8184/8185. Table 3-4 lists and describes the Ethernet connector
signals.
AMP manufactures a mating connector, part number 554739-1.

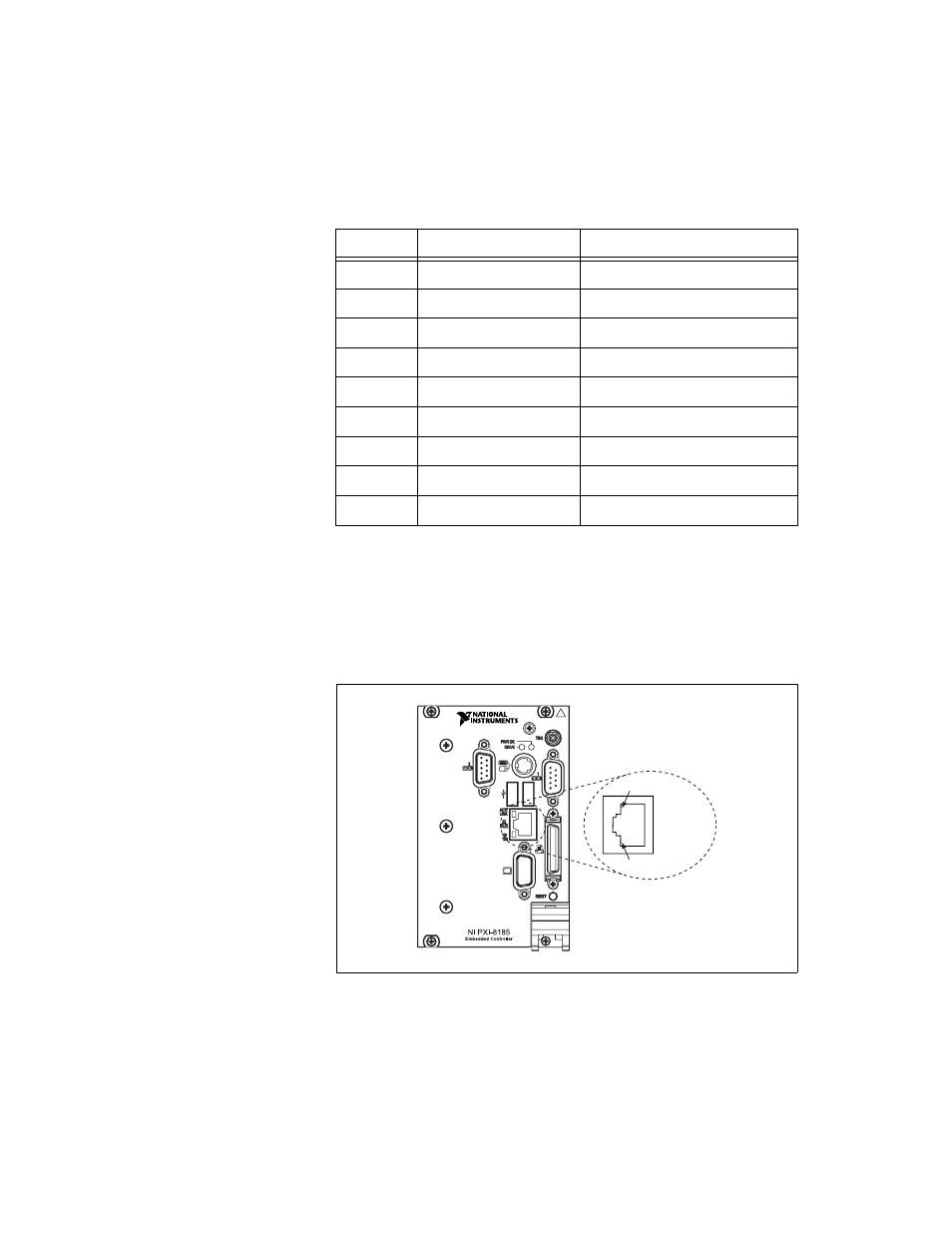

Figure 3-4. Ethernet Connector Location and Pinout
Table 3-3. COM1 and COM2 Connector Signals
Pin
Signal Name
Signal Description
1
DCD*
Data Carrier Detect
2
RXD*
Receive Data
3
TXD*
Transmit Data
4
DTR*
Data Terminal Ready
5
GND
Ground
6
DSR*
Data Set Ready
7
RTS*
Ready to Send
8
CTS*
Clear to Send
9
RI*
Ring Indicator
Ethernet
1
8
