Installation
17
For assistance, please call: 1-800-272-7033
“

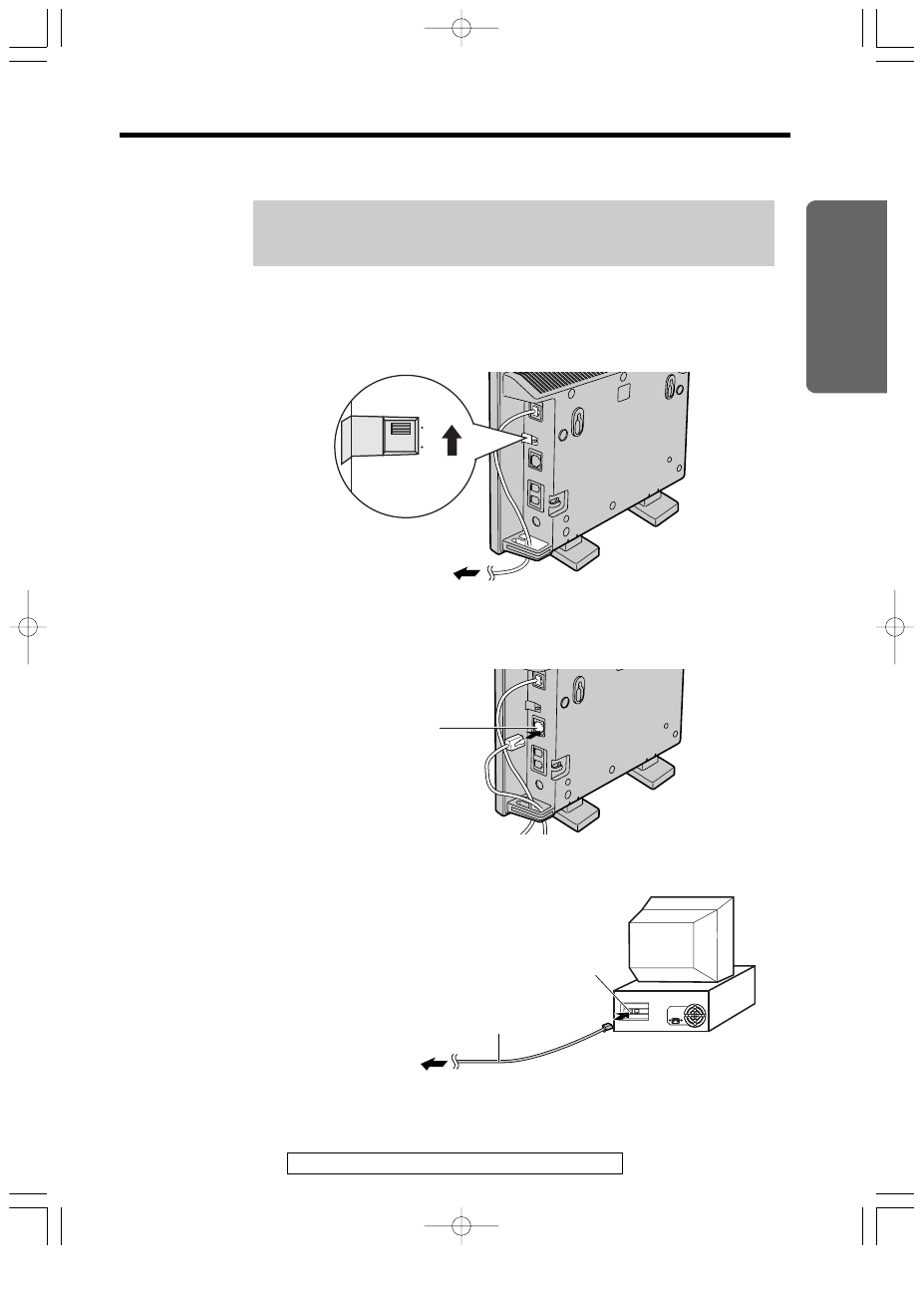

To connect a computer directly to the KX-HGW200:
1 Make sure the computer is turned off.
2 Set the HUB/PC switch on the KX-HGW200 to PC.
3 Connect the category 5 straight cable to
TO COMPUTER/ETHERNET HUB port of the KX-HGW200.
4 Connect the other end of the category 5 straight cable to the LAN port
of the computer.
HUB/PC switch
HUB
PC
To RJ-45 jack on
the cable/xDSL
modem
TO COMPUTER/
ETHERNET HUB port
Computer (Rear Side)
Category 5
straight cable
LAN port
To TO COMPUTER/
ETHERNET HUB port
of the KX-HGW200
Note:
If using an Ethernet connection, an Ethernet card and software have
to be installed properly on the computer first.
