AUDIO OUT

Connecting Personal Computers and Video Equipment

Connections with the AUDIO Jack

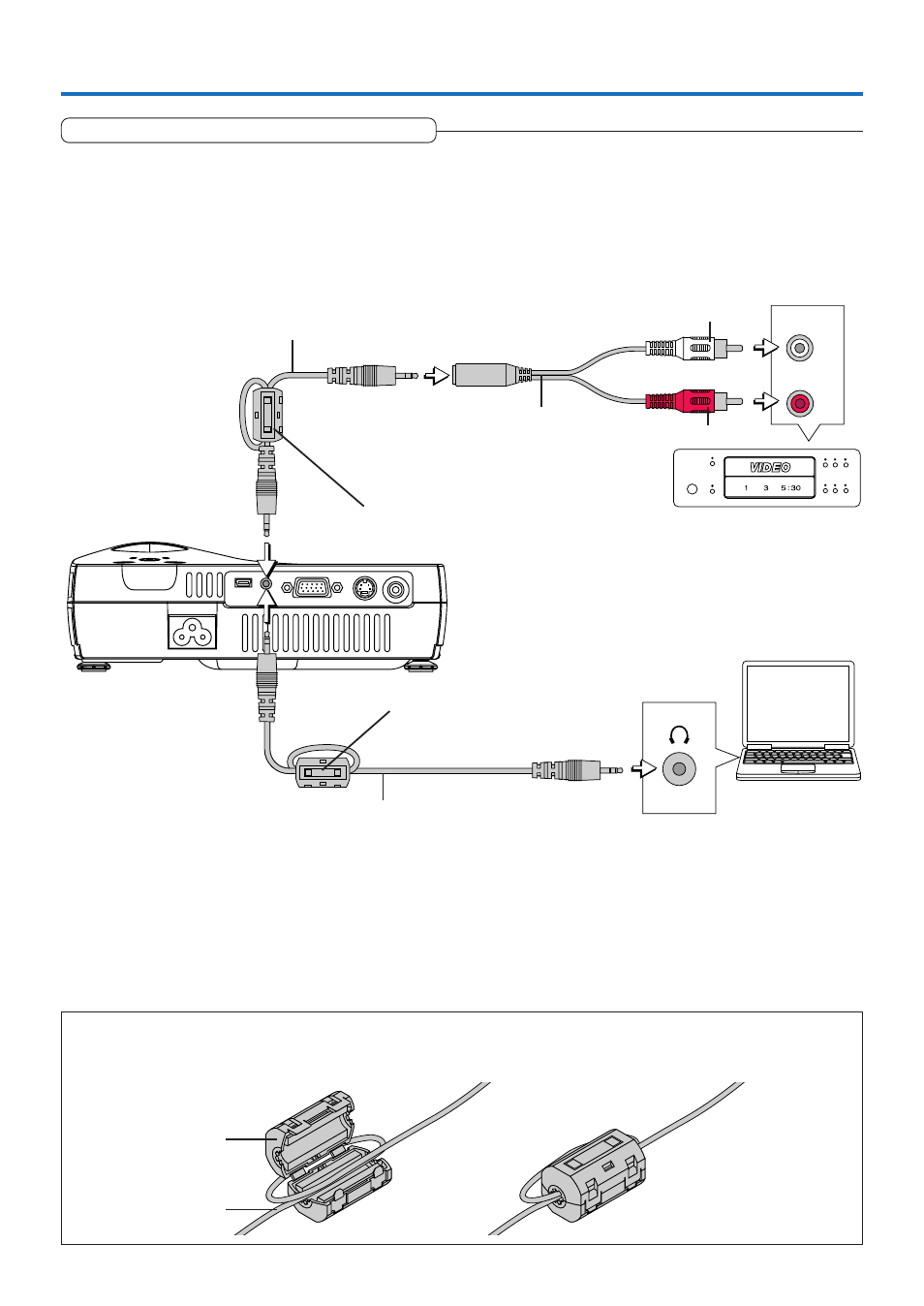

* Connect to the projector’s AUDIO jack using a commercially available audio cable. If the other device has an RCA phono type

audio jack, connect via a commercially available audio converter cable. Please attach the supplied ferrite core to the audio
cable as described below.

* The built-in speaker of the projector provides monaural audio. To enjoy convincing audio reproduction, please connect the

audio output of the video equipment to your audio system.

* The built-in speaker outputs the audio of the equipment connected to the AUDIO jack.

White

Red

Audio conversion cable
(Mini-jack/ RCA pin plug)
(Commercially available)

Audio cable (Mini plug)
(Commercially available)

Cable

Ferrite core

Mounting the Ferrite Core
Open the ferrite core, loop the cable through it, then close.

Ferrite core (Supplied item)
