Connector
The display uses the Samtec EHT-110-01-S-D or equivalent 2mm locking
connector. The mating connector is in the Samtec TCSD family of cable strips.
The proper connector, user-specified cable length and connector
configuration is supplied as a single unit. Consult your Samtec representative
(1-800-SAMTEC9) for the cable/connector options. Compatibility with non-
Samtec equivalents should be verified before use.
J1
Pin 1 Pin 19
(Viewed from
back of display)
Pin 1
Pin 2
Key
(Viewed from top of connector)

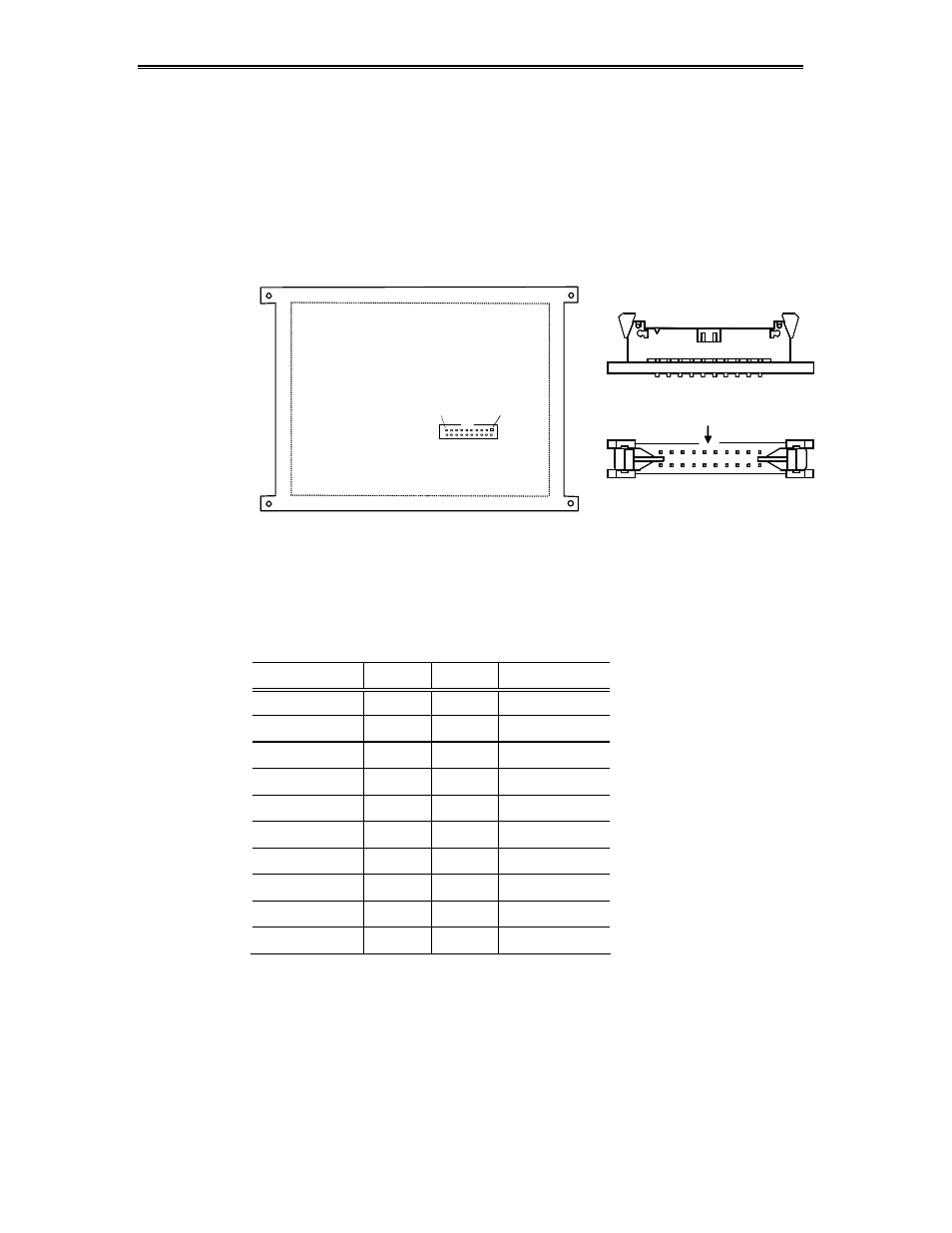

Figure: Data/Power Connector
J1 Connector Pin Assignment
Signal Pin Pin Signal
VH 1 2 VH
V/Q 3 4 DE
LUMA 5 6 LUM0
VS 7 8 LUM1
HS 9 10 GND
VCLK 11 12 GND
R0 13 14 GND
R1 15 16 GND
G0 17 18 GND
G1 19 20 SHUTDOWN
