Setting linkup with the switcher
This setting is used to link the unit with an optional switcher
(AW-HS50).
To link the unit with the switcher, the following settings must
be established in the unit.
IP address (switcher) setting
[SYSTEM]
menu  [SW IP ADR]
Assign information setting
[SYSTEM]
menu
 [SW CTL]
Link connection setting
[SETUP]
menu  [SW LINK]  [SWLINK]
Settings at the switcher
For details on the settings selected at the switcher,
refer to the Operating Instructions of the switcher.
  Switcher network settings
1
Set the MENU button to ON.
Press the MENU button to light its indicator.
2
Set PRESET MEMORY/MENU 10 button
(SYSTEM) to ON.
When the button is pressed and its indicator is lighted,
the [SYSTEM] menu is displayed on the LCD panel.

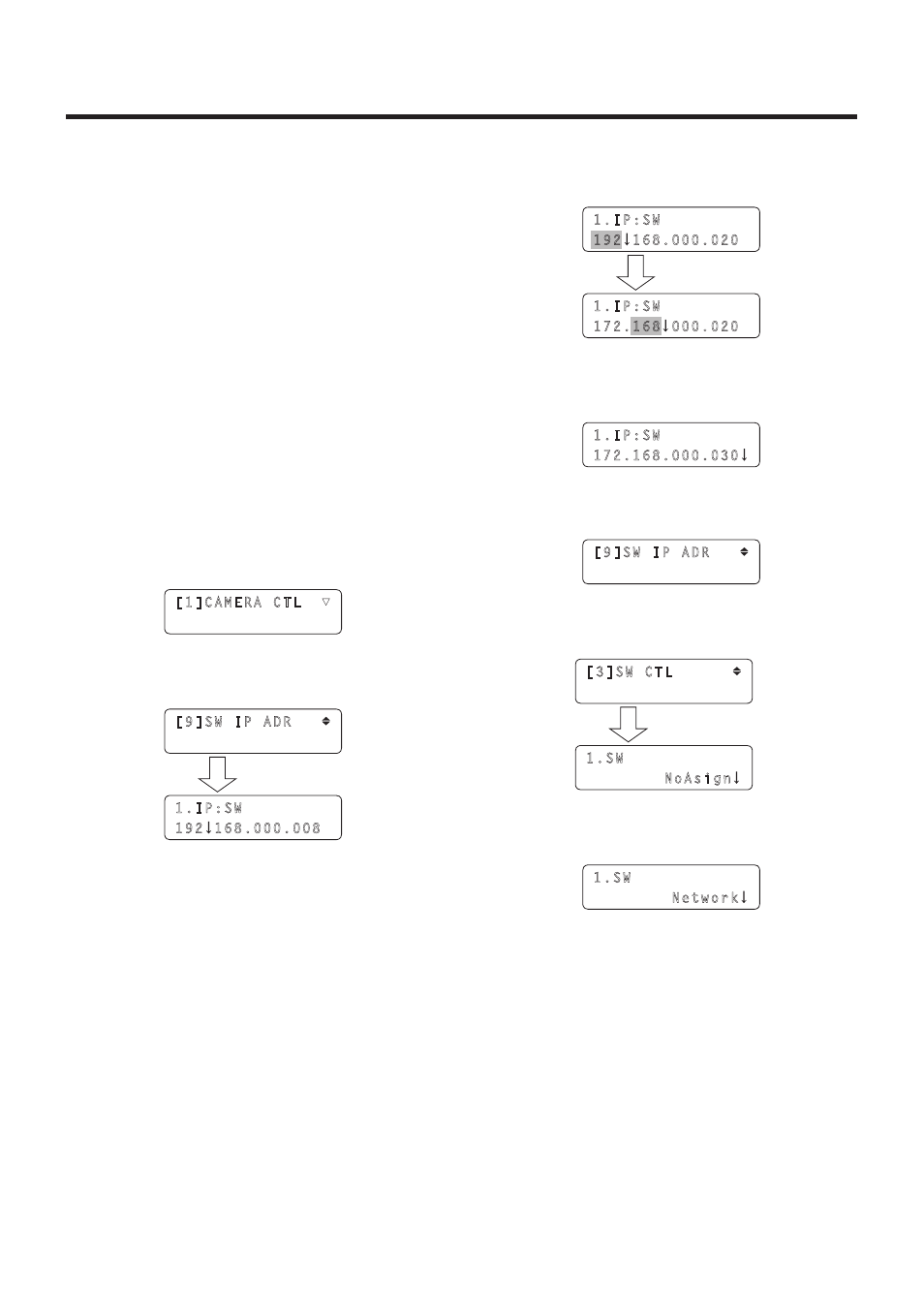

[1]CAMERA CTL ▼
3
Turn the F1 dial, display the SW IP ADR menu,
and press the F1 dial.
1.IP:SW
192 168.000.008
[9]SW IP ADR
Press the F1 dial.
4
Turn the F2 dial, select the IP address, and then
press the F2 dial to enter the selection.
Set the IP address which has been set in the switcher.
1.IP:SW
192 168.000.020
1.IP:SW
172.168 000.020
Turn the F2 dial, and then press
it.
Input the IP address in four blocks of numerals.
When input advances to the last block and the F2 dial is
pressed, the IP address is entered.
1.IP:SW
172.168.000.030
5
Press the EXIT button.
Operation now returns to the SW IP ADR menu.
[9]SW IP ADR
6
Turn the F1 dial to display the SW CTL menu,
and press the F1 dial.
1.SW
NoAsign
[3]SW CTL
Press the F1 dial.
7
Turn the F2 dial to select “Network”, and then
press the F2 dial to enter the selection.
1.SW
Network
