7
06-14-07
Appendix A: Known Incompatible Vehicles
Appendix B: Known Incompatible Aftermarket Head Units
Appendix C: Head Units That Require IR Extended Mode On
9HKLFOH
Make(s) Year(s) Model(s)
%0: All All with factory-activated cellular phones
All with 5-volt SWC data wire at the steering column
2002-200 5 5-Series w/navigation
0HUFHGHV%HQ] All All vehicles
7R\RWD All-2003 Sienna
9RONVZDJHQ 2002-up All vehicles
Head Unit
Make(s) Model(s)
Sony XAV-7W, CDX-MP80, CDX-MP70, CDX-M850MP, CDX-
(or any Sony with HiR remotes:
ex. RM-X110, 112, 131 145A
and 143A M3DI, CDX-M800, CDX-CA900X, MEX-5D1, MEX-1HD,
CDX-M730, CDX-M770, CDX-M7815X, CDX-M620, CDX-
M670, CDX-CA850X, CDX-M9905X and CDX-CA860X
Denon Unknown
Delphi XM SKYFI
Terk XM Commander
JVC stereos that use the RM-RK230 remote
Head Unit
Make(s) Model(s)
Pioneer AVX-P7300DVD / AVXP7000CD / AVXP7000 / AVMP700R
AVMP800R / AVMP900R / GEXP7000TV
Rockford Fosgate All Head Units

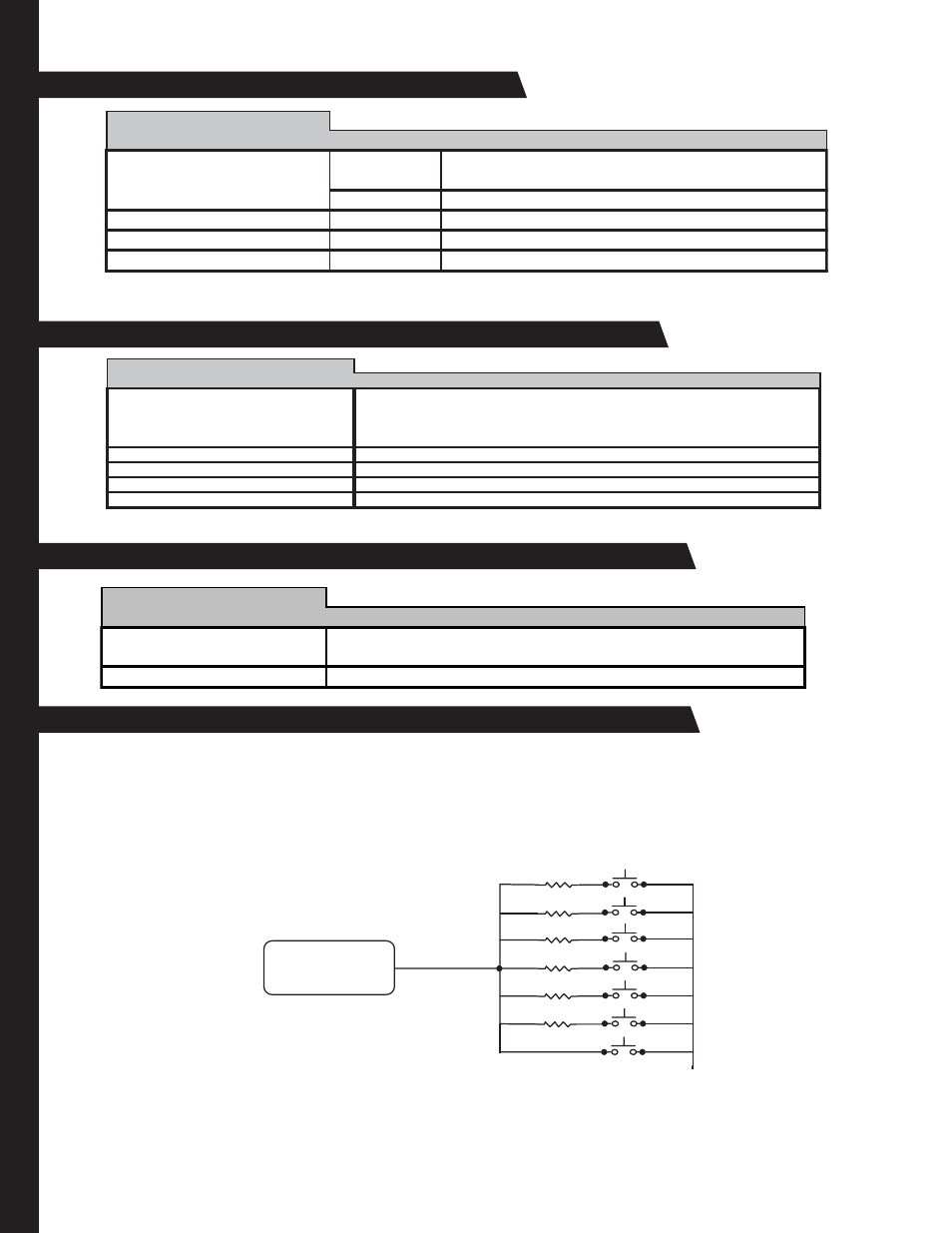

Steering Wheel
Interface
Connect SWI white
wire to resistors
47
100
150
560
1000
1500
47 = yel, vio, blk
100 = brn, blk, brn
150 = brn, grn, brn
560 = grn, blu, brn
1000 = brn, blk, red
1500 = brn, grn, red
3900 = org, wht, red
5100 = grn, brn, red
Some vehicles have a seperate wire for each of the steering wheel buttons. Use this resistor kit for the steering wheel
push buttons that do not already have a resistor network connected to them. Examples are Nissan and Harley Davidson
motorcycles.
Connect a resistor to each side of a push button and connect the other ends of the resistor all together. Connect the SWI-
X to these resistors. On the Harley Davidson, one button can be connected directly to the SWI-X.
By putting two or more resistor in series, you can come up with additional values. Ex. 150 + 1000 + 1500 = 2650ohms.
Appendix D: Resistor Kit
