Other connections 11
65
En
English
Français
Deutsch
Nederlands
Italiano
Español
• Use a 3-ringed miniplug SR+ cable
1
to
connect the CONTROL IN jack of this receiver
with the CONTROL OUT of your plasma
display.
Before you can use the extra SR+ features, you
need to make a few settings in the receiver. See
The Input Assign menu on page 66 for detailed
instructions.

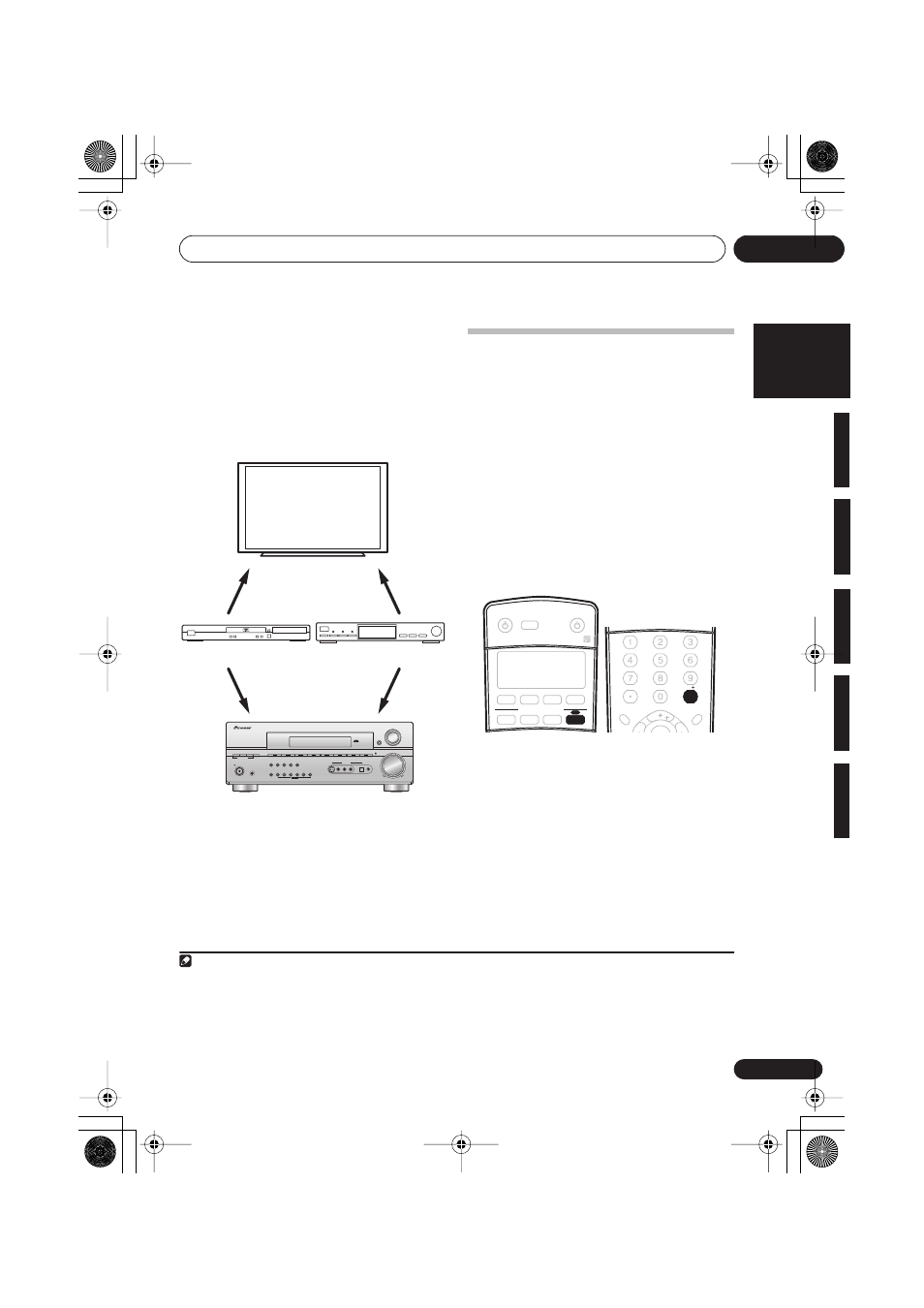

To make the most of the SR+ features, you
should connect your source components (DVD
player, etc.) in a slightly different way to that
described in this chapter. For each
component, connect the video output directly
to the plasma display, and just connect the
audio (analog and/or digital) to this receiver.
Using the SR+ mode with a
Pioneer plasma display
When connected using an SR+ cable, a
number of features become available to make
using this receiver with your Pioneer plasma
display even easier. These features include:
• On-screen volume display.
• On-screen display of listening mode.
• Automatic video input switching on the
plasma display.
• Automatic volume muting on the plasma
display.
2
See also The Input Assign menu on page 66 for
more on setting up the receiver.
1 Make sure that the plasma display and
this receiver are switched on and that they
are connected with the SR+ cable.
See Using this receiver with a Pioneer plasma
display above for more on this.
2 To switch SR+ mode on/off, press
RECEIVER , then the SR+ button.
The front panel display shows SR+ ON or OFF .
Note
1 • The 3-ringed SR+ cable from Pioneer is commercially available under the part number ADE7095. Contact the Pioneer Cus-
tomer Support division for more information on obtaining an SR+ cable (you can also use a commercially available 3-ringed
mini phone plug for the connection).
• If you connect to a Pioneer plasma display using an SR+ cable, you will need to point the remote control at the plasma dis-
play remote sensor to control the receiver. In this case, you won’t be able to control the receiver using the remote control if you
switch the plasma display off.
DVD player
This receiver
Pioneer plasma
display
Satellite receiver, etc
VIDEO
INPUT 1
VIDEO
INPUT 2
TV/SAT
AUDIO IN
DVD
AUDIO IN
S-VIDEO VIDEO INPUT DIGITAL IN VIDEO L AUDIO R SETUP MIC MCACC
UP DOWN
MULTI JOG
MASTER
VOLUME
ENTER
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
STANDBY/ON
PHONES
DVD/LD TV/SAT DVR/VCR VIDEO CD CD-R/TAPE/MD TUNER AUX STANDARD
ACOUSTIC EQ
ADVANCED SURR ST/DIRECT /AUTO SURR SIGNAL
SELECT
LISTENING MODE
QUICK SETUP SYSTEM SETUP RETURN
SPEAKERS
BAND TONE
INPUT ATT EXTENDED MODE
TUNING /STATION TUNER EDIT
FL DIMMER
MULTI JOG
2 The automatic volume muting feature is enabled separately; see The Input Assign menu on page 66.
RECEIVER
MULTI CONTROL
SOURCE INPUT
SELECT
DVD/LD TV/SAT DVR/VCR TV CONT
CD CD-R/TAPE TUNER RECEIVER
+10
FL DIMMER SR
DISC
TUNE
ST ST
ENTER
D.ACCESS
TOP MENU
DTV MENU
CLASS
MENU
