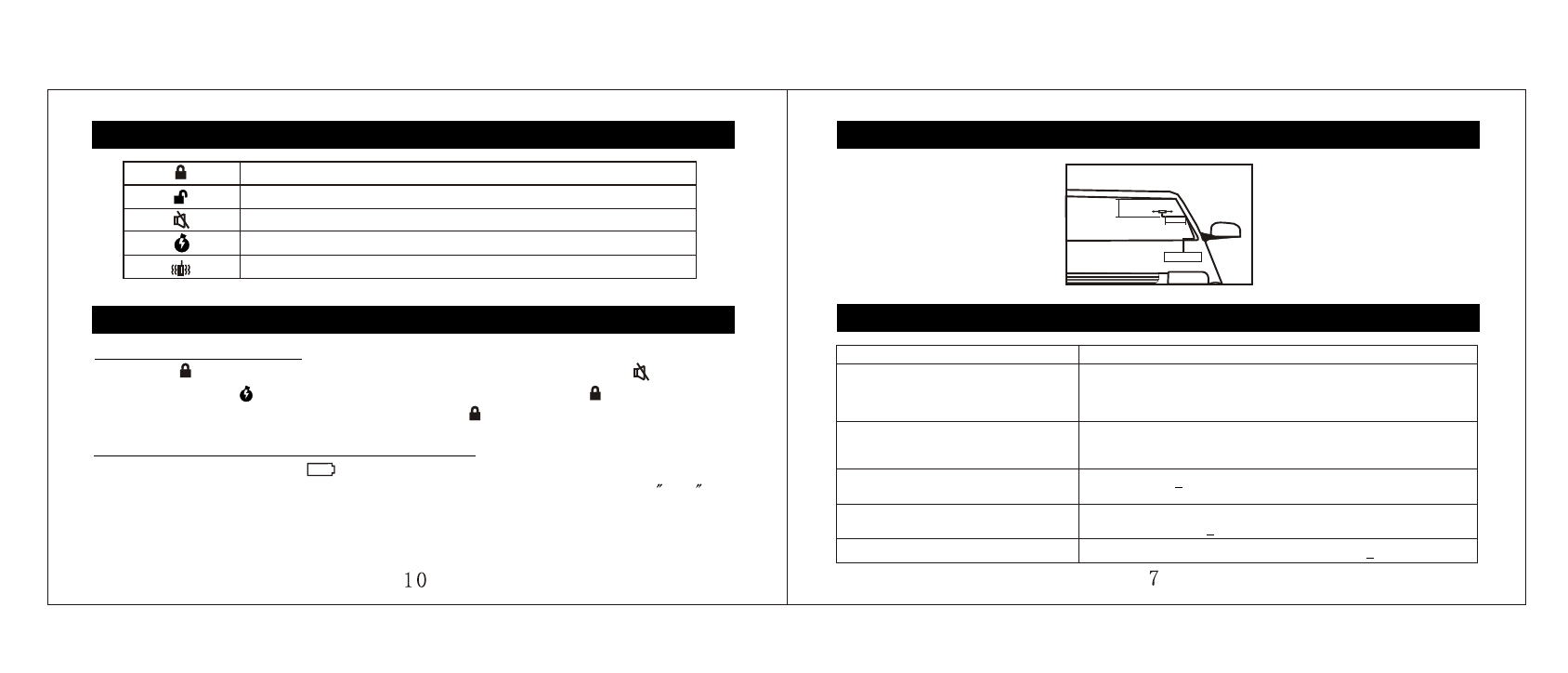

ANTENNA INSTALLATION POINTS
TROUBLESHOOTING
5-10cm
5-10cm
Mainframe Mainframe
Antenna frequency
head location
TROUBLE SHOOT
1. Siren chirp continuously cannot be
deactivating by transmitter after the
installation of the control module.
1A. Please check if the electrical outlets are mistakenly plugged
Problem with the connection
Fuse of control module blow
Is the main module matched with the transmitter?
5A. Please check the connection see page 5 .
2. When the alarm is triggered the
siren does not actives.
2A. Please check if there is something wrong with the
siren, check the connection between main unit and
siren.
3. Status LED doesn't work.
3A. See page 4 Is the LED plugged into the correct
socket?
4. Door locks operate backwards.
4A. This unit has easily-reversed lock/unlock output.
Recheck page 4 to see if you have reverse these.
5. Door locks doesn't work.
COMMOM BUTTON USED BY 3508 TRANSMITTER
ARM & LOCK THE DOORS
DISARM & UNLOCK THE DOORS
ARM & LOCK THE DOOR SIRENTLY
ENGINE START
VIBRATION ON/OFF
ADJUST REALTIME CLOCK:
Keep press
button 8 seconds until the display show the hour flashing. Use button to
adjust hour and use button to adjust minute. When it is done, press button to exit.
NOTE: You can exit a mode anytime by pressing the Button.
TRANSMITTER OPERATION
REPLACE THE BATTERY OF YOUR TRANSMITTER:
icon will flashing at display and you hear beeps sound.
Transmitter battery has to be change. Your two way transmitter is powered by an AAA
1.5V alkaline battery.
NOTE: When the battery weekends, operating range will be reduced and the back light will
dim.
When transmitter battery low,
