P A N E L S
4
Front & Rear Panels
1.
Offset:
Selects 12.5 or 25 kHz offset.
2.
Ch. Mode:
Selects Standard, HRC or IRC frequencies. Set in
standard position unless your cable company re-
quires HRC or IRC offset.
3.
Channel Select:
Press button to select lower channel number
4.
Channel Select:
Press button to select higher channel number.
5.
CATV/TV
Selects cable or off-air modes. "Dot" appears
on display when in CATV mode.
6.
Power Cord:
Connect to 120 Vac, 60Hz electrical outlet.
7.
Display on/off switch:
Set this switch to on to illuminate seven segment
display on front panel and to activate front panel
controls.

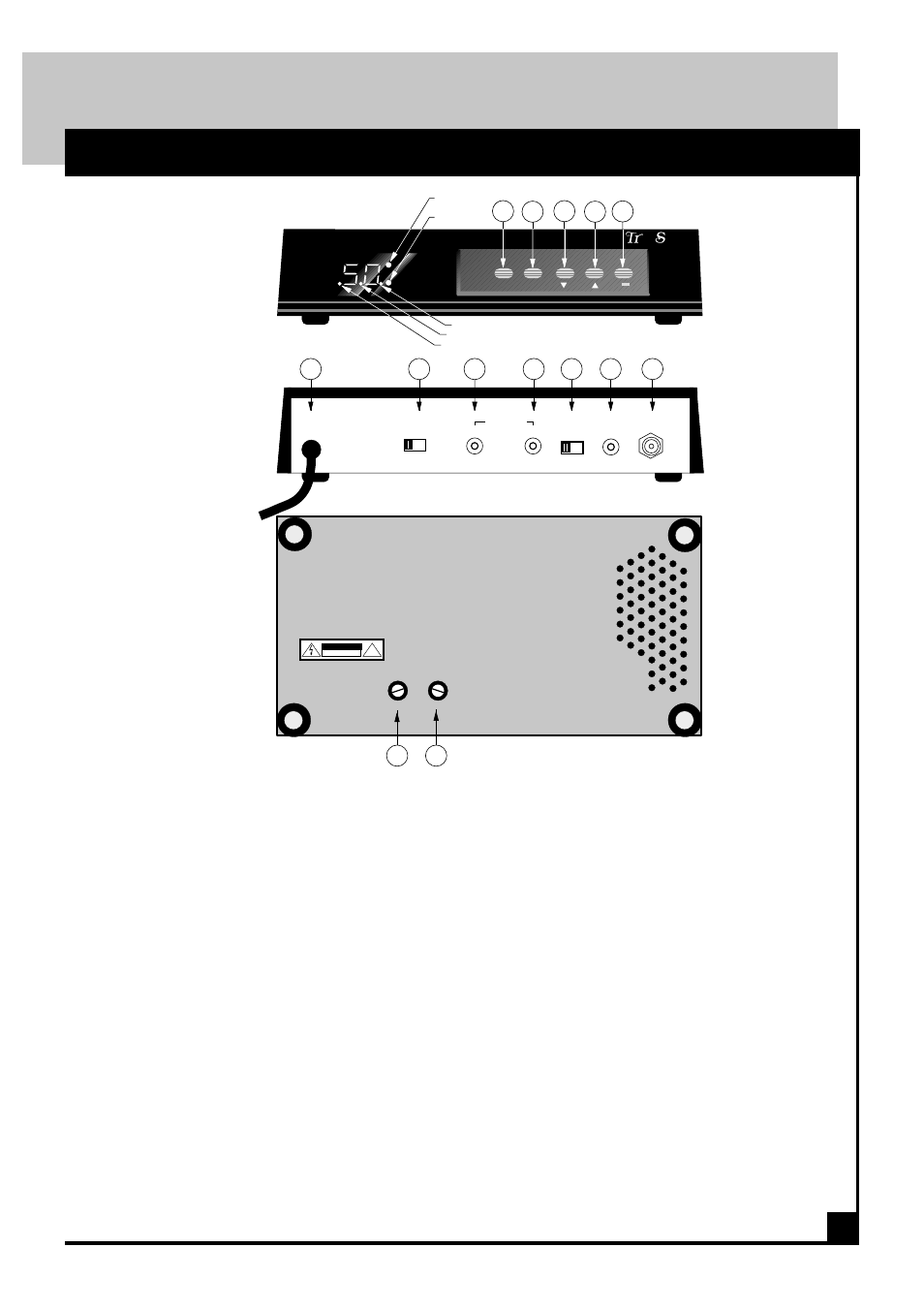

Front Panel
Rear Panel
Bottom Panel
8.
Right Audio In:
Accepts a balanced audio output from satellite
receiver, VCR, cable converter, etc.
9.
Left Audio and Baseband In:
Accepts a balanced audio output from satellite
receiver, VCR, cable converter, etc.
10.
Left Audio/Base Band Select:
If stereo sound is desired a BTSC stereo generator
must be used. Set slide switch to B.B. and connect
left audio to the composite out of the generator.
See page 6.
11.
Video Input:
Accepts video output from satellite receiver , VCR
or cable converter.
12.
RF Out:
To TV or distribution system.
13.
Video Adjust:
Used to set video modulation level. Adjust for
best picture.
14.
B.B. Adjust:
Used to set audio modulation level.
Adjust for desired sound level.
