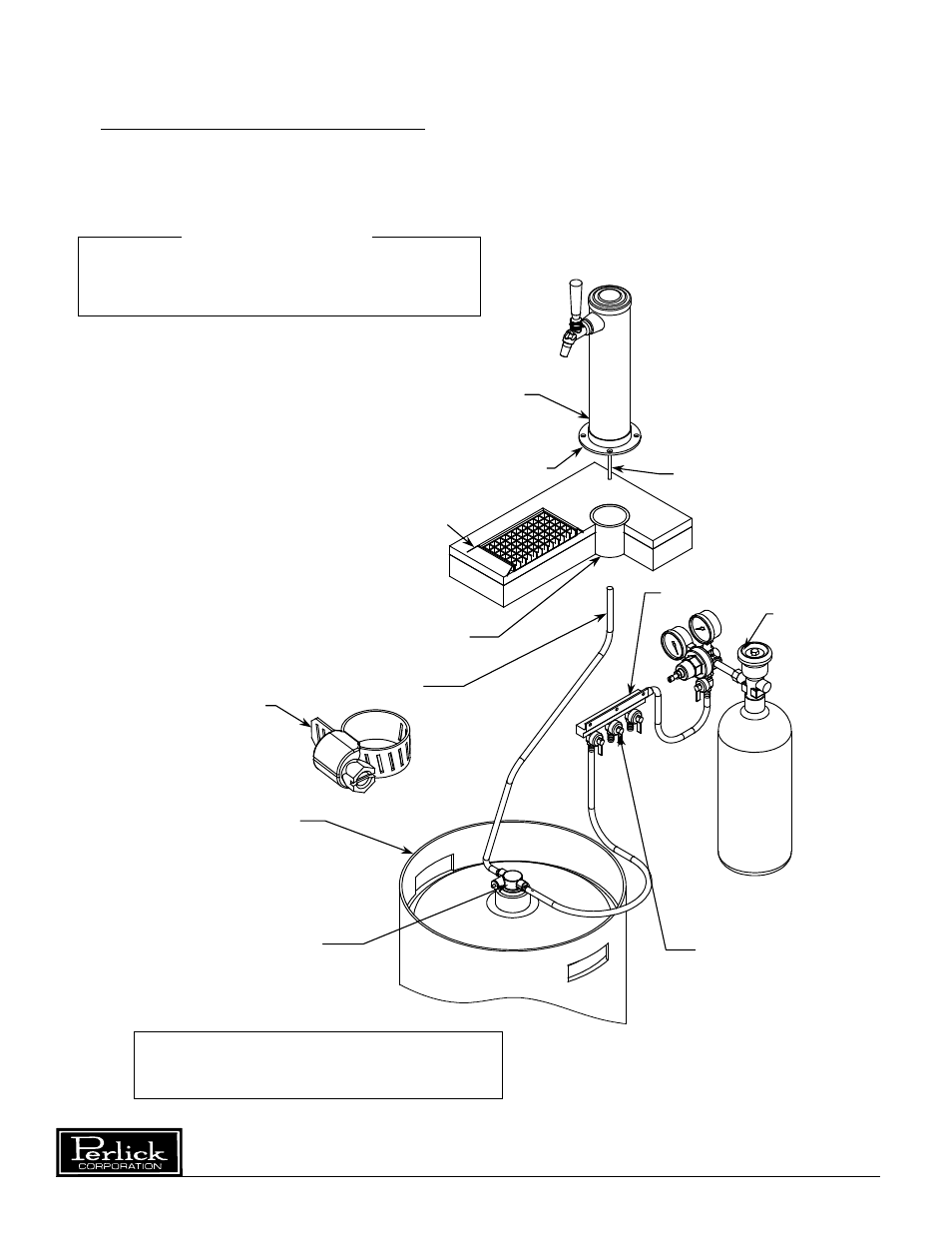

KEG
KEG COUPLER
CO2 TANK &
REGULATOR
DISPENSING HEAD
APPLY SILICONE TO
BOTTOM PERIMETER
FAUCET LEAD
DRAINER
FLANGE SLEEVE
AIR DISTRIBUTOR
BEER CONNECTION
DISTRIBUTOR IS ONLY ON
MULTIPLE KEG UNITS, EACH
KEG IS CONNECTED TO A
VALVE ON THE AIR
DISTRIBUTOR. SINGLE KEG IS
CONNECTED DIRECTLY TO THE
REGULATOR
HOME TAPPED CABINET
INSTALLING DISPENSING HEAD AND FAUCET
Wash tapping devices thoroughly. Flush beer and faucet
lines and tapping device (keg coupler) with fresh water
BEFORE YOU BEGIN
1) Apply silicone around the base of the
dispensing head to seal it to the top.
Align the dispensing head over the
mounting holes on the cabinet top and
secure using screws.
Wipe off excess silicone to
complete the seal.
2) Attach faucet to dispensing head using
spanner wrench to tighten coupling.
Attach faucet handle to the faucet.
*NOTE
Image does not accurately reflect positions of the different elements
within the unit. Positions and hose lengths shown are to clearly
illustrate proper connection methods only.
ALL HOSE CONNECTIONS
USE WORM-DRIVE HOSE
CLAMPS
View enlarged for clarity
Form No. Z2259
Rev. 1.17.05
5
