■ HOW TO DISASSEMBLE MAIN UNIT.
3 DISASSEMBLY/ASSEMBLY INSTRUCTIONS

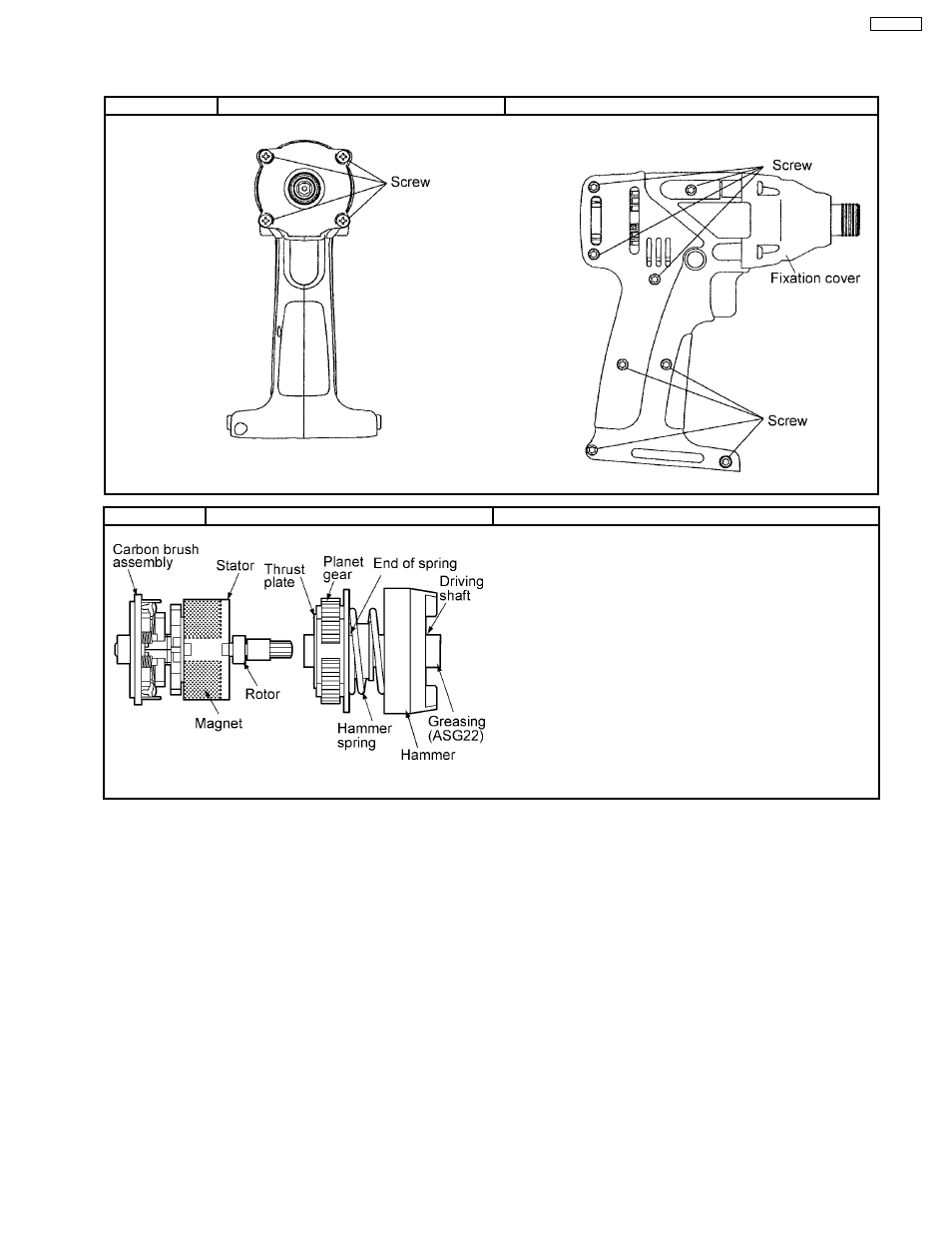

Ref. No. 1A Procedure 1A Removal of the Fixation cover and Housing.
1. Remove four screws tightened with the fixation cover and take it
out.
2. Remove eight housing screws.
Ref. No. 1B Procedure 1A → → → → 1B Removal and attachment of the Motor.
(Removal)
1. Take out the motor with the driving block from housing.
2. Separate the motor assembly from the driving block.
3. Take out the motor rotor assembly from the motor stator.
NOTE :
Make sure not to damage the magnet by motor rotor.
(Attachment)
1. Insert the motor rotor assembly into the stator.
NOTE :
Make sure that the motor stator has their own direction for proper
assembly. If it is assembled wrongly, the rotation may be the
opposite way.
3
EY6506-U1
