7
Introduction

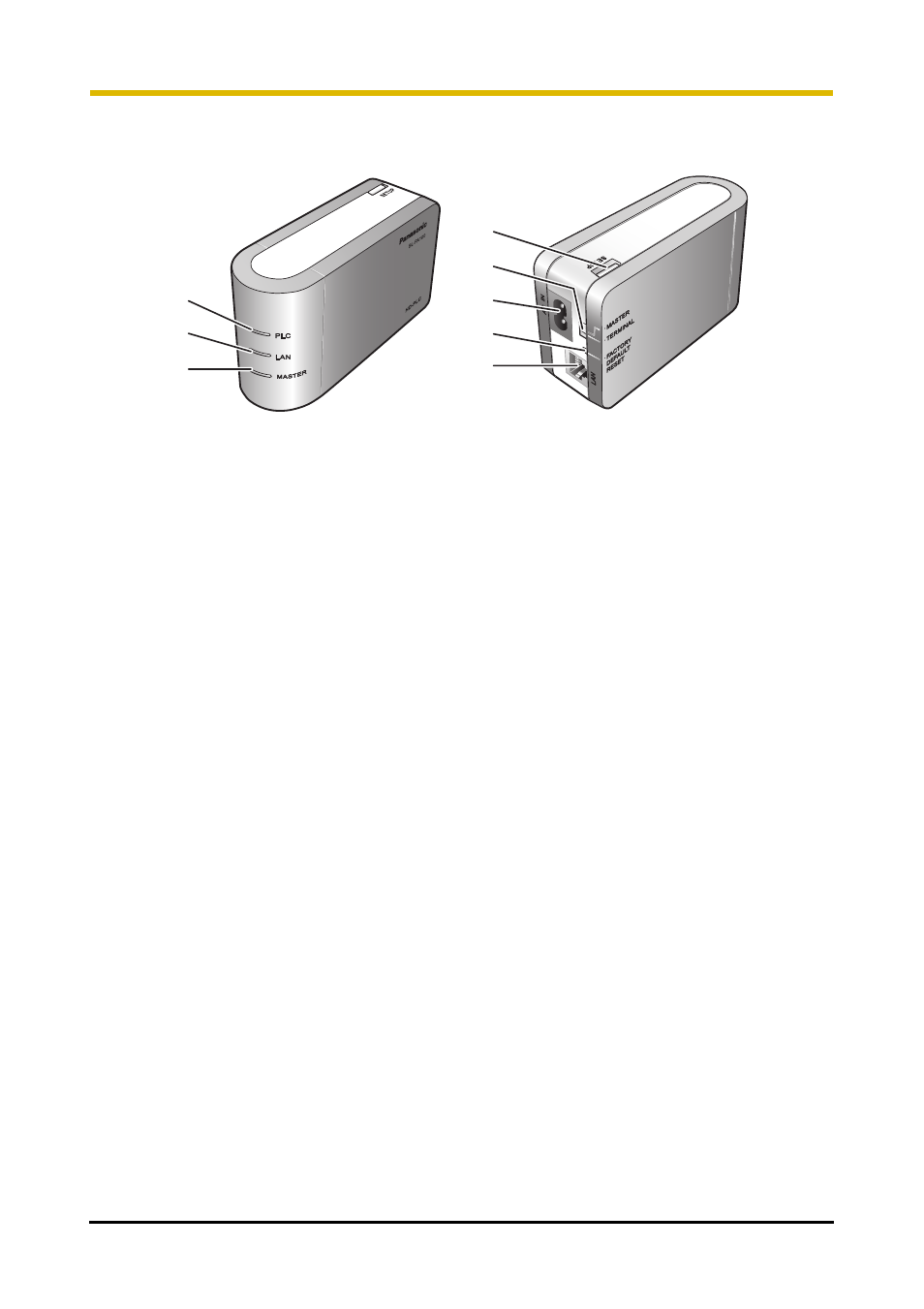

Main unit
(1) PLC Indicator
Lights to indicate that the adaptor is connected to the HD-PLC network. For
more information, see page 12.
(2) LAN Indicator
Lights when a LAN cable is connected to the adaptor, and flashes when
data is being sent or received. For more information, see page 12.
(3) MASTER Indicator
Lights when the adaptor is configured as the master. For more information,
see page 12.
(4) SETUP Button
Used to register the adaptor (see page 8) or test the terminal’s network
speed (see page 11).
(5) Mode Selector
The position of this selector during registration (see page 8) determines
whether the adaptor is configured as the master or as a terminal.
(6) AC IN
Connects the adaptor to AC power as well as to the HD-PLC network.
(7) FACTORY DEFAULT RESET Button
Used to reset the adaptor and erase its registration (see page 13).
(8) LAN Jack
Connects the adaptor to a network device, such as a broadband router, hub,
computer, etc. (see page 10).
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
