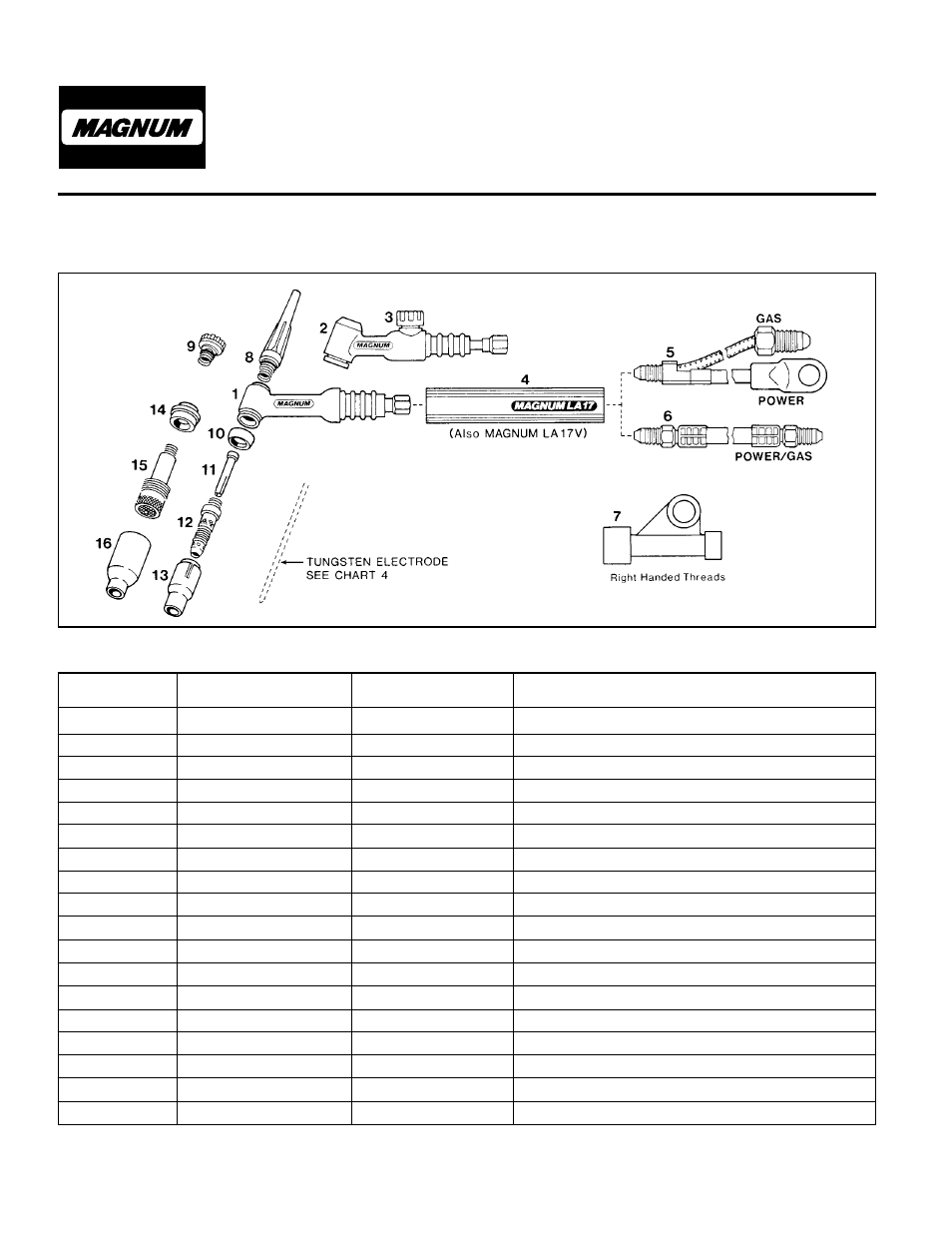

LA-17, LA-17V MODELS AIR-COOLED 150 AMPS
TORCH/REPLACEMENT PARTS
Item
Part Industry
Description
No. Reference
1 S19259-1 — Torch body with gaskets, LA-17
2 S19259-2 — Torch body with gaskets, LA-17V
3 S19515-1 VS-2 Valve knob with “O” ring, 10 Pak
4 S19511-1 — Torch handle, LA-17, LA-17V
5 S19512-2 57Y01-2 Power cable and gas, 12 1 /
2
’ (3.8m)
5 S19512-4 57Y03-2 Power cable and gas, 25’ (7.6m)
6 S19512-1 57Y01R Power cable with gas, 12 1 /
2
’ (3.8m)
6 S19512-3 57Y03R Power cable with gas, 25’ (7.6m)
7 S19257-3 105Z57 Power cable adapter, LA-17, LA-17V
8 S19514-1 57Y02 Back cap, long, with “O” ring, 10 Pak
9 S19514-2 57Y04 Back cap, short, with “O” ring, 10 Pak
10 S19515-7 18CG Cup gasket, LA-17, LA-17V, 10 Pak
11 See Chart 5 Collet
12 See Chart 5 Collet body
13 See Chart 6 Alumina nozzle
14 S19515-8 54N01 Gas lens insulator, 10 Pak
15 See Chart 5 Collet body gas lens
16 See Chart 6 Alumina nozzle gas lens
