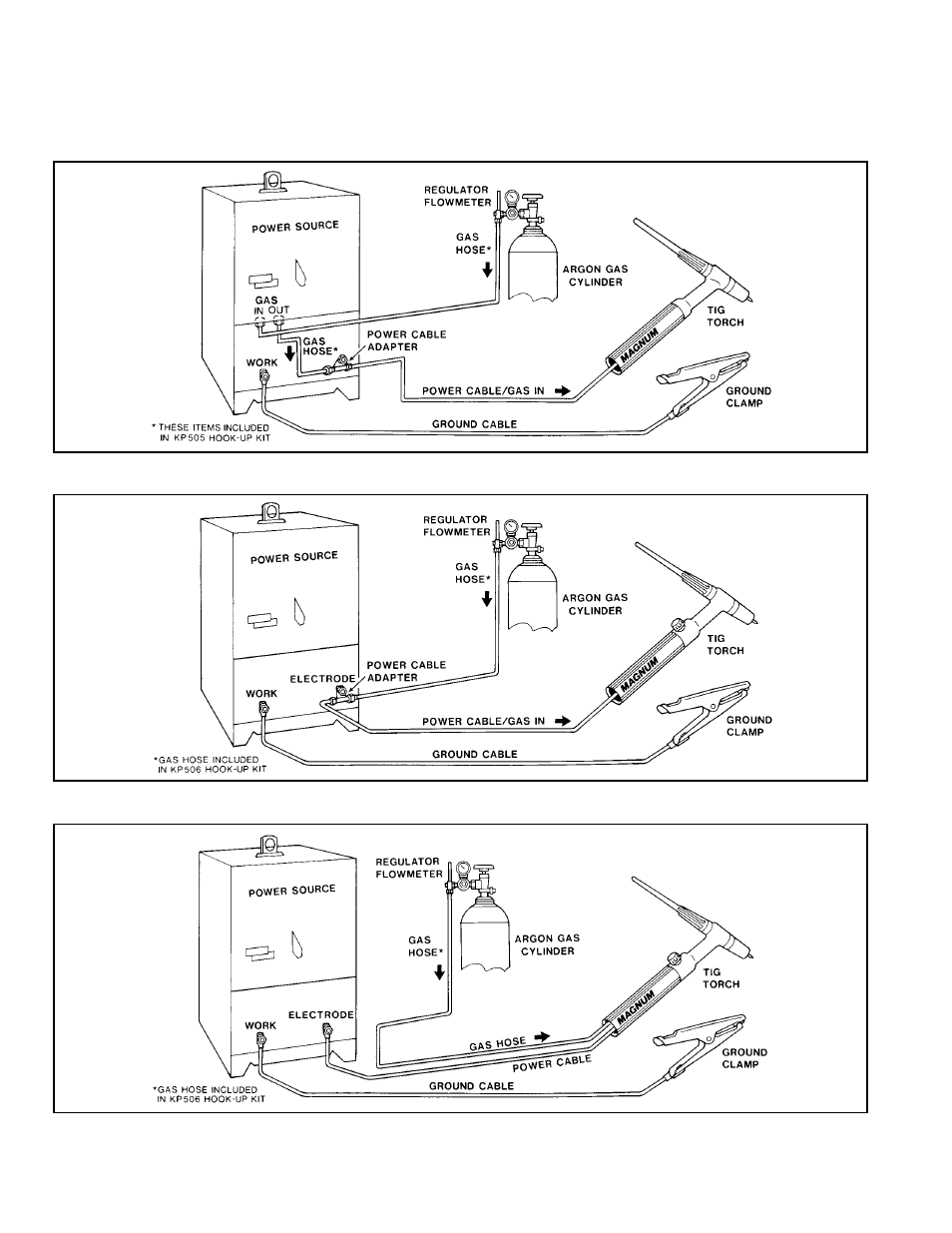

CONNECTION DIAGRAMS

POWER SOURCE GAS VALVE, 1 PIECE POWER CABLE

TORCH GAS VALVE, 1 PIECE POWER CABLE

TORCH GAS VALVE, 2 PIECE POWER CABLE

Note: Refer to the manufacturer’s power source operating manual for recommended installation practice.
