Detailed Installation Procedure

2-13

Step 3.

To connect more than one external SCSI device to the host
adapter, you must chain them together with shielded external
SCSI cables.

Figure 2.11

shows an example of these chained

connections.

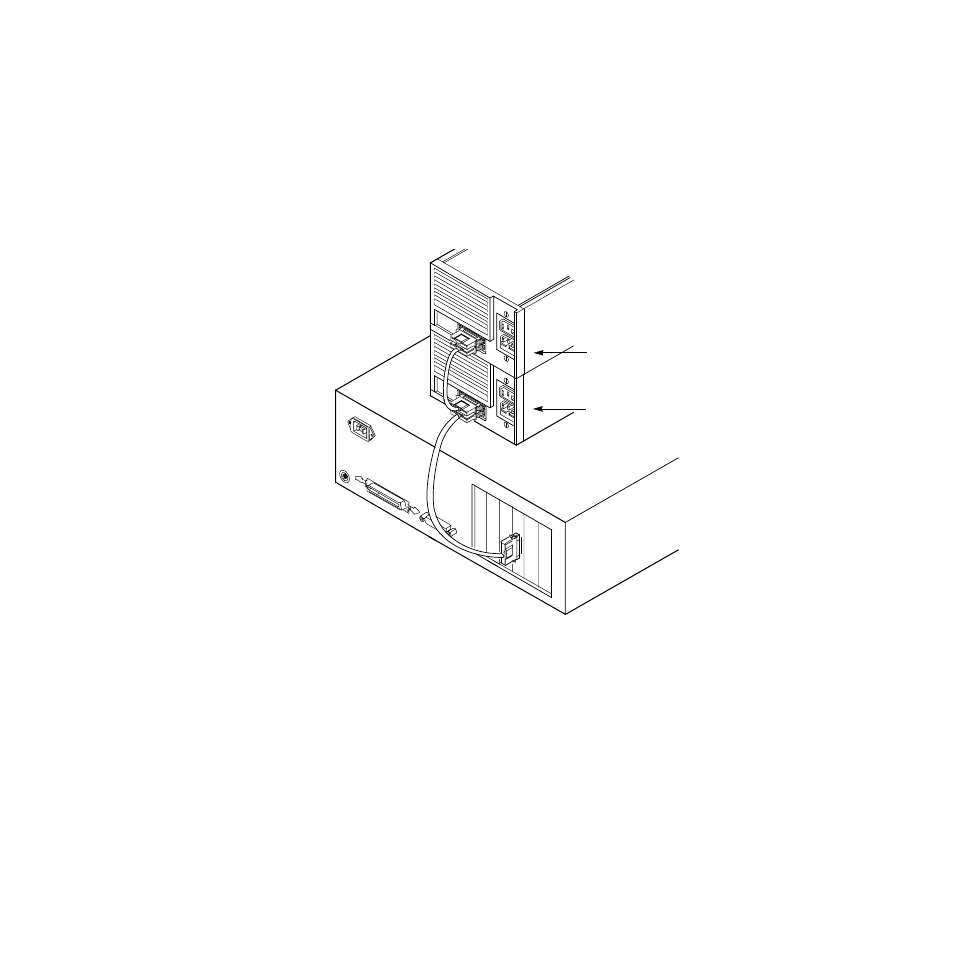

Figure 2.11 Multiple External SCSI Devices Chained Together

Termination Enabled

Termination Disabled
