Detailed Installation Procedure 2-11
2.2.3.2 Making External SCSI Bus Connections
This section provides step-by-step instructions for making external SCSI
bus connections:
Step 1. To connect external SCSI devices to the LSI8751D, plug the 68-
pin connector on one end of a shielded external SCSI cable
(see
Figure 2.3 ) into the host adapter connector J3 (see
Figure 2.1 ).
This connector is now bracketed to the back panel of your
computer.

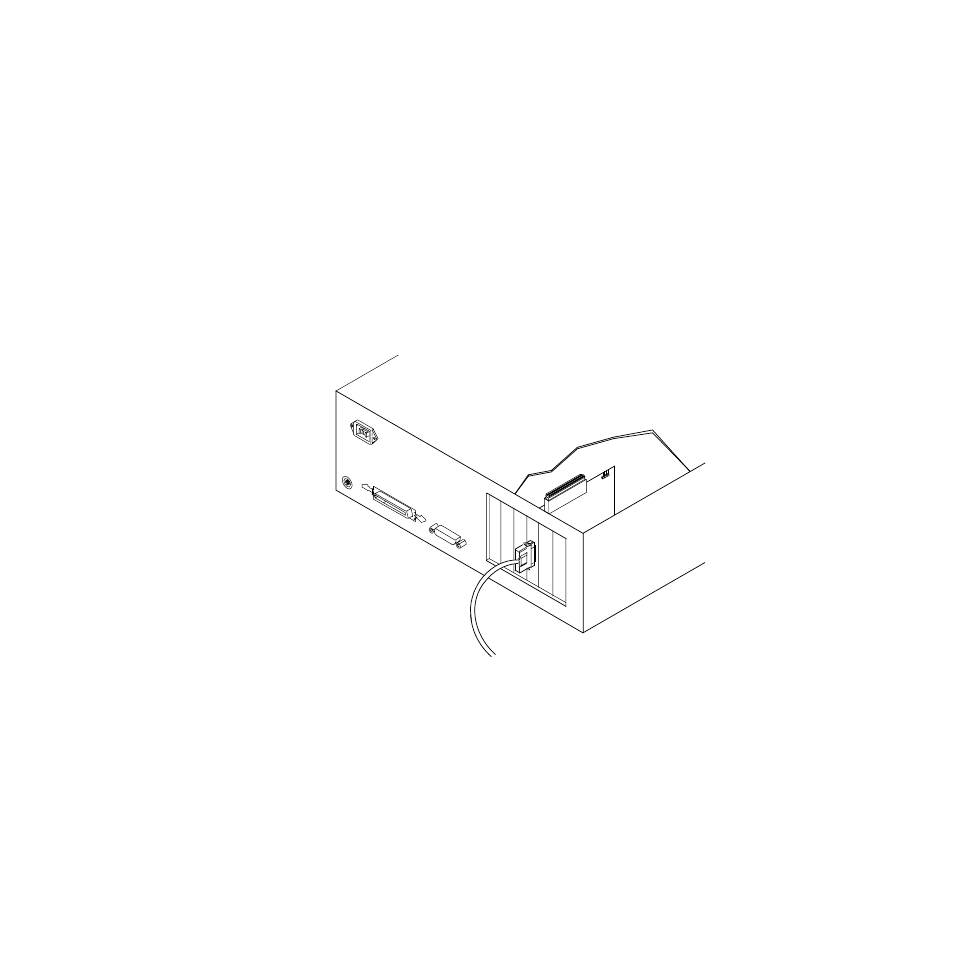

Figure 2.9 shows how this connection is made.
Figure 2.9 External Cable to Host Adapter
