Optional Equipment
© Travis Industries
100-01166
4040907
Surround Panels

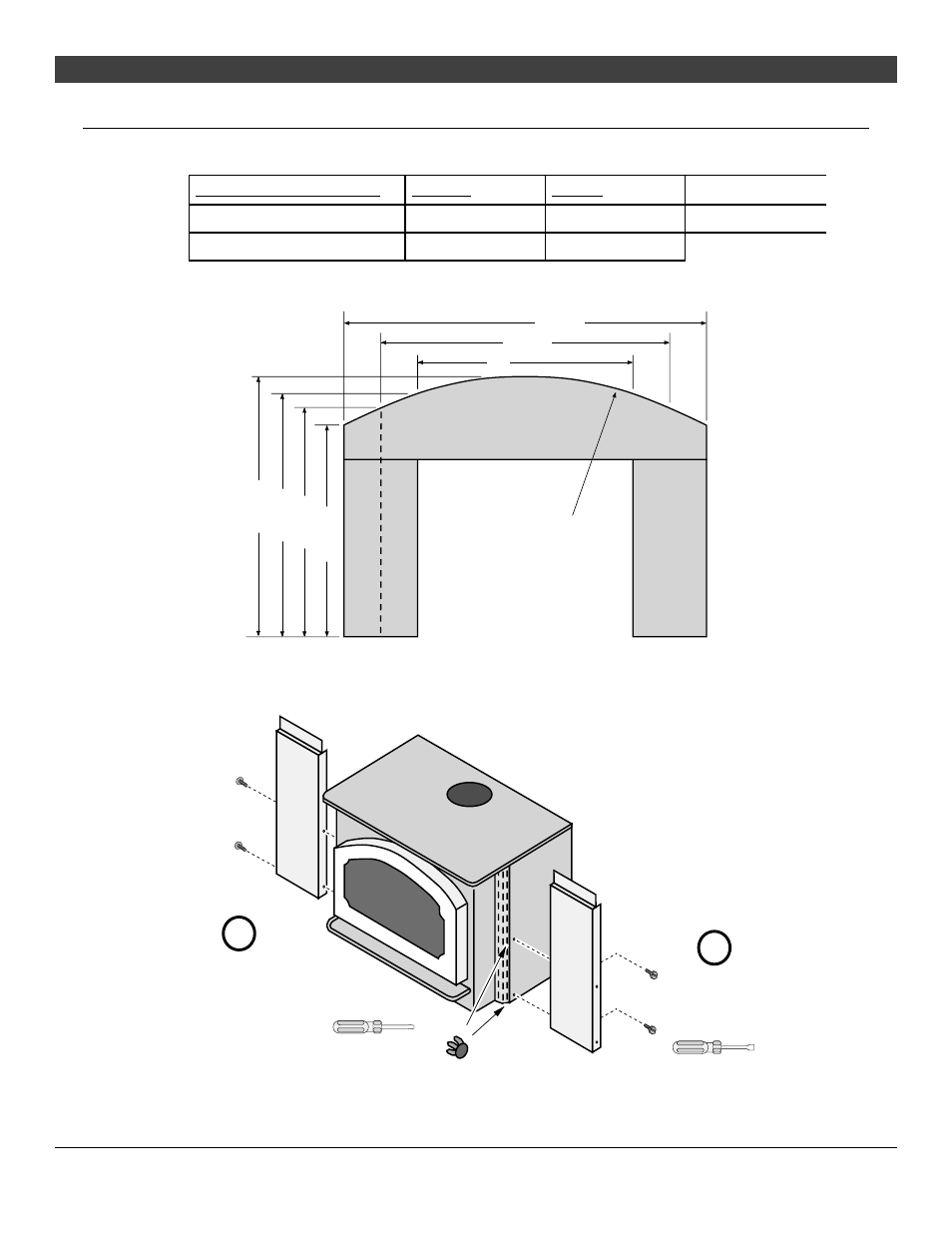

Rectangular Panels:
SURROUND PANEL SIZE
HEIGHT
WIDTH
8"
28-1/4"
40-1/8"
10"
30-1/4"
44-1/8"
Arched Panels (Part # 99300108)
40-1/4”
31-3/4”
24”
Radius = 40-3/4”
28-3/4
”
23-1/2
”
26-3/4
”
25-1/4
”
Installation Instructions
1.
With the insert 12” from the fireplace, install the side surround panels (see the directions below).
Attach the side
surround panels
with the included
screws.
b
a
5/16" Nutdriver
Pry the button plugs
from both sides of the
insert. Pre-thread the
holes on the insert with
the screws included in
the surround panel kit
(both sides).
Standard
Screwdriver
