Components of server models with eight 3.5-inch hard disk drive bays

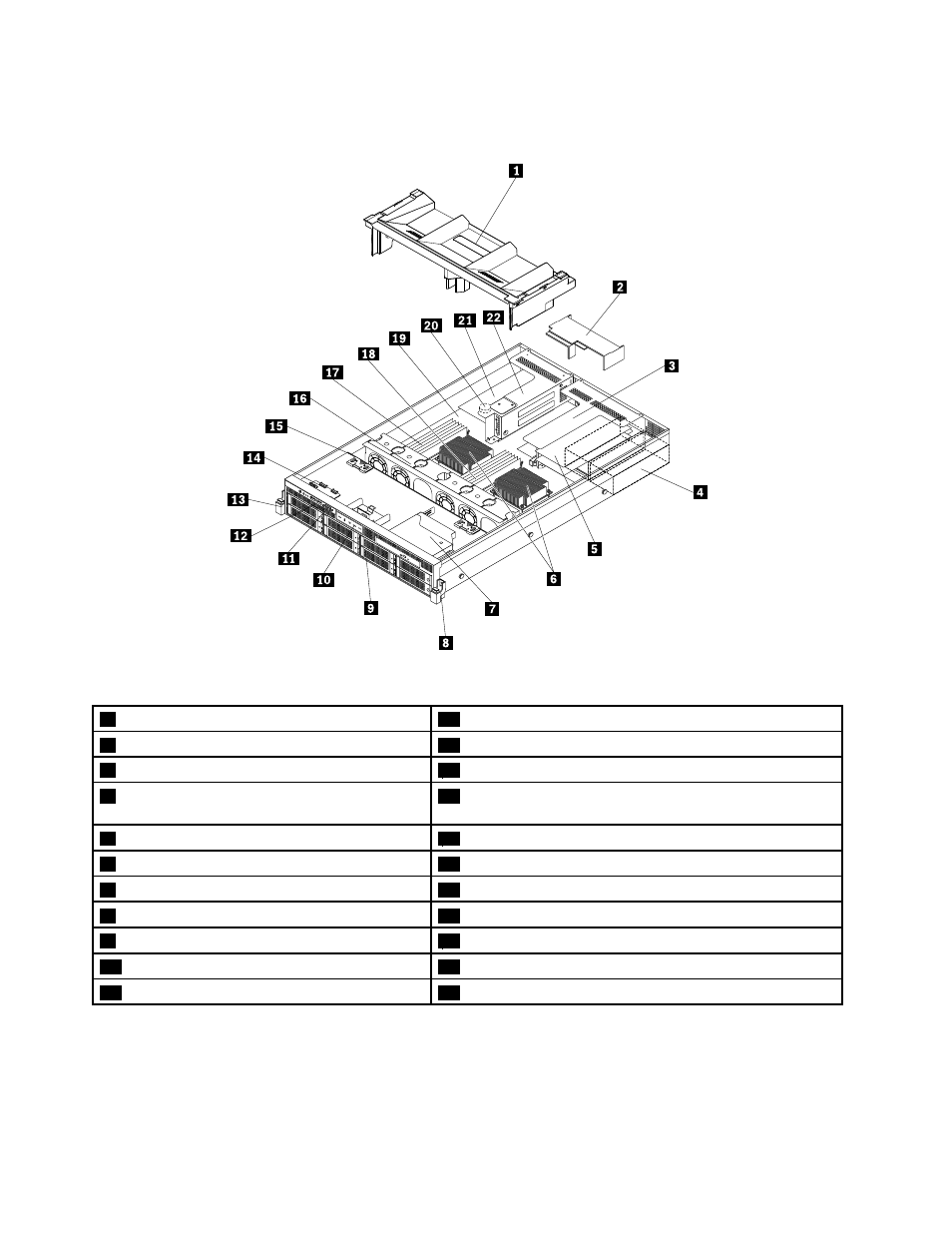

Figure 20. Components of server models with eight 3.5-inch hard disk drive bays
1 Cooling shroud 12 Pull-out information card
2 Power supply cooling shroud 13 Rack handle (left)
3 Riser card assembly 2 14 Front panel board
4 One or two hot-swap redundant power supplies 15 Backplane for server models with eight 3.5-inch hard disk
drive bays
5 PCI Express card(s) (available in some models) 16 System fans (4)
6 Heat sink(s) with microprocessor(s) underneath 17 CPU1 DIMMs (vary by model)
7 Slim optical drive (available in some models) 18 CPU2 DIMMs (vary by model)
8 Rack handle (right) 19 System board
9 3.5-inch hard disk drive area 20 System board battery
10 Diagnostic module (varies by model) 21 PCI Express card(s) (available in some models)
11 VGA DB-15 connector 22 Riser card assembly 1
32 ThinkServer RD430 User Guide
