Lenovo RD430 User Manual
Page 108
For more information about the memory modules in your specific server model, use the Setup Utility
program. See “Viewing information in the Setup Utility program” on page 59.
For a list of the supported ThinkServer memory module options, go to:
The following illustration shows the locations of all memory slots on a system board that has two
microprocessors (also known as CPUs) installed.

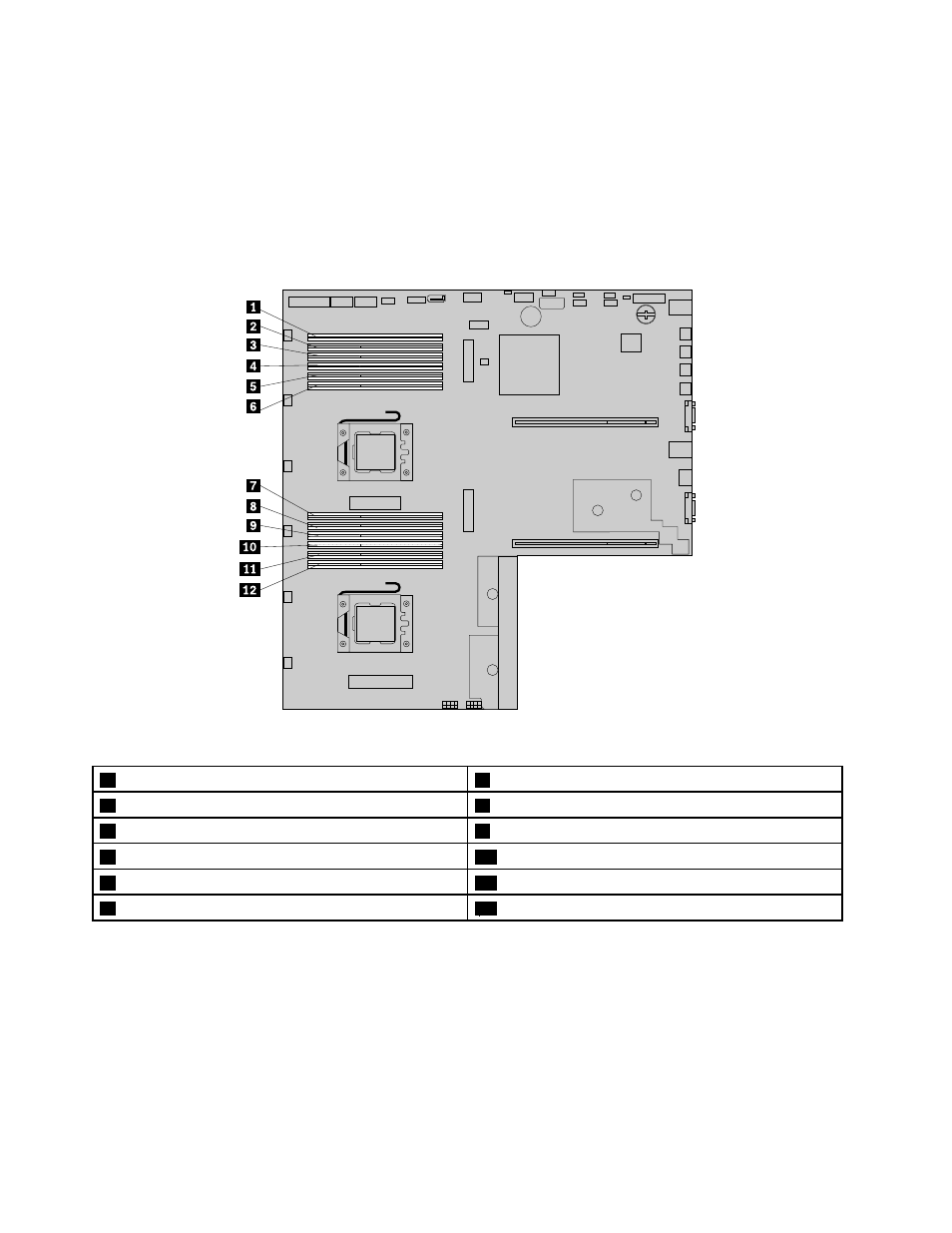

Figure 57. Memory slots on the system board
1
Memory slot (CPU1 DIMMA1)
7
Memory slot (CPU2 DIMMA1)
2
Memory slot (CPU1 DIMMA2)
8
Memory slot (CPU2 DIMMA2)
3
Memory slot (CPU1 DIMMB1)
9
Memory slot (CPU2 DIMMB1)
4
Memory slot (CPU1 DIMMB2)
10
Memory slot (CPU2 DIMMB2)
5
Memory slot (CPU1 DIMMC1)
11
Memory slot (CPU2 DIMMC1)
6
Memory slot (CPU1 DIMMC2)
12
Memory slot (CPU2 DIMMC2)
96
ThinkServer RD430 User Guide
